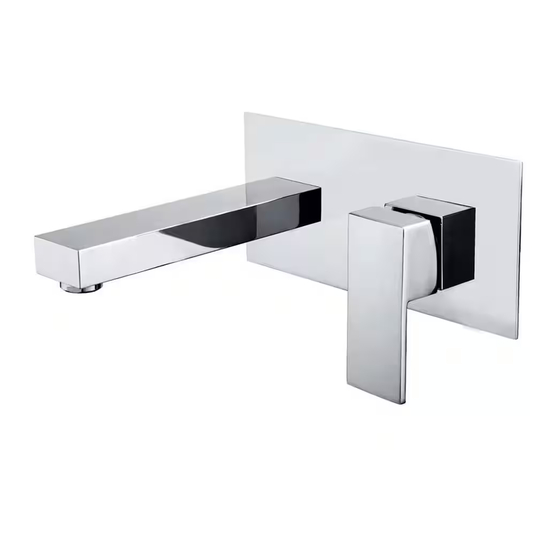

- Page 1 Version: 1.1 INSTALLATION GUIDE LEFTHAND WALL MOUNTED BATHROOM FAUCET MODEL FINISH S1389CI CHROME S1389NI BRUSHED NICKEL S1389DI MATTE BLACK S1389MGI BLACK AND BRUSHED GOLD S1389BGI BRUSHED GOLD HOT LINE: +1-866-203-0866...
-
Page 2: Before Proceeding
THANK YOU Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions. -
Page 3: Limited Lifetime Consumer Warranty
This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance. - Page 4 FUNCTIONS AND SPECIFICATION Function Bathroom Sink Faucets Feature Wall mount, Left-Hand Modern ,Contemporary Theme Configuration Vessel Finish Chrome / Nickel brushed/Matte Black/Brushed Gold Installation Holes Number of Handles Handle style Lever Faucet Total Height Adjustable Spout Reach 178mm [7”] Spout Height Adjustable Wall mounted Installation type...
- Page 5 DEMENSION FRONT VIEW OF FAUCET LEFT SIDE VIEW OF FAUCET...
- Page 6 TOP VIEW OF FAUCET...
-
Page 7: Installation Steps
Zn Alloy No.3 PHD00007XX Handle (Lever) Paking PRW23165XX Set screw SUS304 PSC05050XX Aerator PAE00010XX Fe45# PSA00002XX Allen wrench Aerator Cover HPB59-1 PAE00003XX Screw cover PSA00003XX If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 8 4. VALVE TRIM SET INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve. The mounting rack’s face should be 44mm (1-23/32”) at least and 54mm (2-1/8”) behind the finish wall surface.
- Page 9 Secure the rough-in valve to the mounting rack with screws (screws not including) 4.3 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish.
- Page 10 4.4 Apply Teflon tape on the thread of supply tube outlet and then connect to rough-in valve with elbow. Rough-in Valve thread for Hot & Cold water inlet: NPT 1/2-14[US,UA] G1/2” [UK ,EU etc.] 4.5 Install the finished wall.
- Page 11 4.6 Apply Teflon tape on the thread of nipple and then connect to rough-in valve 4.7 Remove the plastic sleeve and secure the escutcheon wall and seal the wall around the plaster shield with waterproof sealant WARNING: Failure to seal the wall can lead to possible water damage.
- Page 12 4.8 Attach the escutcheon to nipple. 4.9 Secure the spout to nipple with set screw by Allen key.
- Page 13 4.10 Place handle onto the valve stem and tighten set screws by using the Allen wrench that is provided.(Please don’t over tighten), Then attach the screw cover onto handle. ASSEMBLE FINISHED...
-
Page 14: Function Inspection
5. INSPECTION 5.1 Turn on hot and cold water supply and check all connection for ensuring no leaking anywhere. 6. FUNCTION INSPECTION 6.1 Turn on the handle, the water outflow from the spout and then turn off the handle, the water stop out flowing. 6.2 Turn right the handle, the cold water coming, on the contrary way, turn left the handle, hot water coming. - Page 15 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL, HONGKONG Factory Address: Floor 3th,No.2 ZhongXing Road,ShuiNuan City Industrial Zone,Shuikou town, Kaiping City,...
