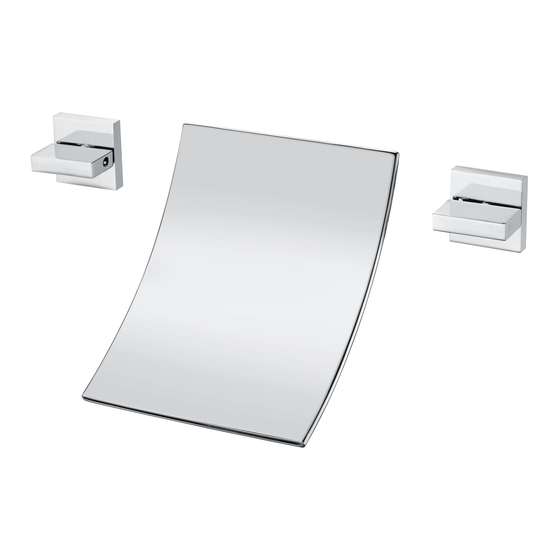

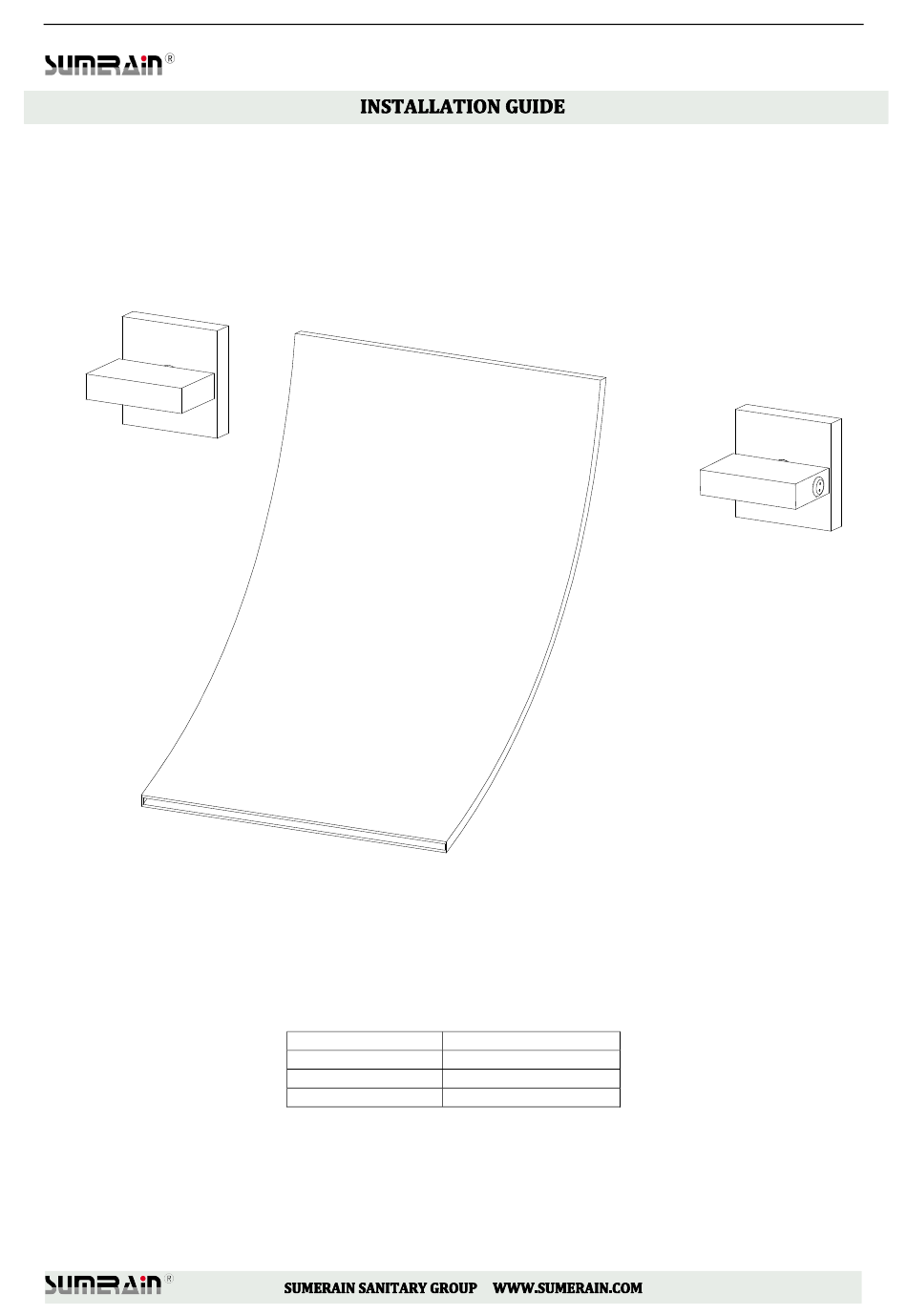

- Page 1 Version: V7.1 MUTI-FUNCTIONAL IN-WALL WATERFALL FAUCET (Application: Bathroom sink faucet and bathtub faucet) MODEL FINISH S1248CW CHROME S1248NW BRUSHED NICEKL S1248OW Oil Rubber Bronze HOT LINE: +1-866-203 0866...
- Page 2 Dear Valued Customer, SUMERAIN would like to take this opportunity to thank you for purchasing SUMERAIN products. It is our sincere hope that you are completely satisfied with your new purchase. All SUMERAIN products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow illustrated instructions.
- Page 3 This warranty covers only your SUMERAIN manufactured product. SUMERAIN warrants this product against defects in material or workmanship as follows: SUMERAIN will repair at no charge for parts only or, at its option, replace any product or part of the product that proves defective because of improper workmanship and/or material, under normal installation, use, service and maintenance.
- Page 4 Function Bathtub faucet Feature Waterfall, Wall mount Theme Modern ,Contemporary Configuration Concealed Finish Chrome/Brushed Nickel/Matte Black/Brushed Gold Installation Holes Three Number of Handles Handle style Knob Faucet Total Height Spout Reach 6-7/8’’ Spout Height Adjustable Installation type Wall mount Valve Type Ceramic disc Faucet Body Material Brass...
- Page 5 FRONT VIEW OF FAUCET SIDE VIEW OF FAUCET...
-
Page 6: Before Proceeding
Hot disc cartridge 1PCS Escutcheon Adapter 2PCS 1248011 1248012 Allen wrench 1PCS Hot/cold sign 2PCS 1248013 1248014 Mounting screw 2PCS Anchor 2PCS 1248015 1248016 If any of these items are missing, please contact SUMERAIN consumer service by email to: supports@sumerain.com... - Page 7 4. VALVE TRIM INSTALLATION 4.1 Make a mounting rack (normally use woods as materials) for preparing install the rough-in valve trim. The mounting board’s face should be 2-27/32” at least and Max 2-29/32” behind the finish wall surface.
- Page 8 Apply Teflon tape on the escutcheon adapter and connect to rough-in valve. Secure the rough-in valve to the mounting board with screws by Philips screwdriver. Horizontal...
- Page 9 4.4 Turn on your shut-off valve for cleaning the hot and cold water supply tube before connect to the valve trim, allow the water flush 3~5 minutes to flush out dirt and debris. Shut off the water supply again after finish. 4.5 Apply Teflon tape on the thread of tube inlet and then connect to rough-in valve.
- Page 10 4.6 Install finish wall 4.7 Attach spout adapter to shank of rough-in valve by Allen wrench.
- Page 11 4.8Secure spout to adapter with set screw with Allen wrench.
- Page 12 4.9 Install the Escutcheons. 4.10 Secure the knobs to cartridge stem with screw by Allen wrench. 5. INSPECTION 5.1 Turn on hold and cold water supply and check all connection for ensuring no leaking anywhere. INSTALL FINISH...
- Page 13 Please note: if the surface is already damaged, the effect of cleaning materials will cause further damage. Components with damaged surfaces must be replaced or injury could result. Damage caused by improper treatment is not covered under the warranty. HONGKONG SUMERAIN SANITARY INDUSTRY CO., LIMITED Address: ROOM 1018, HOLLYWOOD PLAZA 610 NATHAN ROAD MONGKOK, KL,HONGKONG...
