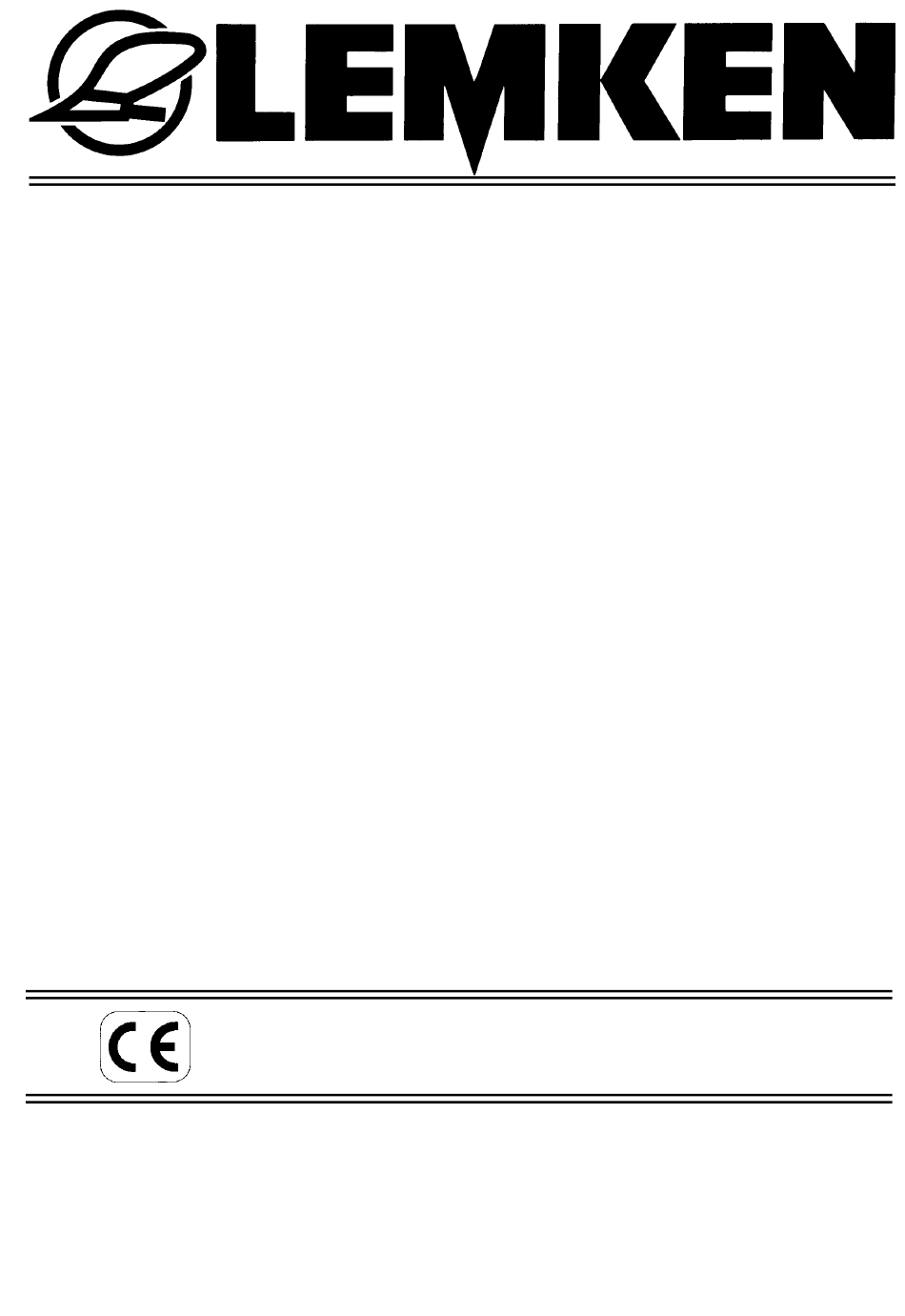

- Page 1 - EN - SAFETY IS OUR CONCERN! Art.-Nr.: 175 3715 EN-1/07.03 LEMKEN GmbH & Co. KG Weseler Straße 5, D-46519 Alpen / Postfach 11 60, D-46515 Alpen Telefon (0 28 02) 81-0, Telefax (0 28 02) 81-220 E-Mail: lemken@lemken.com, Internet: http://www.lemken.com...
- Page 3 Only use genuine Lemken spare-parts. Spurious parts negatively influence the function of the implement, show a shorter lifetime and increase in nearly all cases additional maintenance. We trust that you will understand that LEMKEN is unable to guarantee poor operation and damage caused by using spurious parts!
-
Page 5: Table Of Contents
„General Health- and Safety precautions“! • The LEMKEN Thorit 8 have been designed purely for the agricultural use! • Any use beyond the one stipulated above is no longer considered as defi- ned use! •... - Page 6 Outer discs................14 PREPARATION OF THE TRACTOR ..........15 Tyres..................15 Lift rods ................15 Check chains or sway blocks ..........15 Tractor hydraulics ............... 15 Required power sources and sockets....... 15 Axle load ................16 4.6.1 Calculation of the minimum front ballast GV min: ..16 4.6.2 Calculation of the increasing of the rear axle load: ..
- Page 7 10.1.1Adjustment of the scraper ...........27 10.1.2Distance between scraper and roller surface .....28 10.2 Knife roller ................29 10.2.1Working depth of the knifes ........29 10.2.2Giving way of the knifes ..........29 10.2.3Adjustment of the knife frame ........29 10.2.4Position of the knifes ...........29 10.2.5Reconsolidation effect of the rollers ......30 11 MAINTENANCE ................31 11.1 Bolts ..................31 11.2 Wearing parts ...............31...
-
Page 9: Safety Instructions
SAFETY INSTRUCTIONS General Safety Instructions • Before using the machine, always check both it and the tractor for roadworthiness and operational safety! • As well as the notes in these instructions the operator is advi- sed to comply with the generally applicable safety at work re- gulations and those relating to use of the public highway! •... - Page 10 • Handling behaviour, steerability and braking are influenced by mounted implements, trailers and ballast weights. Check for sufficient steerability and braking! • When driving round bends note the width of the machine and/or changing centre of gravity of the implement. •...
- Page 11 Maintenance • Repair-, maintenance- and cleaning operations as well as adjustments and remedy of function faults should principally be conducted with engine stopped and brakes applied. Remove ignition key! • Check and tighten nuts and bolts regularly! • When conducting maintenance work on a lifted implement always place suitable supports underneath! •...
-
Page 12: Warning Stickers
WARNING STICKERS 2.1 General Instructions The LEMKEN Thorit 8 is equipped with all features to ensure safe operation. Where potential danger areas of the implement can not be fully safeguarded, warning stickers are fitted which draw attention to these. 2.2 Understanding the stickers Familiarise with the meaning of the stickers. - Page 13 WARNING! Pinch point! WARNING! Keep well clear of the working and swinging area of the imple- ment!
-
Page 14: Position Of The Stickers
Position of the stickers... -
Page 15: Compact Instructions
COMPACT INSTRUCTIONS The following instructions must be done to use the Thorit 8 effective and op- timal. Lower- and top links The lower links must be arranged so that they nearly intersect in the middle between the front and rear axle of the tractor. -
Page 16: Working Depth Of The Tines
Working depth of the tines The working depth will be adjusted by means of the pins (S1) and (S2) of the pin adjuster (V1). Range of working depth = 5 cm to 30 cm. Reconsolidation effect The reconsolidation effect of the rollers (W0) will be adjusted via the position of the top link. -
Page 17: Preparation Of The Tractor
During work the tractor hydraulics must be set to „floating position“ or „mixed control“. Required power sources and sockets For the electric use of the Thorit 8 the following power sources must be avai- lable with the tractor. Function Voltage... -
Page 18: Axle Load
Axle load The attachment of implements to the front- and rear-three point linkage must not lead to exceeding the allowed total weight, the allowed axle load and the allowed tyre load of the tractor. The tractor front axle must always be loaded with 20 % of the tractor dead weight at minimum. - Page 19 The calculation of the required minimum front ballast and the increasing of the rear axle load requires that all above mentioned measurements and weights are known. If they are unknown and cannot be found out, there will be only one way to avoid overloads: Please weigh your tractor with mounted and lifted implement to find out the actual rear axle loading and front axle unloading and that in compa- rison with the axle loads of the tractor without implement!
-
Page 20: Three Point Linkage
THREE POINT LINKAGE General Instruction The category of the three point linkage must be the same at the tractor and the implement. If this is not the case, either the tractor three point linkage must be adapted or the drawbar (A0) and if required the top link pin (A1) ex- changed by a category corresponding version. -
Page 21: Attaching And Detaching The Rubin
ATTACHING AND DETACHING THE RUBIN Attaching - Set tractor hydraulic to position control, when attaching the culti- vator. - Connect tractor lower links to the drawbar (A0) and secure! - Connect top link so that the con- nection point atthe implement is higher than that of the tractor also during work! - Secure top link pin (A1) by... -
Page 22: Adjustments
ADJUSTMENTS Working depth of the tines After raising the implement some cm the working depth of the tines will be adjusted as follows by means of the pin adjuster (V1): Placing the lower pin (S1) in a de- eper hole =>... -
Page 23: Working Depth Adjustment Of The Hollow Discs
Working depth adjustment of the hollow discs The hollow discs (K3) should be adjusted so deep that they level the ridges and grooves left by the rear tines. When working too de- ep, new ridges and grooves will be built, and when working too shal- low, the grooves and ridges left by the tines will be levelled insuffi- ciently. -
Page 24: Straw Harrow
For transport on public roads, the outer discs must be folded-in. For folding-in each pin (R8) must be unlocked and removed, the outer disc folded-in and secured in fol- ded-in position by means of the pins (R8). Finally the pin (R8) must also be secured. - Page 25 The steeper the harrow tines (P1) are positioned, the better is the crumbling. The less steep the harrow tines (P1) are positioned, the less is the risk of clog- ging. Straw, which will be taken along by the harrow tines, can be taken out by the rollers again.
-
Page 26: Shearbolt Device
M12 x 65 B = 15/8.8 M10 x 45 B = 10/8.8 301 3391 301 3240 Thorit 8 Ü M12 x 60 B = 15/10.9 M10 x 45 B = 10/8.8 • Read and adhere to the General Safety Instructions! -
Page 27: Automatic Overload Safety Device
AUTOMATIC OVERLOAD SAFETY DEVICE The tines (H0) of the Thorit 8 culti- vator is equipped with an auto- matic overload safety device which is especially designed for stony soil conditions. The tines trip back and upwards when touching an obstacle and... -
Page 28: Rollers
10 ROLLERS 10.1 General Instruction The Thorit 8 can be equipped with a num- ber of rollers (W0): Tube bar rollers RSW 400 or RSW 540, double rollers DRR 400, DRR 540/400 or DRF 400, packer roller ZPW 500, trapeze packer roller TPW 500, trapeze disc roller TSW 500 and knife roller MSW 600. -
Page 29: 1Adjustment Of The Scraper
10.1.1 Adjustment of the scraper The adjustable scrapers (W1) of the rollers will be adjusted by means of nuts (W2) or eccentric nuts (W6). Whilst the nuts (W2) of the packer roller can be adjusted by means of a 19 mm spanner, the eccentric nuts (W6) will be adjusted by a 24 mm span- ner. -
Page 30: 2Distance Between Scraper And Roller Surface
10.1.2 Distance between scraper and roller surface The distance between scraper (W1) and roller surface (W5) must be adjusted as follows. The setting instructions are valid for all packer rollers, trapeze pa- cker rollers and trapeze disc rollers. Heat treated scrapers Synthetic scrapers (fitted to the roller surface (W5) with a little pre-tension) -
Page 31: Knife Roller
10.2 Knife roller 10.2.1 Working depth of the knifes The working depth of the knifes (M1) will be adjusted by means of the pins (M2). Therefore the pins (M2) above the support plate (M3) will be fitted into one of the free holes of the carrier arms (M4). By means of the screw (M5) the carrier arms (M4) will be swung into the required position. -
Page 32: 5Reconsolidation Effect Of The Rollers
10.2.5 Reconsolidation effect of the rollers The reconsolidation effect of the roller will be changed by means of changing the position of the top link. Therewith the tractor hydraulics must be set to floa- ting position or mixed control. Steep positioned top link => low reconsolidaton effect Not so steep positioned top link =>... -
Page 33: Maintenance
11 MAINTENANCE every 50 every 100 before the after the hours of hours of winter winter break break Pivots of the overload safety units (2x) Hollow discs (1x) Greasing all pins Greasing all shiny areas of the hollow discs, outer discs and guide boards 11.1 Bolts All nuts and bolts must be tightened after the first few hours of use, at least... -
Page 34: Driving On Public Roads
If it is required to drive on public roads with the cultivator, fit warning boards with lighting equipment. As option for the Thorit 8 the carrier for lights (order No. 81 1640L) and war- ning boards with lighting equipment (order No. 80 2011L) are available. -
Page 35: Technical Data
13 TECHNICAL DATA Thorit 8/300 8/300 Ü 8/400 9/400 Ü Weight (apprx.) 1368 kg 1788 kg 1768 kg 2328 kg Length * (apprx.) 400 cm 430 cm 400 cm 430 cm Transport height 300 cm 300 cm 400 cm 400 cm Height (apprx.) 146 cm 146 cm... -
Page 37: Index
INDEX adjustments ..........20 attaching . - Page 38 scraper ..........27 shearbolt .
