Summary of Contents for Aurora ASP-42

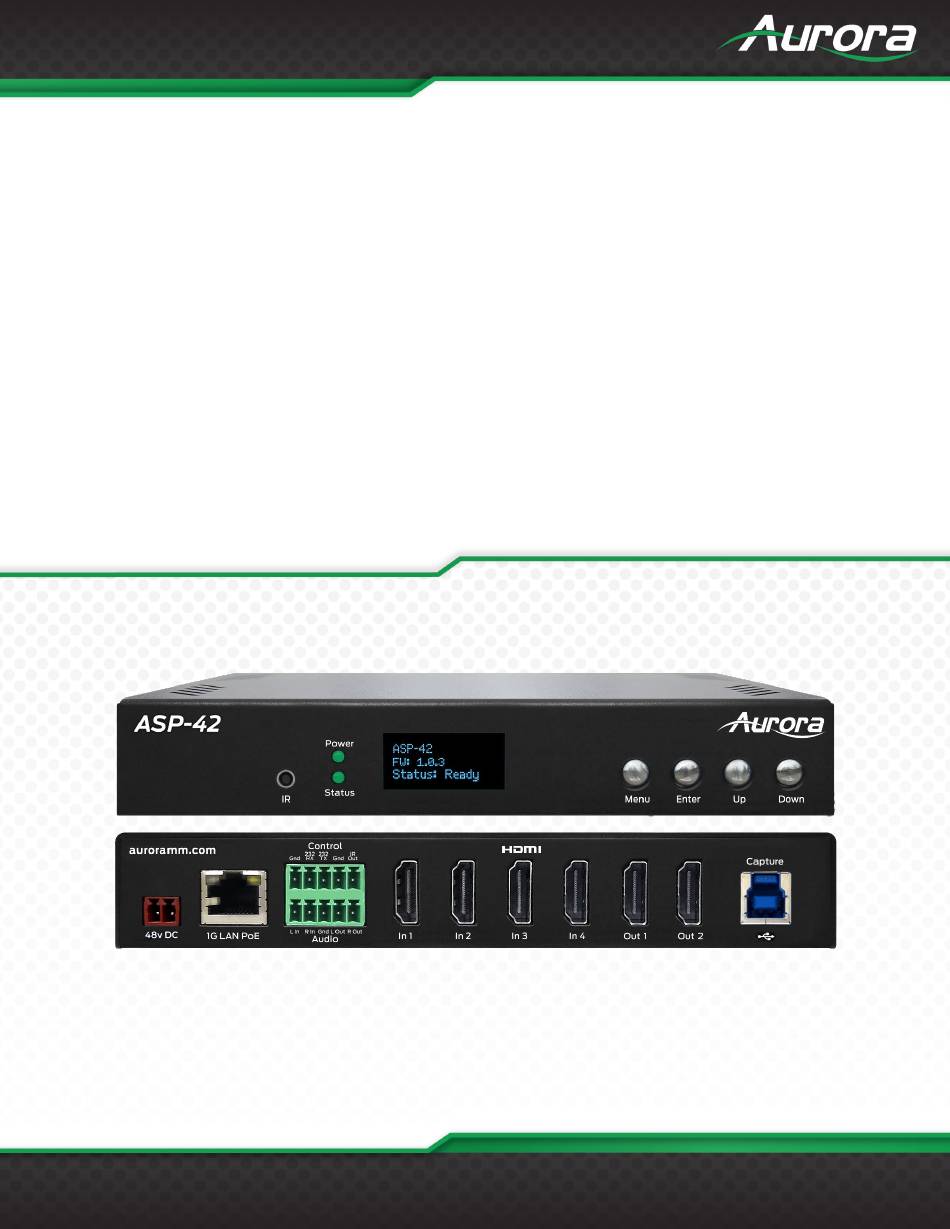

- Page 1 USERS GUIDE ASP-42 4K60 4:4:4 4x2 HDMI Matrix with USB 3.1 Capture www.auroramm.com Manual Number: 231122 | Firmware Rev: 0.0.5 or Higher...
- Page 2 Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions.
-
Page 3: Table Of Contents
OPTIONAL ACCESSORIES ..............................5 INTRODUCTION ..................................7 About ....................................7 Features ....................................7 ASP-42 Front..................................8 ASP-42 Rear ..................................9 HARDWARE INSTALLATION ............................. 10 Mounting and Cabling ............................... 10 WEB SETUP PAGES ................................11 Network Settings ................................12 Port Settings .................................. 13 Video ..................................... -
Page 4: Package Contents
USERS GUIDE PACKAGE CONTENTS Please make sure the following items are included within your package. 1 QTY ASP-42 2 QTY Mounting Ears and screws. Power supplies are sold separately. *Note: Go to www.auroramm.com for the latest manual and firmware. -
Page 5: Optional Accessories
(5RU Rack Mount Holds 12 Units) Includes 24 rails and 4 blanks RK2-BP-K (Blank Plate for Rack Mounts) RK2-RL-K (For ASP-42 use in Rack Mounts) PS0081-1 (48V 24-Watt PoE Injector) Available in –US, -AU, -EU, and –UK worldwide models www.auroramm.com... - Page 6 USERS GUIDE PS0094-3 (48V 25-Watt Wall Supply) Comes with US, AU, EU, and UK interchangeable blades www.auroramm.com...
-
Page 7: Introduction
INTRODUCTION About The ASP-42 is a 4K60 4x2 HDMI 2.0 matrix with integrated USB 3.1 capture. The USB mirrors the second output to allow seamless capture of any of the 4 inputs to a PC or any conferencing system with USB webcam support. To further round out the product, the ASP-42 has RS-232, IR, and CEC control. -
Page 8: Asp-42 Front
USERS GUIDE ASP-42 Front LEDs Power: Power will light green when unit is on or in standby. Status: Status will blink at a normal pace during regular operation and slower pace when in standby. OLED Display Using the buttons as described below, the OLED display will show power state, serial number, MAC address, IP address, and subnet mask. -
Page 9: Asp-42 Rear
USERS GUIDE ASP-42 Rear Rear From left to right: 48VDC: 48 Volt isolated power input (+/- polarity) LAN Connector LED’s: Left LED Green = 1G Link Speed Left LED Orange = 10/100 Mbps Link Speed Right LED is Orange, for general LAN Activity Control RS-232: Serial port pass-through and control up to 115Kbps. -
Page 10: Hardware Installation
1. Mount the ASP-42 according to the application. The ASP-42 comes with mounting ears for under the table or on the wall. Aurora also offers 2 rackmount options for 1RU dual side by side or a 5RU for up to 12 units. -
Page 11: Web Setup Pages
The default username and password are “admin.” It is highly advisable to change the units to a unique username and password for security reasons. Make certain the ASP-42 unit is connected to the 1GbE network and it has a unique IP Address or there will be communication issues. -
Page 12: Network Settings
USERS GUIDE Network Settings Current Network Settings will display the unit’s current IP Address, Subnet Mask, and Gateway. Network Configuration allows the user to set the unit’s IP Addressing mode. If set to static, the user can set a static IP Address, Subnet Mask, and Gateway. -
Page 13: Port Settings
USERS GUIDE Port Settings Local Serial Port Settings allow the user to set the Baud Rate, Data Size, Parity, and Stop Bits of the unit’s RS-232 port. Local Serial Send allows the user to send an up to a 20 character string out of the unit’s RS-232 port. www.auroramm.com... -
Page 14: Video
USERS GUIDE Video Video Route allows the user to set the input sent to each output. Output Video Info displays the current output resolution and interface mode of each output. Input Video Info displays the current resolution, color space, and HDCP level for each routed input. Unrouted inputs will display “Not Routed”... -
Page 15: Hdmi
USERS GUIDE CONNECTOR PIN DEFINITION HDMI TMDS Data2+ Pin 8 TMDS Data0 Shield Pin 15 Pin 1 Pin 2 Pin 9 Pin 16 TMDS Data2 Shield TMDS Data0– Pin 3 TMDS Data2– Pin 10 TMDS Clock+ Pin 17 DDC/CEC Ground Pin 4 TMDS Data1+ Pin 11... -
Page 16: Cat5E/6/6A
USERS GUIDE CAT5e/6/6A T568A and T568B Wiring www.auroramm.com... -
Page 17: Troubleshooting
Verify a USB 3.1 Type B cable is used. Unit does not power on The ASP-42 only requires standard PoE. Make certain the switch is capable of PoE. If using a wall supply, make certain it is an Aurora 48v Supply. -
Page 18: Firmware Update
USERS GUIDE APPENDIX 2 Firmware Update For the latest firmware updates please go www.auroramm.com. You must sign up to the Customer Portal to download firmware with instructions on how to update. www.auroramm.com... -
Page 19: Technical Specifications
Optional: Rack Mount Vertical, Rack Mount Horizontal, Under Table Mount Power Supply 48v DC (2 Pin Euro) or PoE (LAN) Power Consumption 4 Watts Operation Temperature 0~40 C [32~104 Storage Temperature -20~60 C [-4~140 Relative Humidity 20~90% RH [No Condensation] Package Contents 1x ASP-42, 2x Mounting Ears www.auroramm.com... -
Page 20: Warranty
Limited 5 Year Warranty Aurora Multimedia Corporation (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 5 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2019 and after. - Page 21 USERS GUIDE Aurora Multimedia Corporation 205 Commercial Court | Morganville, NJ 07751 Phone: 732-591-5800 | Fax: 732-591-5801 www.auroramm.com...
