Summary of Contents for Aurora ASP-442A

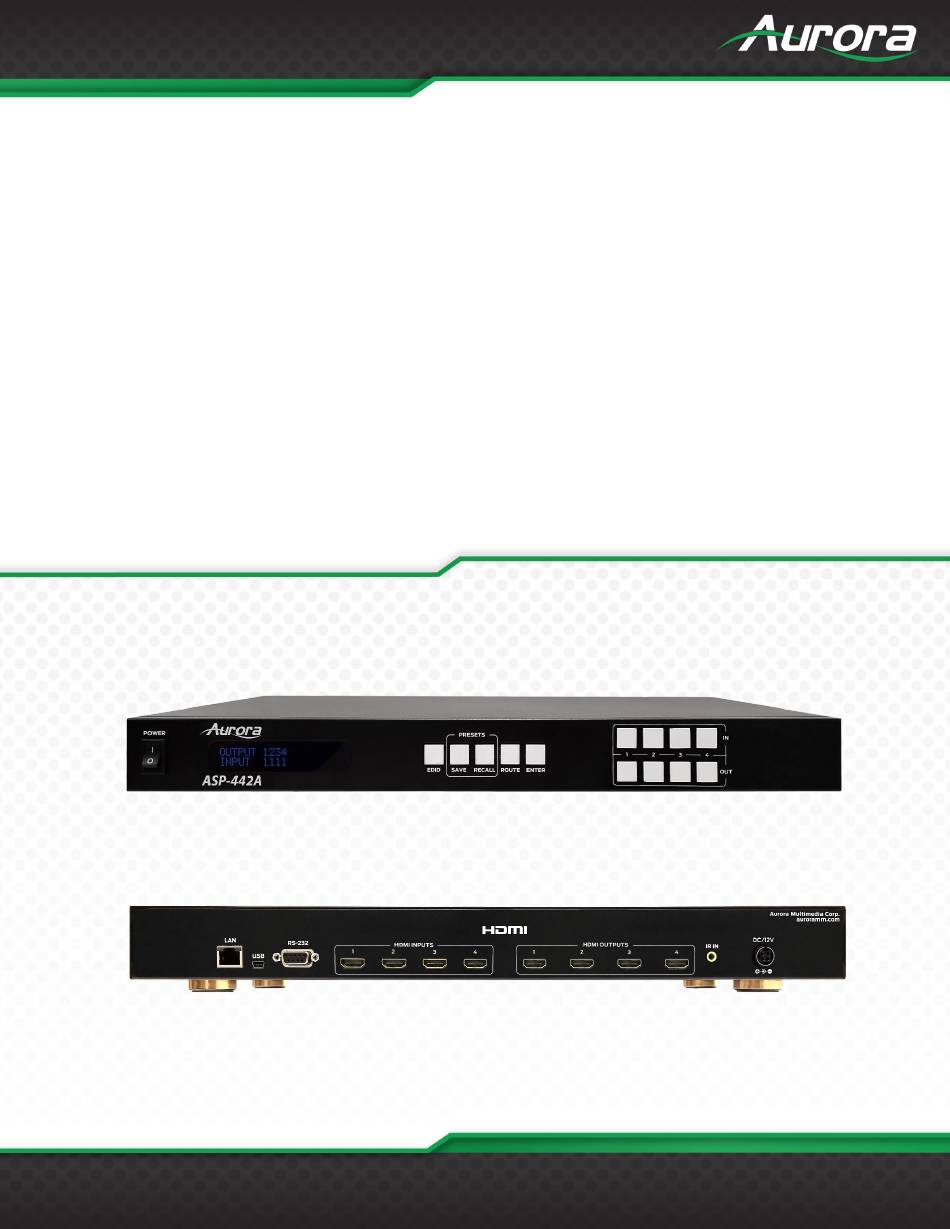

- Page 1 USERS GUIDE ASP-442A 4x4 Series HDMI 2.0a Matrix www.auroramm.com Manual Number: 190701 | Firmware Rev: 00.02...
- Page 2 Please review the following safety precautions. If this is the first time using this model, then read this manual before installing or using the product. If the product is not functioning properly, please contact your local dealer or Aurora for further instructions.
-
Page 3: Table Of Contents
USERS GUIDE TABLE OF CONTENTS PACKAGE CONTENTS ................................. 3 INTRODUCTION ..................................4 About ....................................4 Features ....................................4 ASP-442A Front .................................. 5 ASP-442A Rear ................................... 6 APPLICATION ..................................7 ASP-442A Application ................................. 7 OPERATION ................................... 8 LCD Readout..................................8 Routing ....................................9 EDID .................................... -
Page 4: Package Contents
USERS GUIDE PACKAGE CONTENTS Please make sure the following items are included within your package. Contact your dealer if any items are missing or damaged. ASP-442A x 1 Rack Ears x 2 12v DC Desktop Power Supply x 1 ... -
Page 5: Introduction
About The ASP-442A is a 4x4 4K HDMI Matrix offering the power and flexibility you need at a cost-effective price. Route Ultra High Definition video sources and multi-channel digital audio from any of the 4 HDMI inputs to the any of the 4 HDMI outputs at the same time. -

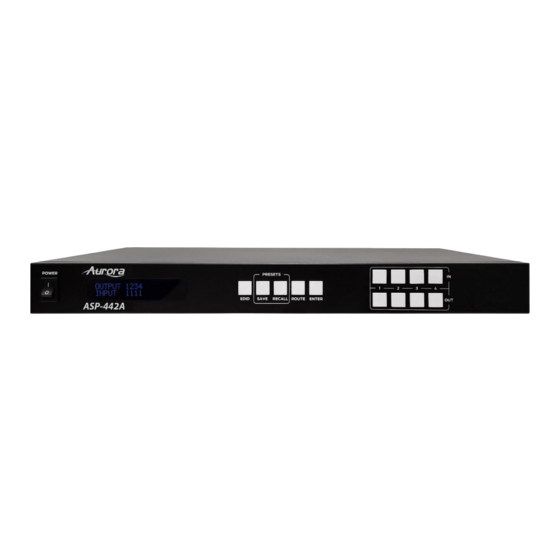

Page 6: Asp-442A Front
USERS GUIDE ASP-442A Front Front Power: Power switch for turning the unit on or off. When first turned on all Input and Output LEDs will light for 1 second to show operation of LED working. LCD Display: Top row shows the input routed to relative Output number below. -
Page 7: Asp-442A Rear
USERS GUIDE ASP-442A Rear Rear Inputs 1-4: 4 HDMI 2.0a inputs for a variety of sources up to 4K60Hz resolutions. Outputs 1-4: 4 HDMI 2.0a outputs for a variety of destinations up to 4K60Hz resolutions. LAN: Control remotely using Telnet. -
Page 8: Application
USERS GUIDE APPLICATION ASP-442A Application www.auroramm.com... -
Page 9: Operation
LCD Readout The LCD will reflect what Output is routed to which input when in an idle state. The ASP-442A (4x4) will only show 1, 2, 3, and 4 on the LCD unlike the ASP-442A, which will show 1-4 since it is a 4x4. -
Page 10: Routing
The LCD will also show various states of operation and displaying information depending on the mode of operation. Routing The ASP-442A has 3 ways of making a route for optimal flexibility. Technique 1 Press ROUTE, all the input / output buttons will light for connected HDMI inputs. -
Page 11: Edid
USERS GUIDE Select the Output(s) to associate the Input accordingly. To unroute press the already lit Output(s). Press ENTER to complete the operation and make the routes all at once. Press ROUTE again to do another input setting followed by 1) to 3). ... -
Page 12: Presets
USERS GUIDE Press ENTER, the LCD will show “Success” or “Fail” to indicate the learning status. In Manual Mode – Check Input EDID Status Press EDID button (LCD will show current mode Auto/Manual). Press the input. The learned EDID output number and device ID will show on the LCD. ... -
Page 13: Firmware Update
USERS GUIDE Firmware Update Firmware can be updated by the ASP Matrix Manager software through RS-232. www.auroramm.com... -
Page 14: Pc Control Software
(Routing) of Outputs to Inputs, EDID management, Rename (Labeling displayed on LCD), System (IP Address Setup), and Firmware (Updating). Note for the ASP-442A only 4 inputs and outputs will be available and 8 preset locations. It is available for download from the Aurora customer portal www.auroramm.com. - Page 15 USERS GUIDE EDID The EDID tab allows for full EDID management to all the inputs. Custom EDID files can be loaded from this tab or pulled from a device to be saved for other units. www.auroramm.com...
- Page 16 USERS GUIDE Rename The Rename tab allows the labeling of Input, Output and Preset buttons on the front LCD. www.auroramm.com...
- Page 17 USERS GUIDE System The System tab is for the setup of the units IP settings, factory defaults, and firmware versions. www.auroramm.com...
- Page 18 USERS GUIDE Firmware The Firmware page allows the updating of firmware from the LAN or USB. Latest firmware can be found on the Aurora customer portal located at www.auroramm.com. Important! Make certain unit has valid IP address if using Update from Net. If unit is set to DHCP make certain there is a DHCP server connected or set to a static.
-
Page 19: Serial Commands
USERS GUIDE SERIAL COMMANDS RS-232 Telnet Commands Baud Rate: 9600 8N1 DB9 Female (Pins 2-TX, 3-RX, 5-GND), Straight through Cable to PC Is the start character to active command. Is the start character to query status. Is the start character of the response. /x0D (<cr>... - Page 20 USERS GUIDE Command String Format Information EDID Read ?EDRx<cr> x= HDMI Input 1-4 y0-y255 = EDID Data in ASCII HEX representation Response: ~EDIDx-y0 y1…y255<cr> y0-y255 = EDID Data in ASCII HEX representation EDID Learn !EDLx1 x2 x3 x4 x5 x6 x7 x1-x4 = output relative to input.
- Page 21 USERS GUIDE Command String Format Information Output Label Query ?LOUTx<cr> x = 1-4 y = Label Name Response: y<cr> Preset Label !LPRx-y<cr> x = 1-4 y = Label Name Response: ~LINx-y<cr> Preset Label Query ?LPRx<cr> x = 1-4 y = Label Name Response: y<cr>...
-
Page 22: Troubleshooting
USERS GUIDE APPENDIX 1 Troubleshooting Problem Solution a. Check 12v power supply is plugged in rear of unit. b. Check to see if Wall supply is plugged into wall outlet. 1. LED is not lit on any LEDs or buttons c. -
Page 23: Technical Specifications
12v 5A DC Power consumption 25 Watts Operation temperature 0~40°C [32~104°F] Storage temperature -20~60°C [-4~140°F] Relative humidity 20~90% RH [no condensation] 1x ASP-442A Package Contents 1x 12v Desktop Power Supply 2x Rack Mount Ears *Note: Specifications subject to change without notice. www.auroramm.com... -
Page 24: Warranty
Limited 3 Year Warranty Aurora Multimedia Corporation (“Manufacturer”) warrants that this product is free of defects in both materials and workmanship for a period of 3 years as defined herein for parts and labor from date of purchase. This Limited Warranty covers products purchased in the year of 2009 and after. - Page 25 USERS GUIDE Aurora Multimedia Corporation 205 Commercial Court | Morganville, NJ 07751 Phone: 732-591-5800 | Fax: 732-591-6801 www.auroramm.com...
