Model SR7001i Wall Mount Platform Scale
Operating and Service Manual
Part No. MAN7001i_240312
Page 1 of 16
S
by S Instruments, Inc.
Wall Mount Platform Scale
Operating and Service
Manual
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2024 SInstruments, Inc.
email:
sri@srinstruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR scales SR7001i and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SR scales SR7001i

Summary of Contents for SR Instruments SR scales SR7001i

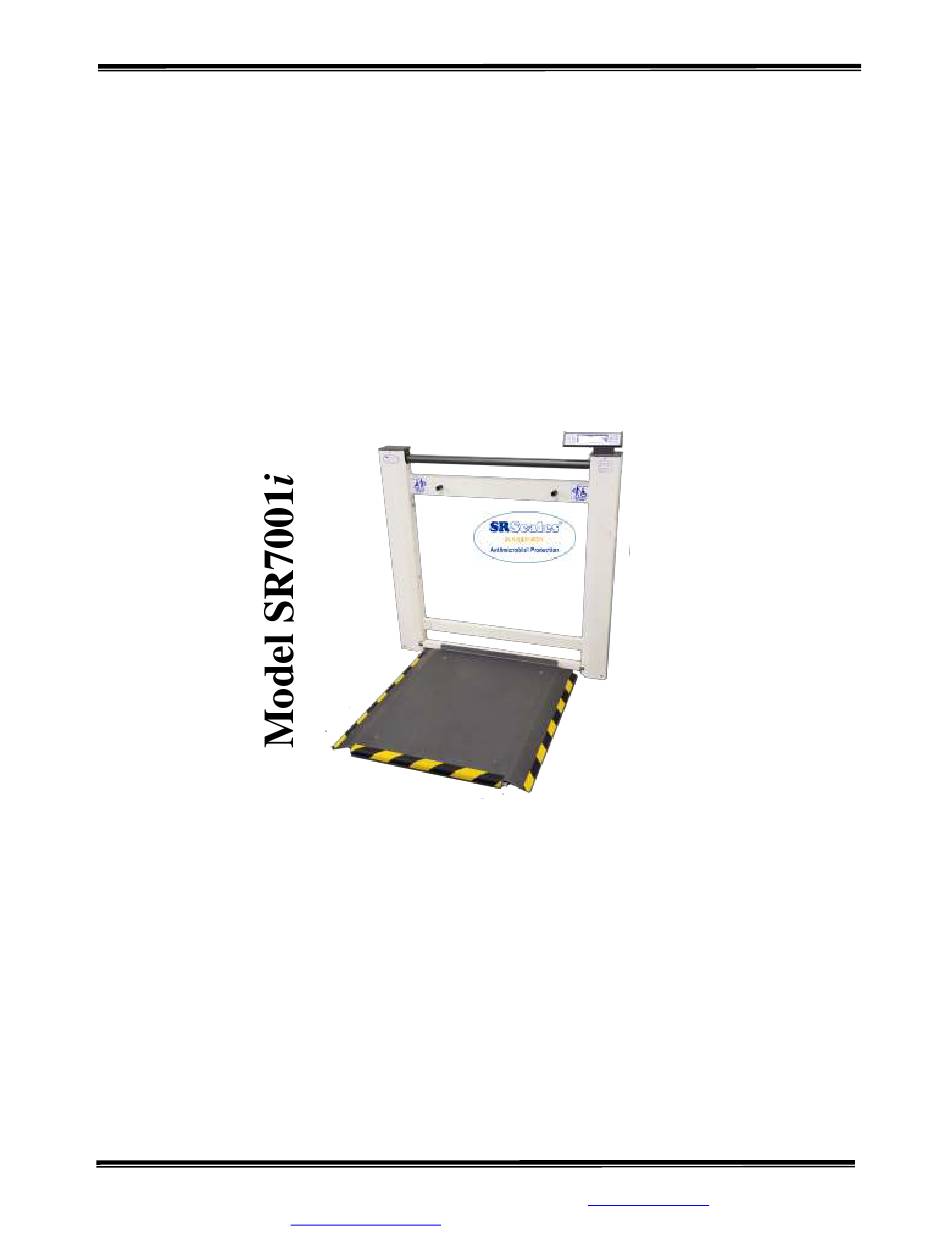

  • Page 1 Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 1 of 16 by S Instruments, Inc. Wall Mount Platform Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2024 SInstruments, Inc.

  • Page 2: Table Of Contents

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 2 of 16 TABLE OF CONTENTS PACKING CHECKLIST .........................3 INSTALLATION ..........................3 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............6 ANTIMICROBIAL PROTECTION ....................7 CLEANING AND DISINFECTING ....................7 STORAGE ............................8 SPECIFICATIONS...........................8 BUTTON FUNCTIONS ........................9...

  • Page 3: Packing Checklist

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 3 of 16 PACKING CHECKLIST SR7001i Wall Mount Platform Scale  DESCRIPTION QUANTITY PLATFORM SCALE 1 ea MOUNTING BRACKET AND HARDWARE PACKET 1 ea AC WALL POWER ADAPTER (MEDICAL GRADE) 1 ea CALIBRATION CERTIFICATE 1 ea...

  • Page 4: Figure 1: Wall Bracket

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 4 of 16 INSTALLATION (Cont’d) Figure 1: Wall Bracket WARNING THE WALL BRACKET MUST BE SECURELY ANCHORED TO THE WALL USING APPROPRIATE HARDWARE STEP 3: To mount the SR7001i Wall Mount Platform Scale use the Wall Bracket (Figure 1) supplied with the scale.

  • Page 5: Replacement Parts And Accessories

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 5 of 16 INSTALLATION (Cont’d) STEP 6: For stud wall mounting locations without a stud, use a screwdriver to drive the provided self-drilling wall anchors into the wall. It is NOT recommended to use a power drill to set the wall anchors.

  • Page 6: System Description And Intended Use

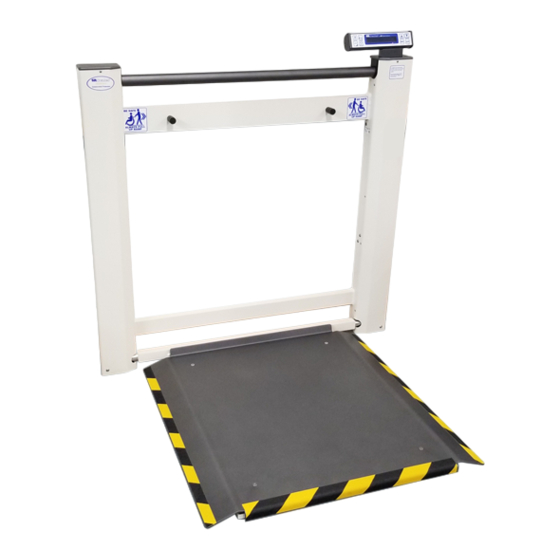

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 6 of 16 SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SR7001i Wall Mount Platform Scale system employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient’s weight.

  • Page 7: Antimicrobial Protection

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 7 of 16 ANTIMICROBIAL PROTECTION Antimicrobial technology has been added to help reduce the growth of bacteria as part of a medical center's approach to creating a cleaner healthcare environment. CLEANING and DISINFECTING CLEANING To clean the display / user interface and other scale contact areas:...

  • Page 8: Storage

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 8 of 16 STORAGE Platform should be stored in the upright position when not in use to prevent a trip and fall hazard. If storing this equipment for periods longer than three (3) months, store in the upright position to prevent damage to the hydraulic cylinders.

  • Page 9: Button Functions

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 9 of 16 BUTTON FUNCTIONS Figure 4: Button Display WEIGH Press and hold to zero scale. Button is used to zero the system before placing the patient on the scale.

  • Page 10: Basic System Operation

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 10 of 16 BUTTON FUNCTIONS (Cont’d) ENTER Press to save change in digits for calibration, for unit’s set-up, for time and date set-up and saving completed calibration data. UP / SELECT Press UP to adjust height up from the default for BMI calculation, to increase the scale’s “on time”, or to select a digit when setting time and date.

  • Page 11: Theory Of Operation

    Page 11 of 16 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter. The digital signal is filtered, converted to appropriate units, and displayed on the liquid crystal display.

  • Page 12: Calibration

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 12 of 16 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. CALIBRATION CHECKING CALIBRATION: TOLERANCE TABLE...
  • Page 13 Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 13 of 16 CALIBRATION (Cont’d) STEP 3: Select known calibrated weights, traceable to NIST, up to the Full Scale value. DO NOT USE barbells or uncalibrated weights. NOTE: The first weight or group of weights should be half of the Full Scale value.

  • Page 14: Troubleshooting

    Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 14 of 16 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Ensure that nothing is under the platform. Low readings Check and verify calibration. Press the “WEIGH” button or disconnect power. The characters only appear on half of the Wait five seconds, then re-connect the power and try display.

  • Page 15: Warranty

    SR Instruments, Inc.’s part, and it neither assumes nor authorizes any other person to assume for SR Instruments, Inc. any other liabilities in connection with the sale of said articles. In no event shall SR Instruments, Inc.
  • Page 16 Model SR7001i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7001i_240312 Page 16 of 16 By SInstruments, Inc. Precision & Technology in Perfect Balance  SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2024 SInstruments, Inc.
