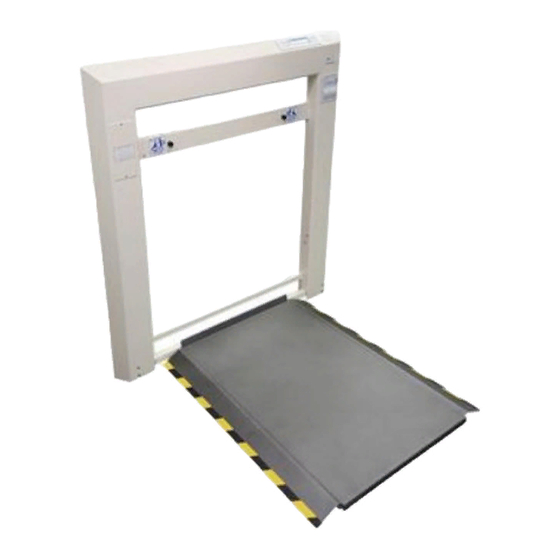

Wall mount platform scale
Hide thumbs
Table of Contents

Advertisement

Quick Links

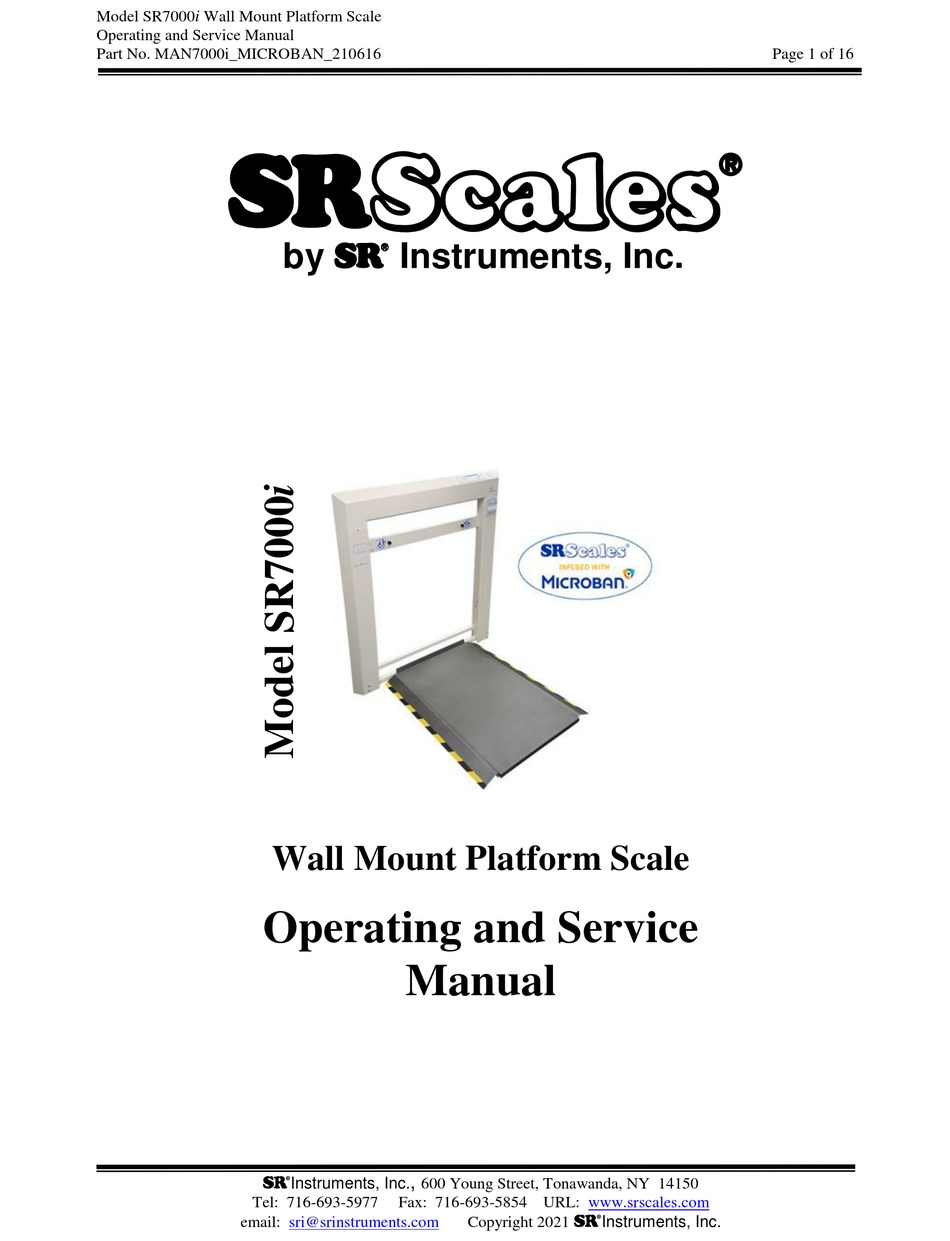

Model SR7000i Wall Mount Platform Scale
Operating and Service Manual
Part No. MAN7000i_MICROBAN_210616
Page 1 of 16
S
by S Instruments, Inc.
Wall Mount Platform Scale
Operating and Service
Manual
,
SInstruments, Inc.
600 Young Street, Tonawanda, NY 14150
Tel: 716-693-5977
Fax: 716-693-5854 URL:
www.srscales.com
Copyright 2021 SInstruments, Inc.
email:
sri@srinstruments.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRScales SR7000i and is the answer not in the manual?

Questions and answers

Related Manuals for SR Instruments SRScales SR7000i

Summary of Contents for SR Instruments SRScales SR7000i

  • Page 1 Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 1 of 16 by S Instruments, Inc. Wall Mount Platform Scale Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc.

  • Page 2: Table Of Contents

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 2 of 16 TABLE OF CONTENTS PACKING CHECKLIST .........................3 INSTALLATION ..........................3 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............6 MICROBAN ANTIMICROBIAL PROTECTION ...............6 CLEANING AND DISINFECTING ....................7 STORAGE ............................8 SPECIFICATIONS...........................8...

  • Page 3: Packing Checklist

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 3 of 16 PACKING CHECKLIST SR7000i Wall Mount Platform Scale  DESCRIPTION QUANTITY PLATFORM SCALE 1 ea MOUNTING BRACKET AND HARDWARE PACKET 1 ea 3 FOOT AC POWER SUPPLY CORD 1 ea CALIBRATION CERTIFICATE 1 ea...

  • Page 4: Figure 1: Wall Bracket

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 4 of 16 INSTALLATION (CON’T) Figure 1: Wall Bracket WARNING THE WALL BRACKET MUST BE SECURELY ANCHORED TO THE WALL USING APPROPRIATE HARDWARE STEP 3: To mount the SR7000i Wall Mount Platform Scale use the Wall Bracket (Figure 1) supplied with the scale.

  • Page 5: Replacement Parts And Accessories

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 5 of 16 INSTALLATION (CON’T) STEP 6: For stud wall mounting locations without a stud, use a screwdriver to drive the provided self- drilling wall anchors into the wall. It is not recommended to use a power drill to set the wall anchors. For concrete wall mounting, install appropriate wall anchors at all marked screw locations.

  • Page 6: System Description And Intended Use

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 6 of 16 SYSTEM DESCRIPTION and INTENDED USE SYSTEM DESCRIPTION The SR7000i Wall Mount Platform Scale system employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. Four (4) identically matched transducers are strategically placed to ensure an accurate representation of the patient’s weight.

  • Page 7: Microban Antimicrobial Protection

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 7 of 16 MICROBAN ANTIMICROBIAL PROTECTION Microban® antimicrobial technology has been added to help reduce the growth of bacteria as part of a medical center's approach to creating a cleaner healthcare environment. For more information, visit https://www.microban.com/sr-scales CLEANING and DISINFECTING CLEANING...

  • Page 8: Storage

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 8 of 16 STORAGE Platform should be stored in the upright position when not in use to prevent a trip and fall hazard. If storing this equipment for periods longer than three (3) months, store in the upright position to prevent damage to the hydraulic cylinders.

  • Page 9: Button Functions

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 9 of 16 BUTTON FUNCTIONS Figure 4: Button Display WEIGH Press and hold to zero scale. Button is used to zero the system before placing the patient on the scale.

  • Page 10: Basic System Operation

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 10 of 16 BUTTON FUNCTIONS (CON’T) ENTER Press to save change in digits for calibration, for unit’s set-up, for time and date set-up and saving completed calibration data. UP / SELECT Press UP to adjust height up from the default for BMI calculation, to increase the scale’s “on time”, or to select a digit when setting time and date.

  • Page 11: Theory Of Operation

    Page 11 of 16 THEORY OF OPERATION SR Instruments patient weighing systems are digital scales. Strain-gauge force cells convert the force of an applied weight into an analog signal. This signal is amplified by an operational amplifier and converted to a digital signal by an on-chip analog to digital converter.

  • Page 12: Calibration

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 12 of 16 CALIBRATION CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this TOLERANCE TABLE procedure. Remove hands from the system when noting the displayed APPLIED HIGH calibration results.
  • Page 13 Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 13 of 16 CALIBRATION (CON’T) SETTING CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. STEP 1: Remove the two (2) screws on the display assembly cover.

  • Page 14: Troubleshooting

    Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 14 of 16 TROUBLESHOOTING SYMPTOM REASON/CORRECTIVE ACTION Press the “WEIGH” button or disconnect power. Wait five The characters only appear on half of the seconds, then re-connect the power and try the “WEIGH” display.

  • Page 15: Warranty

     15% fee will be assessed on return of current merchandise  No fees will be charged if the scale is returned because of an error on the part of SR Instruments, Inc.  No returns accepted after 30 days.
  • Page 16 Model SR7000i Wall Mount Platform Scale Operating and Service Manual Part No. MAN7000i_MICROBAN_210616 Page 16 of 16 Instruments, Inc. Precision & Technology in ® Perfect Balance SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com Copyright 2021 SInstruments, Inc.
