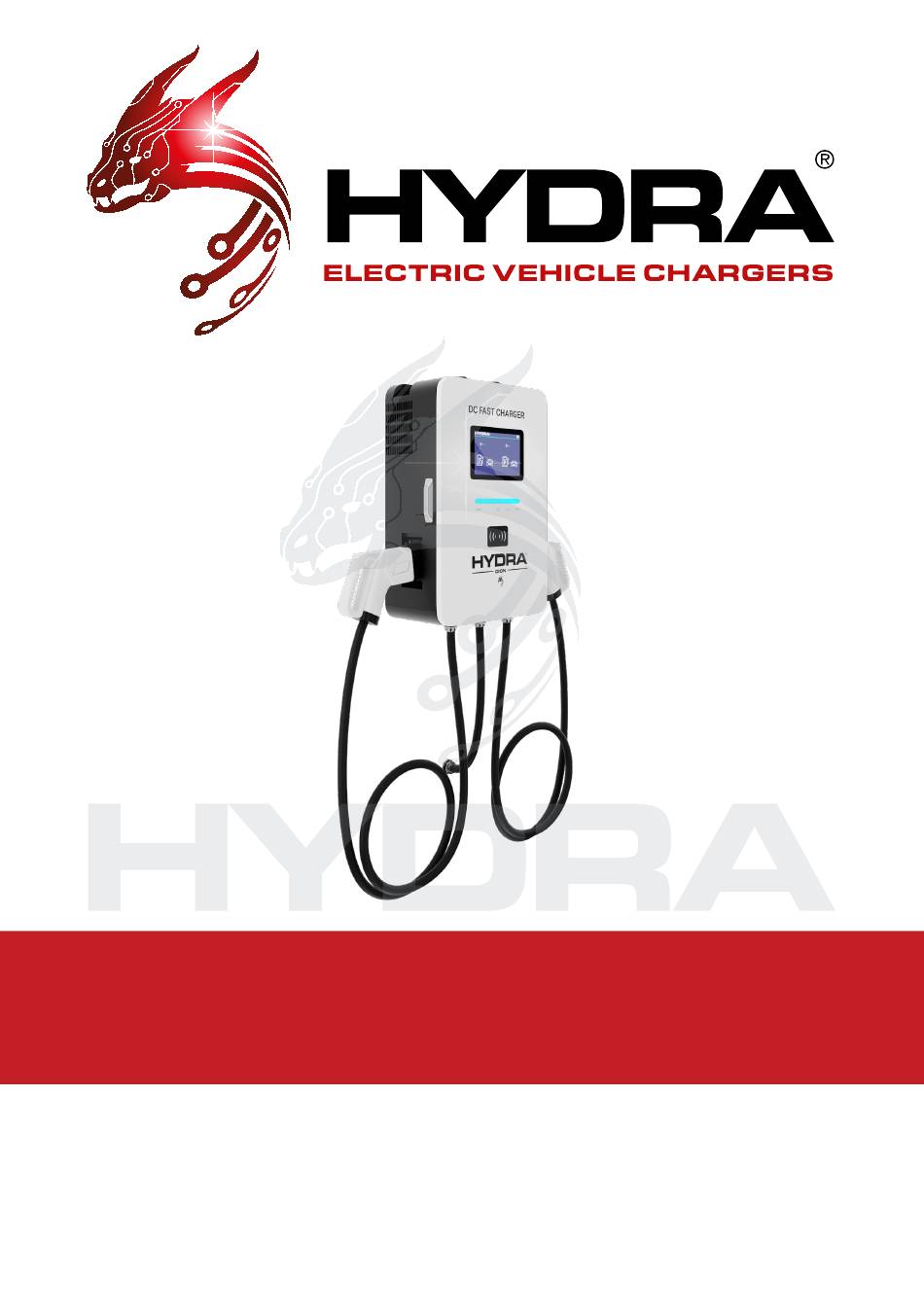

- Page 1 DION DC Wall-Mounted/Pedestal EV Charger ELECTRIC VEHICLE CHARGER INSTALLATION AND INSTRUCTION MANUAL DION-V001-21/09/2023...
-
Page 2: Table Of Contents
CONTENTS SAFETY ....................................3 INTRODUCTION..................................6 Appearance ..................................6 Technical Specifications ..............................8 Product Features ................................9 INSTALLATION ..................................10 Procedure ..................................10 Wall Mount Installation ..............................11 Pedestal Mount Installation ............................12 Wiring ....................................13 SCREEN INSTRUCTIONS ..............................14 Idle & Insert Connector ..............................14 RFID Swipe & Start Charging ............................15 Charging and Charging information ..........................16 Settings &... -
Page 3: Safety
SAFETY SAFETY ANNOUNCEMENTS Before operating the EV charger, read the instructions and precautions carefully to reduce the risk of accidents. The “caution, warning, hazard” notices in the product and product manual do not represent all safety concerns to be observed and are only intended to supplement the various operational safety precautions. In carrying out the company’s product and equipment operations, you must comply with relevant industry safety norms and strictly abide by these instructions to provide the appropriate equipment precautions and special safety instructions... - Page 4 SAFETY ELECTRICAL SAFETY HIGH VOLTAGE Some components of the power system operate with high voltage. Direct or indirect contact with these components through non-insulated protective material poses a fatal hazard. The installation of AC power supply equipment must comply with safety regulations, and personnel carrying out the installation of AC equipment must be qualified in high voltage AC-power operation.
- Page 5 SAFETY SHORT CIRCUITS It is strictly prohibited to short-circuit the power supply system to the positive and negative poles or to short the non-ground pole to ground during operation. Short circuits can cause equipment to burn and pose a personal safety hazard. In addition, the polarity of the cables and interface terminals must be strictly checked when carrying out live work.
-
Page 6: Introduction
INTRODUCTION APPEARANCE Commercial or Workplace Parking Material Metal Installation type Wall-Mounted/Pedestal Cable layout Bottom (Side Mounted) Charger: 64-70kg Weight Charging Cable: 6kG Cable length 4.5m Charging socket CCS2 ➍ ➍ ➌ ➌ ➊ ➊ ➏ ➏ ➋ ➋ ➎ ➎ ➐ ➐ Status indicator light Charging Lead Emergency Stop and Reset Button... - Page 7 INTRODUCTION TECHNICAL SPECIFICATIONS Model HD-30-DC-BLK HD-40-DC-BLK HD-20-DC-BLK Input Rating AC380V(±15%) 3ph AC380V(±15%) 3ph AC380V(±15%) 3ph AC Input Connection 3P+N+PE 3P+N+PE 3P+N+PE Rate Input Current 3Ø33A 3Ø50A 3Ø66A AC Input Frequency 50/60Hz 50/60Hz 50/60Hz Power Factor ≥ 0.99 ≥ 0.99 ≥ 0.99 Efficiency ≥...
-
Page 8: Technical Specifications
INTRODUCTION TECHNICAL SPECIFICATIONS Emergency stop button, LED indicator RFID Plug and charge, APP (timed start and DESIGN FEATURES Charging Method stop) 17 Charging Cable CCS2 Web interface WiFi, Wired Ethernet, 3G/4G COMMUNICATION OCPP OCPP 1.6J Indoor/Outdoor Operating -30°C ~ +55°C temperature Operating humidity 5% to 95%... -
Page 9: Product Features
INTRODUCTION PRODUCT FEATURES The HYDRA DION DC Charger has a modern design and user-friendly interface, designed for Commercial and workplace use. SAFETY FEATURES Hardware protection features: Emergency stop protection Overcurrent protection Earth leakage protection Comprehensive software protection features, providing multiple protections... -
Page 10: Installation
INSTALLATION PROCEDURE SAFETY INSTRUCTIONS The operating voltage and current inside the charging system are high, and the following regulations should be observed at all times to ensure personal safety: 1. Charging systems must only be installed by personnel who have been trained in, and have sufficient knowledge of, the charging system. -
Page 11: Wall Mount Installation
INSTALLATION WALL MOUNTED INSTALLATION Select appropriate 2. Knock the expansion pipe 3. Use M10/M12 bolts to installation position and drill into the hole horizontally fix the mounting the screw holes positions plate to the wall. according to the mounting plate mark. 4. -
Page 12: Pedestal Mount Installation
INSTALLATION PEDESTAL INSTALLATION 1. Install the column in place 2. Use M10/M12 bolts to fix the mounting plate on the column (holes are reserved on the column). 3. Hang the charger on the 4. After installation, connect the mounting plate. incoming line (minimum 3 x16mm^2 for the live cables and 2 x 10mm^2 for earth and neutral) to the power... -
Page 13: Wiring
INSTALLATION WIRING Colour Brown Black Grey Blue Yellow & Green Phase order ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 14: Screen Instructions
SCREEN INSTRUCTIONS 1. IDLE 2. INSERT CONNECTER & CLICK RFID ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 15: Rfid Swipe & Start Charging
SCREEN INSTRUCTIONS 3. SWIPE THE RFID CARD 4. START CHARGING ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 16: Charging And Charging Information
SCREEN INSTRUCTIONS 5. CHARGING 6. CLICK THE BATTERY TO VIEW CHARGING INFORMATION ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 17: Settings & Login
SCREEN INSTRUCTIONS 1. CLICK THE COG 2. ENTER 123456 FOR PASSWORD USER 123456 ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 18: Network Settings
SCREEN INSTRUCTIONS 1. CLICK NETWORK SETTINGS 2. NETWORK SETTINGS & NETWORK SELECTION ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 19: Ocpp Settings
SCREEN INSTRUCTIONS 1. CLICK OCPP SETTINGS 2. ENTER DETAILS ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 20: After-Sales Maintenance
AFTER-SALES MAINTENANCE AFTER-SALES SERVICE Parts are covered by a 12 months warranty. During this period any defective part will be replaced. One-to-one technical engineer support is available. DISCLAIMER Product equipment must be used under certain conditions. Should the following circumstances lead to an accident or damage, we will not be held responsible. -
Page 21: Maintenance
AFTER-SALES MAINTENANCE MAINTENANCE SEMI-ANNUALLY Check ground bolt torque and tighten if required. ANNUALLY Check all internal components. ON-SITE MAINTENANCE This device is an internet of Things-type charger with pre-charge self-test, daily regular self-test, online monitoring of electrical parts and other intelligent functions. If working, simply perform routine maintenance, no overhaul maintenance is required. -
Page 22: Procedures
PROCEDURES DURING INSTALLATION, REPAIR AND REPLACEMENT OF SPARE PARTS Live work is strictly prohibited. Unauthorised dismantling is strictly prohibited. Follow safety procedures when operating the equipment. Access to the power supply line should be followed in the PE ground -> zero-line -> phase line order. All operations must comply strictly with relevant safety standards. -
Page 23: Support
SUPPORT SUPPORT CONTACT DETAILS If you require any assistance feel free to contact us on the details below: Telephone: 01268 205 121 Email: support@hydraev.co.uk website: www.hydraev.co.uk ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... - Page 24 HYDRA EVC Ltd Telephone: 01268 205 121 Email: sales@hydraev.co.uk Unit 11, Totman Close, Rayleigh, Essex SS6 7UZ DION-V001-25/01/2023...
