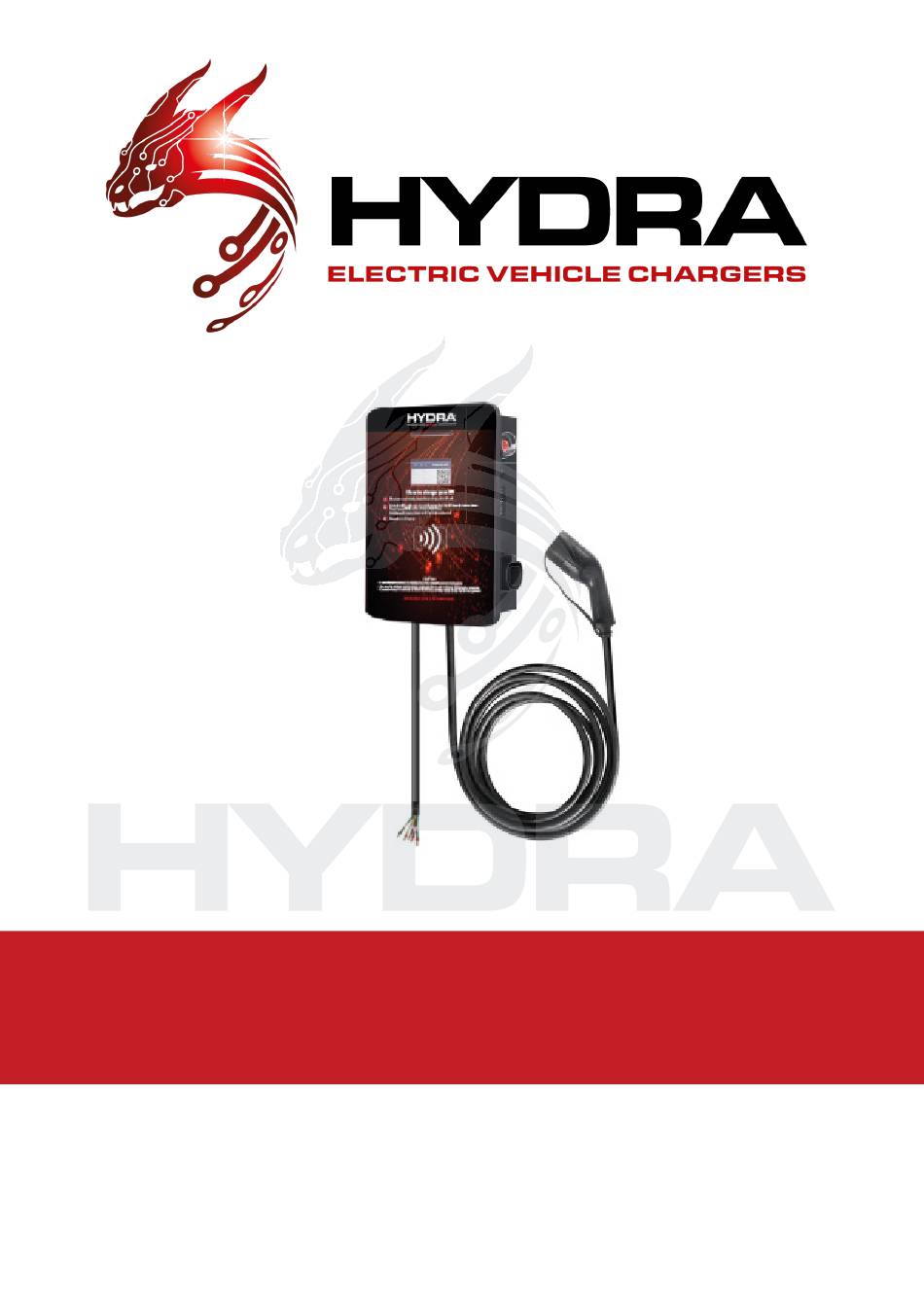

- Page 1 ECHO AC Wall-Mounted EV charger ELECTRIC VEHICLE CHARGER INSTALLATION AND INSTRUCTION MANUAL...
-
Page 2: Table Of Contents
CONTENTS SAFETY ....................................3 Safety Identification ...............................3 INTRODUCTION..................................6 Appearance ..................................6 Technical Specifications ..............................7 Technical Specifications (Continued) ..........................8 Product Features ................................9 INSTALLATION ..................................10 Procedure ..................................10 Network connectivity requirements ..........................11 Tool preparation ................................12 Socket and Tethered ..............................13 Internal Structure ................................14 Product Parameter ...............................15 List of Products and Accessories ..........................16 Site Space Requirements ............................17 Installation Instructions ...............................18... -
Page 3: Safety
SAFETY SAFETY ANNOUNCEMENTS Before operating the EV charger, read the instructions and precautions carefully to reduce the risk of accidents. The “caution, warning, hazard” notices in the product and product manual do not represent all safety concerns to be observed and are only intended to supplement the various operational safety precautions. In carrying out the company’s product and equipment operations, you must comply with relevant industry safety norms and strictly abide by these instructions to provide the appropriate equipment precautions and special safety instructions... - Page 4 SAFETY ELECTRICAL SAFETY HIGH VOLTAGE Some components of the power system operate with high voltage. Direct or indirect contact with these components through non-insulated protective material poses a fatal hazard. The installation of AC power supply equipment must comply with safety regulations, and personnel carrying out the installation of AC equipment must be qualified in high voltage AC-power operation.
- Page 5 SAFETY SHORT CIRCUITS It is strictly prohibited to short-circuit the power supply system to the positive and negative poles or to short the non-ground pole to ground during operation. Short circuits can cause equipment to burn and pose a personal safety hazard. In addition, the polarity of the cables and interface terminals must be strictly checked when carrying out live work.
-
Page 6: Introduction
INTRODUCTION APPEARANCE Car Parks / Public Charging Station Material Metal housing Installation type Wall Mounted Cable layout Bottom Weight 5-10kg Cable length Charging socket Type2 Touch Screen ➍ ➍ Door Lock RFID Card reader ➊ ➊ LED status lights Power input RJ45 input ➋... -
Page 7: Technical Specifications (Continued)
INTRODUCTION TECHNICAL SPECIFICATIONS Dimensions 500(H)mm x 370(W)mm x 290(D)mm Weight 5kg (no cable) -10kg (with cable) COMPONENT Cable length ≥4.2m/SOCKET SPECIFICATIONS Shell material Aluminium Alloy Screen 5” LCD touch screen TN-S 240V AC (single phase) Input voltage 400V AC (three phase) ±10% Input frequency 50hz/60hz 7kW (single phase) - Page 8 INTRODUCTION TECHNICAL SPECIFICATIONS (CONTINUED) Indoor/Outdoor Operating temperature -30°C ~ +55°C Operating humidity 5% to 95% Elevation <2000m WORKING Protection level IP55 ENVIRONMENT Cooling method Ambient air cooling Ground detection 30mA Sound level ≤50db (normal input/output power at ambient 25°C) RoHS Meets the R5 requirements of the RoHS directive ✆...
-
Page 9: Product Features
INTRODUCTION PRODUCT FEATURES The HYDRA ECHO AC Charger has a modern design and user-friendly interface, designed for domestic and workplace use. SAFETY FEATURES Hardware protection features: Overcurrent protection Overvoltage protection Over-temperature protection Emergency stop protection Lightning protection Type B RCD... -
Page 10: Installation
INSTALLATION PROCEDURE SAFETY INSTRUCTIONS The operating voltage and current inside the charging system are high, and the following regulations should be observed at all times to ensure personal safety: 1. Charging systems must only be installed by personnel who have been trained in, and have sufficient knowledge of, the charging system. -
Page 11: Network Connectivity Requirements
INSTALLATION NETWORK CONNECTIVITY REQUIREMENTS The recommended way to connect to the network is to access 4G wireless communication. A SIM card meeting local networking requirements is required. Make sure the local signal strength is strong and stable; otherwise a signal amplifier must be installed. If there is no local 4G communication signal, a standard wired internet connection is available. -
Page 12: Tool Preparation
INSTALLATION TOOL PREPARATION STANDARD TOOLS NAME DESCRIPTION Multimeter Checking the electrical connections and electrical parameters Electric impact drill Drilling Impact drill bit (Ø 14mm) Drilling Tape measure (5m) Measurement Level ruler Measurement Crosshead screwdriver Unpacking Pliers Unpacking Wire Stripper Removing the insulation sheath / jacket Terminal pressure line pliers Pressing the terminals Bevel cutting pliers... - Page 13 INSTALLATION SOCKET ➌ ➌ ➏ ➏ ➎ ➎ 1.LCD Screen ➊ ➊ 2.Rfid 3.LED Light 4.Type2 Socket 5.LAN port ➋ ➋ ➍ ➍ 6. E-STOP TETHERED ➌ ➌ ➏ ➏ ➎ ➎ ➊ ➊ ➋ ➋ 1.LCD Screen ➍ ➍ 2.Rfid 3.LED Light 4.Type2 Socket...
-
Page 14: Internal Structure
INSTALLATION INTERNAL STRUCTURE ➊ ➊ 1. LED Light Bar ➋ ➋ 2. 4.3 inch screen 3. RFID Card Module ➌ ➌ ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... - Page 15 INSTALLATION INTERNAL STRUCTURE ➊ ➊ ➌ ➌ ➋ ➋ ➍ ➍ ➎ ➎ ➐ ➐ ➏ ➏ Motherboard LAN Port RCD Switch Protective Earth Input Power Wires A+6 leakage insurance LAN Port Extension Cable MID Certified Electric Meter ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
-
Page 16: Product Parameter
INSTALLATION PRODUCT PARAMETERS Product Series Commercial-SINGLE Tethered Commercial-SINGLE SOCKET Charging interface IEC 61851 GB/T 20234 GB/T 18487- IEC 61851 2015, GB/T 20234-2015 Input Voltage Range 220VA ± 20% (1-phase) / 380VA ± 20%(3-phase) Output Voltage Range 220VA ± 20% (1-phase) / 380VA ± 20%(3-phase) Rated output current Rated power 7kW/ 22KW... -
Page 17: List Of Products And Accessories
INSTALLATION LIST OF PRODUCTS AND ACCESSORIES Name Specification / Quantity Remarks Material EV Charging Station EV Charger Body Installation Manual Expansion Screw M10X80 For installation of EV Charing station and ground Anti-theft Screws M4X10 with lock For wall brackets 1 and 2 to core be mounted to the body of the EV Charging station... -
Page 18: Installation Instructions
INSTALLATION INSTALLATION INSTRUCTIONS TRANSFER LOADING AND UNLOADING Do not drop or hit the device. INSTALLATION Secure the base to the wall. NB: To avoid the back plate distorting when being screwed onto the wall, it is recommended that you fix each screw loosely one at a time and then tighten slowly once all screws are in place. -
Page 19: Electrical Requirements
INSTALLATION ELECTRICAL REQUIREMENTS Cable type: Three-phase, five-core (TN-C-S/TN-S) confirming the need for shielding as required by local laws or norms. Single Phase, three core, as above. Cable diameter requirements are determined by the contractor or electrical engineer, based on power, distance and industry standards, or the following recommendations: ZR-YJV-multi-core-sheath power cable. -
Page 20: Installation Step 1
INSTALLATION INSTALLATION STEP 1 Screw Type Quantity to be used (pcs) Description (use) Expansion screws,stainless steel Mounting brackets 1,2 and M8X10 wall mounting Step 1 Confirm the location of the openings in the wall and tap in the expansion screws. ✆... -
Page 21: Installation Step 2
INSTALLATION INSTALLATION STEP 2 Step 2 Pay attention to distinguish the position of the upper and lower mounting brackets, unscrew the expansion screw nut and spacer, align the expansion screw holes, put in the spacer and tighten the nut. ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 22: Installation Step 3
INSTALLATION INSTALLATION STEP 3 Screw Type Quantity to be used (pcs) Description (use) Expansion screws,stainless steel For fixing of the body and M4X10 mounting bracket Step 3 Attach the EV Charging station body to the mounting bracket as shown in the illustration and tighten the four anti-theft screws. -
Page 23: Installation Step 4
INSTALLATION INSTALLATION STEP 4 Step 4 Remove the Anti-Theft screws to open the front door of the EV charging station. ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk... -
Page 24: Installation Step 5
INSTALLATION INSTALLATION STEP 5 Step 5 Wiring needs to meet the following requirements: The charging station should have an independent power distribution circuit and should not be shared with other electrical products. 6mm2 cable is required at the input end of the 3.5KW/11KW station, 10mm2 cable is required at the input end of the 7KW and 16mm2 on a 22KW station, and crimp terminals are required at the input end. -
Page 25: Aftersales
AFTER-SALES MAINTENANCE AFTER-SALES SERVICE Parts are covered by a three-year warranty. During this period any defective part will be replaced. One-to-one technical engineer support is available. DISCLAIMER Product equipment must be used under certain conditions. Should the following circumstances lead to an accident or damage, we will not be held responsible. - Page 26 AFTER-SALES MAINTENANCE MAINTENANCE (CONTINUED) SEMI-ANNUALLY Check ground bolt torque and tighten if required. ANNUALLY Check all internal components. ON-SITE MAINTENANCE This device is an internet of Things-type charger with pre-charge self-test, daily regular self-test, online monitoring of electrical parts and other intelligent functions. If working, simply perform routine maintenance, no overhaul maintenance is required.
-
Page 27: Procedures
PROCEDURES DURING INSTALLATION, REPAIR AND REPLACEMENT OF SPARE PARTS Live work is strictly prohibited. Unauthorised dismantling is strictly prohibited. Follow safety procedures when operating the equipment. Access to the power supply line should be followed in the PE ground -> zero-line -> phase line order. All operations must comply strictly with relevant safety standards. -
Page 28: Appendix
APPENDIX FAULT DIAGNOSTICS (CAUSE AND RESOLUTION) Display status Potential cause Recommended solution The display is black and Charger’s AC input is not Check that the charger input power supply is ok. AC cannot be illuminated powered. three-phase input voltage should be 240v per phase by touch and line voltage 400v. - Page 29 HYDRA EVC Ltd Telephone: 01268 205 121 Email: sales@hydraev.co.uk Unit 11, Totman Close, Rayleigh, Essex SS6 7UZ...
