- Page 1 Zodiac DLB Dynamic Load Balancing INSTALLATION MANUAL DLB-V0001-23/01/2023...
- Page 2 Hydra EVC Ltd reserves the right to make changes at any time without prior notice. Although this manual has been carefully checked, it does not guarantee the completeness and correctness of the contents of the manual, including but not limited to product specifications, functions, illustrations, etc.

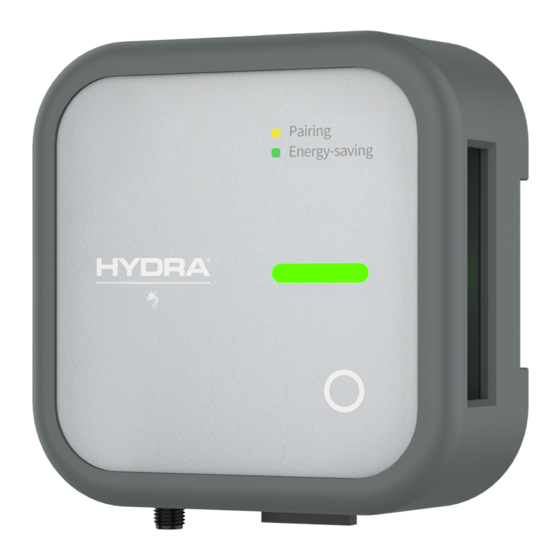

- Page 3 INTRODUCTION THE TRANSMITTER 1 Indicator light 4 Guide antenna interface 7 Rubber stopper 2 Pairing button 5 RJ45 interface 8 CT interface 3 Rail buckle 6 DIP switch 9 Reserved interface THE RECEIVER (THE ZODIAC) Pairing button LED Indicator light Socket ✆...
-
Page 4: Installation
INSTALLATION This device can only be used indoors or inside a cabinet, not outdoors. When selecting an installation site for the device, consider the environmental conditions listed in the table below. Equipment recommended installation environment table Ambient temperature -20°C~+40°C Altitude ≤2000m Humidity 5%~95%RH... - Page 5 L1, L2, and L3 phase Single Phase Three Phase 5 Please refer to the HYDRA ZODIAC installation manual for installation instructions (download from www.hydraev.co.uk/support) ✆ 01268 205 121 | www.hydraev.co.uk | sales@hydraev.co.uk...
- Page 6 PAIRING Wireless Pairing Quickly click the button in and out 3 times The indicator (a total of 6 presses of light flashes red the button) and green The indicator light flashes red, green and blue alternately Quickly click the pairing button 3 times The green light will flash The Blue light...
-
Page 7: Setting Up The App
1 Please scan the corresponding QR code to download the HYDRA HOME app and complete the registration. ANDROID IPHONE 2 Pair the Hydra Home App to the Zodiac Chargepoint and set up according to instructions in the app manual: www.hydraev.co.uk/support Tap the icon in the... -
Page 8: Troubleshooting
TROUBLESHOOTING Fault state RECOMMENDED TREATMENT Check whether the front-end charging transformer is good or bad and whether the connection is correct; check whether the Equalizer light is off input current reaches the minimum current value required for work. Check whether the pairing is successful; check whether the The equalizer light is on, but there is no distance between the transmitter and receiver is too far or there communication... - Page 9 HYDRA EVC Ltd Telephone: 01268 205 121 Email: sales@hydraev.co.uk Unit 11, Totman Close, Rayleigh, Essex SS6 7UZ DLB-V0001-23/01/2023...
