SERVICE MANUAL
2016
The top cover can now to be fully removed
PCB Removal from heatsink
ODE-3 FRAME SIZE 1 IP66

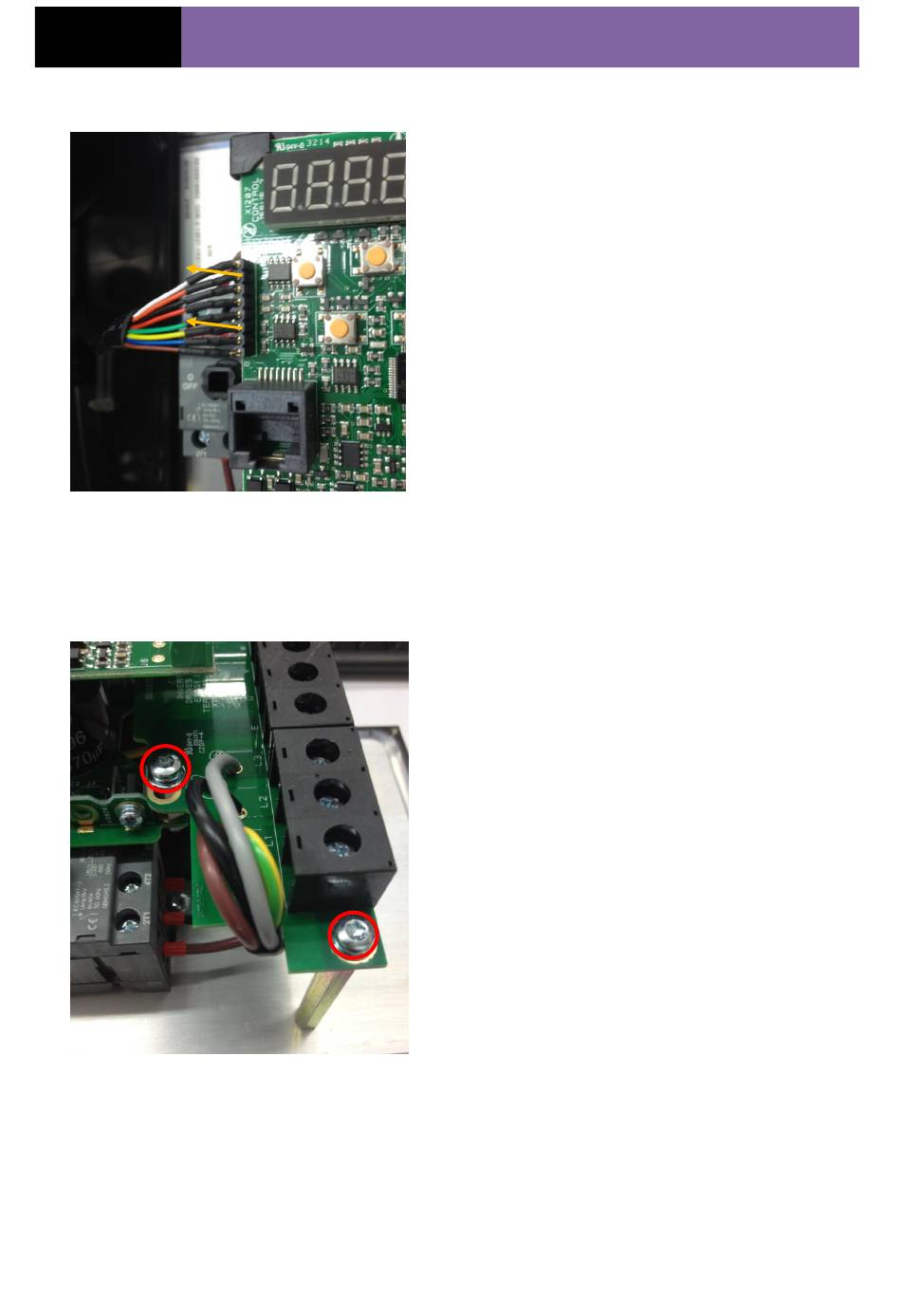

A ribbon cable is connected from
the top cover to the control
board.
Pull the connector away from the
control board in the direction
highlighted
Using a torx screwdriver T20,
remove the 2 x screws
highlighted opposite 1.5Nm
Page 5 of 6
