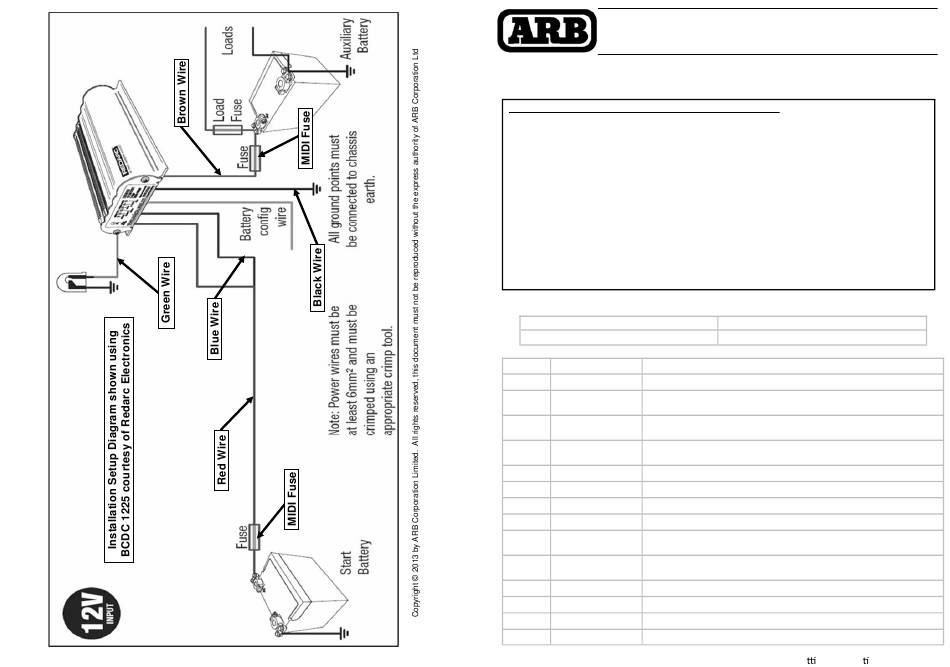

ARB 4300020 Fitting Instructions

Last Rev Date: 03/08/2016
4
FITTING INSTRUCTIONS
Part Number: 4300020
Product Description: WIRING KIT with MIDI Fuses to suit BCDC in ARB BATTERY TRAYS
Before commencing work, please take note of the following points:

This product must be installed exactly as per these instructions using only the hardware
supplied

It is recommended that this product is only installed by trained personnel

These instructions are correct as at the publication date. ARB Corporation Ltd. cannot be held
responsible for the impact of any changes subsequently made by the vehicle manufacturer

During installation, it is the duty of the installer to check correct operation/clearances of all
components

Work safely at all times

To avoid a potentially hazardous situation when fitting this product, it is suggested that
protective safety gear including eye protection be worn and safe work practices be employed

CAUTION: Securely fasten all wires away from any hot, sharp or moving surfaces. DO
NOT fasten wires to brake or fuel lines
REQUIRED TOOLS FOR FITMENT OF PRODUCT:
BASIC METRIC SPANNER AND SOCKET SETS
SIDE CUTTERS & PLIERS
ITEM DESCRIPTION
6 metres of Red Wire with ɸ5mm ring terminal on one end
1 BCDC Input
BCDC Source
6 metres of Blue Wire with ɸ8mm ring terminal on one end
2
Select
(2X) 0.3metres of Red Wire with ɸ8mm and ɸ5mm ring
Fuse to Input
3
Fuse to Output terminals on either ends
0.75 metres of Black Wire with ɸ8mm ring terminal on both
Battery Earth to
4
Chassis ends
0.75 metres of Black Wire with ɸ8mm ring terminal on one end
5 BCDC Earth
0.3metres of Red Wire with ɸ5mm ring terminal on one end
6 BCDC Output
7 MIDI Fuse (2X) 50A MIDI Fuses
8 Fuse Holder (2X) MIDI Fuse Holders with included M5 lock nuts
Positive Battery
Positive Terminal Clamp to suit ɸ8mm ring terminals
9
Terminal
Negative Battery
Negative Terminal Clamp to suit ɸ8mm ring terminals
10
Terminal
11 Cable Tie (15X) Cable Ties Black 200mm
0.07metres of ɸ4mm black heatshrink tubing
12 4mm Heatshrink
0.2metres of ɸ8mm black heatshrink tubing
13 8mm Heatshrink
14-16 Fasteners (4X) Screw M4, Washers and lock nuts
PVC INSULATION TAPE
SOLDERING IRON, SOLDER & HEAT GUN
CONTENTS
1
