Summary of Contents for CASO DESIGN Wine Safe 24

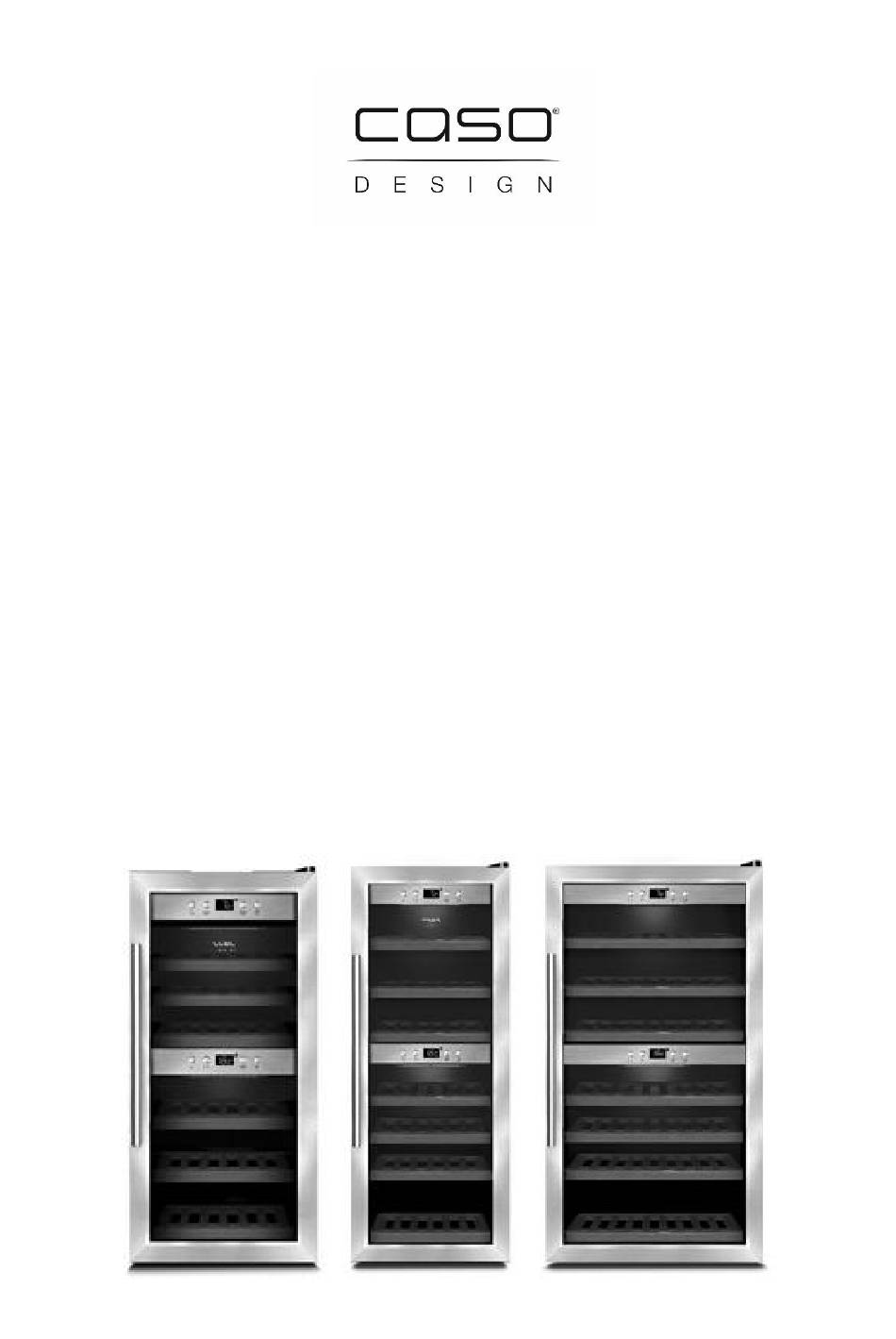

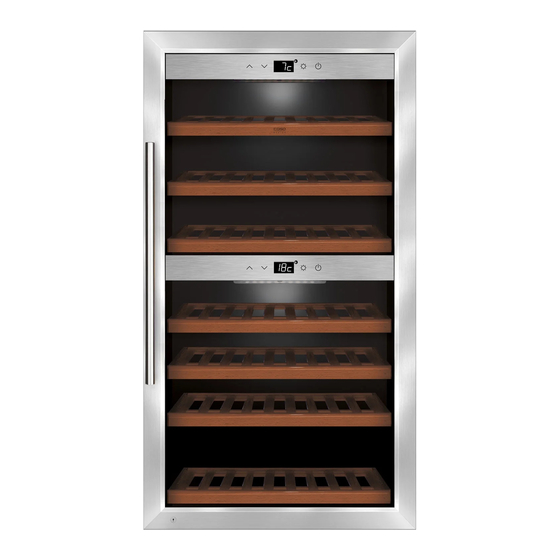

- Page 1 OPERATING MANUAL Wine Safe 24 Wine Safe 38 Wine Safe 66...
- Page 2 USA Branch CASO Design USA LLC 50 Mountain View Rd Warren, NJ, 07059 Info@CasoDesignUSA.com www.CasoDesignUSA.com T.: 908.604.0677 Document-Number: 10719, 10720, 10725 13-08-2018 Printing and typographical errors reserved. © 2018 CASO Design USA LLC...
-
Page 3: Table Of Contents
1. Operating Manual..................5 General ..........................5 Information on this manual ....................5 Warning notices ....................... 5 Limitation of liability ......................6 Copyright protection ......................6 Safety .....................6 Intended use ........................6 General Safety information ....................7 Sources of danger......................7 2.3.1 Risk of fire / flammable materials used. - Page 4 Guarantee .................... 17 10 Technical Data ..................18...
-
Page 5: Operating Manual
1. Operating Manual 1.1 General Please read the information contained herein so that you can become familiar with your device quickly and take advantage of the full scope of its functions. Your wine refrigerator will serve you for many years if you handle it and care for it properly. We wish you a lot of pleasure in using it! 1.2 Information on this manual These Operating Instructions are a component of the WineSafe (referred to hereafter as the... -
Page 6: Limitation Of Liability
1.5 Copyright protection This document is copyright protected. CASO Design USA LLC. reserves all the rights, including those for photomechanical reproduction, duplication and distribution using special processes (e.g. data processing, data carriers, data networks), even partially. Subject to content and technical changes. -
Page 7: General Safety Information
2.2 General Safety information Please note Please observe the following general safety notices with regard to the safe handling of the device. ► Examine the device for any visible external damages prior to using it. Never put a damaged device into operation. ►... -
Page 8: Dangers Due To Electrical Power
Danger ► Do not store explosive substances such as aerosol cans with a flammable propellant in this device. ► Blowing gas inside the unit is flammable. ► Do not damage the cooling circuit of the device. ► Do not use electrical devices inside the device. ►... -
Page 9: Delivery Scope And Transport Inspection
3.2 Delivery scope and transport inspection As a rule, the WineSafe is delivered with the following components: WineSafe 24 / WineSafe 38 / WineSafe 66 with WiFi equipment 7 wooden shelves (10720 / 10725) 6 wooden shelves (10719) ... -
Page 10: Legs/Feet
Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. -
Page 11: Wine Shelves
3.5.4 Wine shelves Usual shelf Lower shelf 3.5.5 To remove a shelf Remove all bottles from the shelves. Lift the shelf upwards and the gently pull it out, (eventually untighten the screws). Please note ► Ensure that the tabs are firmly engaged in place before storing any bottles. ►... -
Page 12: Design And Function
4 Design and Function This chapter provides you with important safety notices on the design and function of the device. 4.1 Complete overview (1) Up Hinge Cover (2) Door Sealing (3) Door Frame (lockable) (4) Door Handle (5) Down Hinge (adjustable foot) (6) Foot (7) Hot Air Outlet (8) Air inlet... -
Page 13: Operating Elements And Displays
5.1 Operating elements and displays Please note ► Use the buttons to set the temperature for both zones in the range of 68°F. ► Temperature recommendations: Red wine: 45°F – 65°F (ideal 55°F ) and white wine 40°F – 50°F. ►... -
Page 14: Wifi Control
5.2 WiFi control The device can optionally also be controlled / programmed by an app via WiFi. Download the CASO-App to your smartphone or tablet. Details about the app, the scope of operation and installation instructions can be found on our website www.casodesignusa.com 5.3 Rating plate The rating plate with the connection and performance data can be found on the back of the device. -
Page 15: Moving The Appliance
Container for condensed water (K) Remove the condensed water regularly with a sponge from the container for condensed water. The container is located on the back side of the device at the right bottom. Manual defrosting Please defrost the device at least every 6 months. When you open the door of the device frequently, you need to perform the defrosting more often. -
Page 16: Fault Indications And Rectification Of Faults
7.2 Fault indications and rectification of faults The following table assists in localizing and rectifying minor faults. Fault Possible Cause Wine refrigerator does not Not plugged in or using different voltage. The circuit breaker operate. tripped or a blown fuse. Your device is cold... -
Page 17: Disposal Of The Old Device
9 Guarantee 12 Months Limited Warranty Caso Design USA warrants that for a period of 12 months from the date of purchase, this product will be free from defects in material and workmanship. Caso Design USA at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. - Page 18 Caso Design USA disclaims all other warranties, conditions, or representations, express implied, statutory or otherwise. Caso Design USA shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
- Page 19 Name WineSafe 38 Smart Model SW-38 Connection 115V,60Hz 15.55” x 40.75” x 24.8” Outside dimensions (W/H/D) with handle Bottles 38 bottles Weight: 99.5 lbs Frequency band 2.4 - 2.4835 GHz Name WineSafe 66 Smart Model No. SW-66 Connection 115V,60Hz External measurements (W x H x D) with 23.43“...
