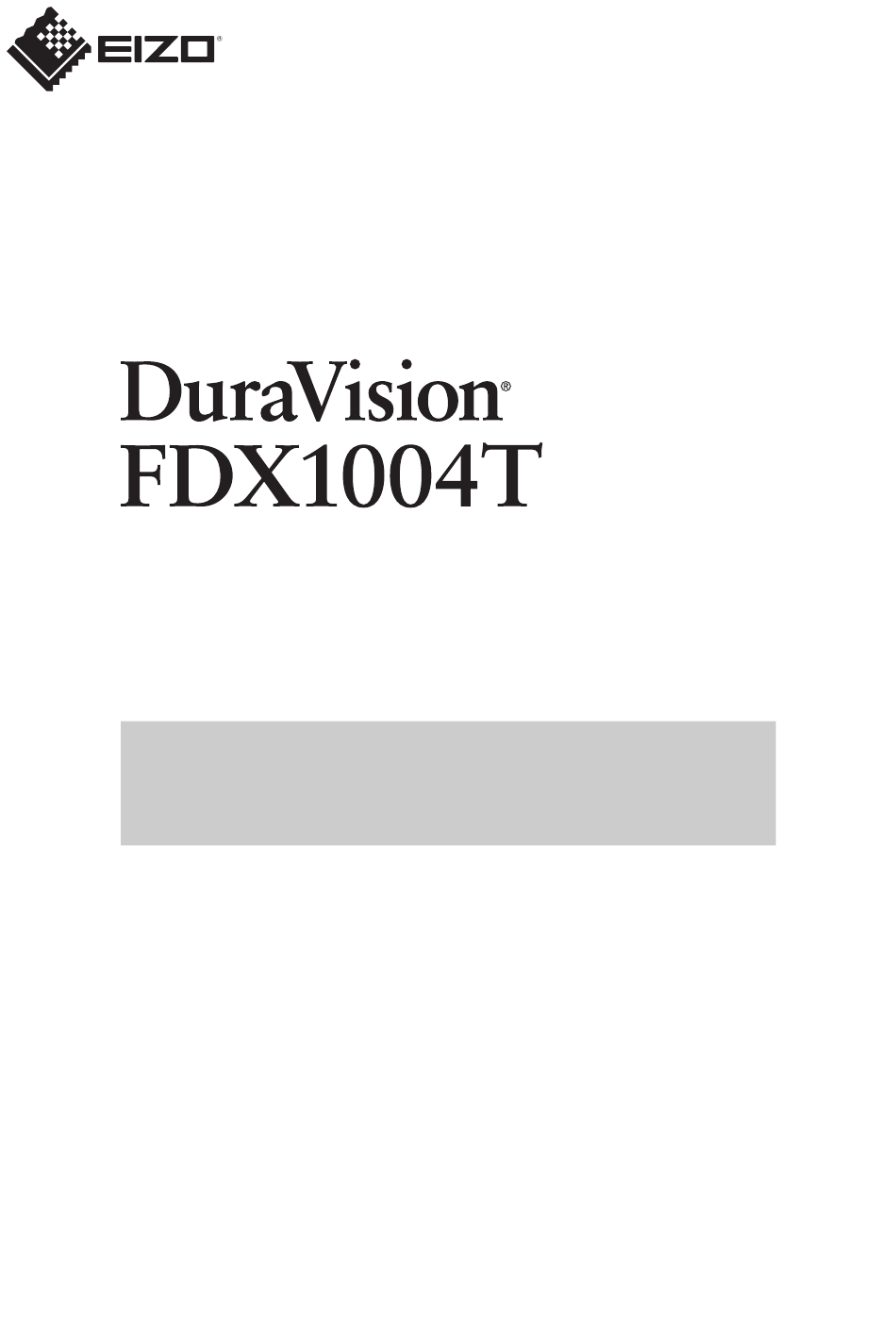

Setup Manual
Touch Panel Color LCD Monitor
Important
Carefully read this Setup Manual and User's Manual (downloaded
from the website) before use to use the monitor correctly.Please
retain this manual for future reference.
• Refer to the "User's Manual" for information on the setting / adjustment
of the monitor.
• You can check the latest product information, including the Setup
Manual, from our web site.
www.eizoglobal.com
Advertisement
Table of Contents
Related Manuals for Eizo DuraVision FDX1004T
Summary of Contents for Eizo DuraVision FDX1004T
- Page 1 Setup Manual Touch Panel Color LCD Monitor Important Carefully read this Setup Manual and User's Manual (downloaded from the website) before use to use the monitor correctly.Please retain this manual for future reference. • Refer to the "User’s Manual" for information on the setting / adjustment of the monitor.
- Page 2 EIZO Corporation. EIZO Corporation is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO Corporation’s receipt of said information.
-
Page 3: Precautions
PRECAUTIONS PRECAUTIONS Important This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside this region, the product may not perform as stated in the specifications. To personal safety and proper maintenance, please read carefully the "PRECAUTIONS" section and the caution statements on the monitor. -
Page 4: Warning
A unit placed on an inadequate surface may fall and result in injury. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock. - Page 5 PRECAUTIONS WARNING Use the unit in an appropriate location. Otherwise, fire, electrical shock, or equipment damage may result. • Do not place outdoors. • Do not place in any form of transportation (ships, aircraft, trains, automobiles, etc.). • Do not place in dusty or humid environments. •...
- Page 6 Before installation, make sure that desks, walls, or any other installation surface has adequate mechanical strength. If the unit falls, disconnect the power immediately and ask your local EIZO representative for advice. Do not continue using a damaged unit. Using a damaged unit may result in fire or electrical shock.
- Page 7 PRECAUTIONS WARNING For installment in high locations, ask for the help of a professional. When installing the monitor in a high location, there is a risk of the product or its parts falling and causing injury. Ask for help from us or from a professional who specializes in construction work when installing the monitor, including an inspection of the product for any damage or deformities both before and after installing the monitor.
-
Page 8: Caution
PRECAUTIONS CAUTION CAUTION Disconnect cables and remove accessories when moving the unit. Otherwise, the cables or accessories may become detached when moving, resulting in injury. CAUTION Carry or place the unit according to the correct specified methods. • When moving the product, hold the bottom of the monitor firmly. •... - Page 9 PRECAUTIONS CAUTION The AC adapter becomes hot during use. • Do not touch the AC adapter while it is energized. Touching it may cause a low temperature burn. • Do not cover or place anything on top of the AC adapter. Do not place the AC adapter on top of things that trap heat such as carpets, blankets, etc.
-
Page 10: About This Product
When the screen becomes dark or begins to flicker, please contact your local EIZO representative. • Do not scratch or press on the LCD panel with any sharp objects, at this may result in damage to the LCD panel. -
Page 11: About The Installation
About This Product About the Installation • If you place this product on a lacquer-coated desk, the color may adhere to the bottom of the stand due to the composition of the rubber. Check the desk surface before use. • Dew condensation may form on the surface or interior of this product when it is brought into a cold room, when the temperature suddenly rises, or when it is moved from a cold room to a warm room. -
Page 12: Table Of Contents
CONTENTS CONTENTS PRECAUTIONS ......................Important ......................Location of Caution Statement..............Symbols on the unit ................WARNING......................CAUTION ......................About This Product ....................10 About the Usage of This Product ................ 10 About the LCD Panel ..................10 About the Installation................... 11 Cleaning ...................... - Page 13 CONTENTS For U.S.A., Canada Only ................ 24 LIMITED WARRANTY ..................25...
-
Page 14: Introduction
1 | Introduction 1 Introduction Thank you very much for choosing an EIZO color LCD monitor. 1.1 Package Contents Check that all of the following items are included in the package. If any of these are missing or damaged, contact your dealer or local EIZO representative listed separately. -
Page 15: Controls And Functions
Introduction | 1 1.2 Controls and Functions 1.2.1 Front button Switches the input signals to be displayed. button Switches the color mode. button Displays the Setting menu, confirms the adjustment items of each menu, and saves adjustment results. button Selects menu items, adjusts/sets functions, and displays the brightness adjustment screen while the Setting menu is displayed. -
Page 16: Rear
1 | Introduction 1.2.2 Rear 1. Power jack (DC-IN) Connects the AC adapter. 2. USB-B connector Connect a USB cable to the monitor when you use it as a touch (upstream) panel monitor. 3. DisplayPort™ connector Connects to a PC with DisplayPort output. 4. -
Page 17: Installation / Connection
Installation / Connection | 2 2 Installation / Connection 2.1 Connecting Cables Attention • Check that the monitor, PC, and peripherals are powered off before connecting. • When replacing the current monitor with this monitor, refer to "Compatible Resolutions" in the User's Manual to change the PC settings for resolution and vertical scan frequency to those that are available for this monitor, before connecting the PC. -
Page 18: Turning On The Power
2 | Installation / Connection 2. Use either the USB cable or the RS-232C cable to connect the PC to the monitor. USB-B USB-A USB cable (included) RS-232C RS-232C RS-232C cable*1 (commercially available) Cross type. The connector type on the monitor is D-Sub 9-pin. In the default settings, RS-232C serial transfer is disabled. -
Page 19: Adjusting The Screen Angle
Installation / Connection | 2 2.3 Adjusting the Screen Angle Hold the left and right edges of the monitor with both hands, and adjust the angle of the screen to the optimum position for performing tasks. Attention • After making the adjustment, make sure that the cables are correctly connected. 2.4 Installing the Touch Panel Driver Attention •... -
Page 20: Reference
3 | Reference 3 Reference 3.1 Attaching an Optional Arm A monitor arm (or stand) can be attached by removing the stand section. When attaching a monitor arm or stand, the installable orientations and movement range (tilt angle) are as follows: • Orientation •... - Page 21 Reference | 3 When using commercially available screws, use screws that meet the following conditions. – Nominal diameter: M4 – Length: Between 6.5 mm and 9.5 mm (if using washers, add the washer thickness)
-
Page 22: Specifications
Supported Operating Systems Windows 11 Windows 10 (32 bit / 64 bit) These cannot be used simultaneously. EIZO support will end when OS vendor support ends. 3.2.3 Video Signals Input Terminals DisplayPort (HDCP 1.3 compatible) x 1, HDMI (HDCP 1.4 compatible) -
Page 23: Ac Power
Reference | 3 3.2.5 AC Power Input 100 – 240 VAC ± 10 %, Max. 0.3 A (100 VAC), max. 0.2A (240 VAC) Maximum Power Consumption 15 W or less Power Save Mode With USB connection 1.5 W or less Without USB connection 0.5 W or less Standby Mode (standard value) 0.3 W No external load is connected, default setting... -
Page 24: Appendix
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. • AC Cord •... - Page 25 Original Purchaser or any third parties other than as provided under this Warranty. EIZO and Distributors will cease to hold or store any parts (excluding design parts) of the Product upon expiration of seven (7) years after the production of the Product is discontinued.
- Page 26 The Warranty Period for any replaced and/or repaired product under this Warranty shall expire at the end of the original Warranty Period. EIZO OR DISTRIBUTORS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO, OR LOSS OF, DATA OR OTHER INFORMATION STORED IN ANY MEDIA OR ANY PART OF ANY PRODUCT RETURNED TO EIZO OR DISTRIBUTORS FOR REPAIR.
- Page 27 153 Shimokashiwano, Hakusan, Ishikawa 924-8566 Japan Belgrader Straße 2, 41069 Mönchengladbach, Germany 中国苏州市苏州工业园区展业路8号中新科技工业坊5B 00N0N459A1 www.eizoglobal.com SUM-FDX1004_T Copyright © 2024 EIZO Corporation. All rights reserved. 1st Edition – February, 2024...
