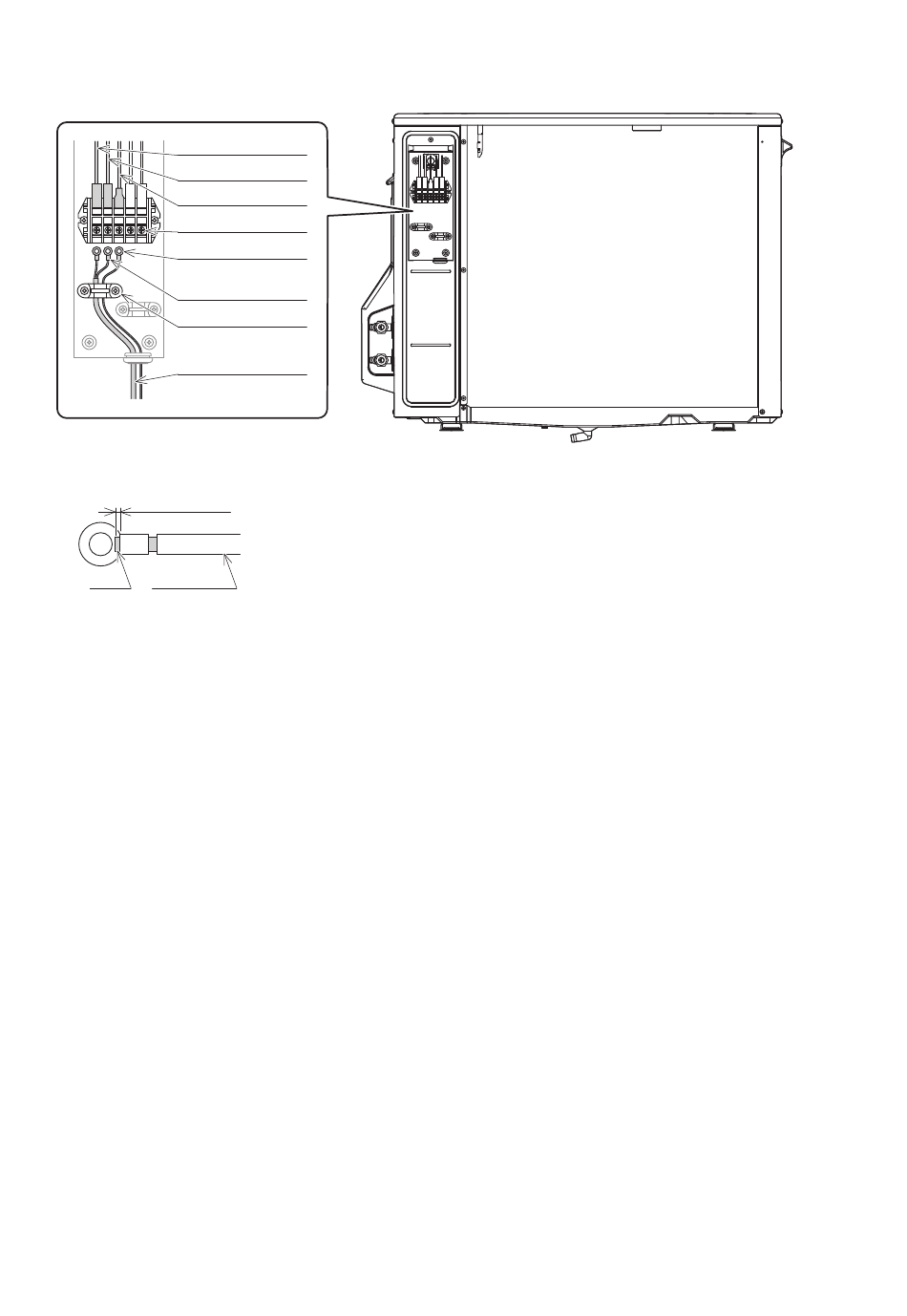

Figure 6:Main Power Connection
Black
White
Green/Yellow
5×M4 Screws
Ground
Power supply
208/230V
Wire holder band
Power line
Heat Pump 208/230V Power Wiring must use solid copper wire.
Appropriately sized ring or fork terminals are recommended for easier connection.
0.5mm〜1mm
Core
Power wire
SANCO
Heat Pump – Installation Manual
