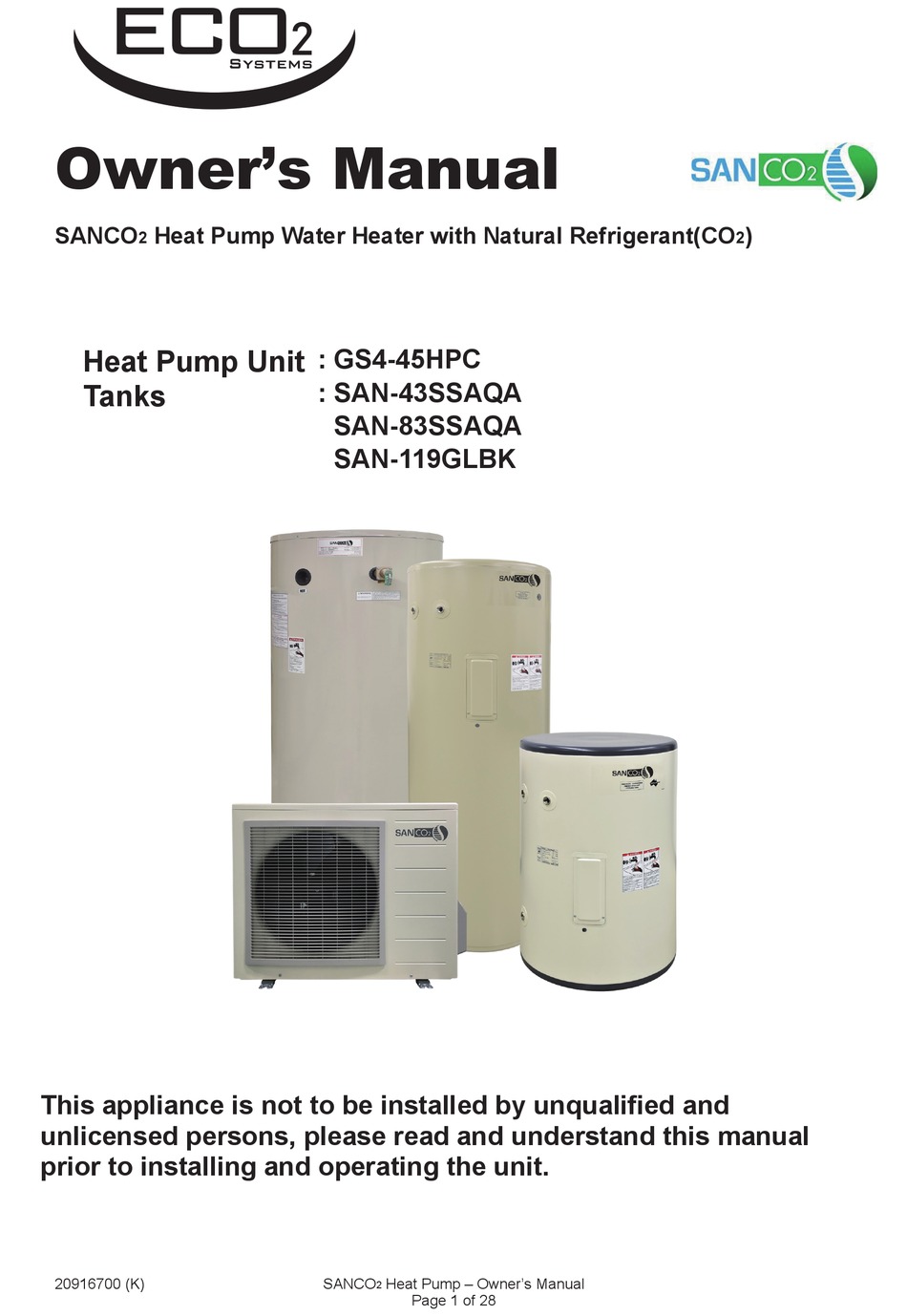

Owner's Manual
SANCO
Heat Pump Water Heater with Natural Refrigerant(CO
2
Page title
Covering model numbers for residence
O O w w n n e e r r ' ' s s m m a a n n u u a a l l
Heat Pump Unit
Heat Pump Unit
Tanks
Covering model numbers for residence
Heat Pump Unit
※This manual is for TO BE USED
by the installing Contractor
only.
This appliance is not to be
This appliance is not to be installed by unqualified and
please read and understand this manual prior to installing and operating the unit.
unlicensed persons, please read and understand this manual
prior to installing and operating the unit.
20916700 (K)
GS3-45HPA-US
: GS4-45HPC
: SAN-43SSAQA
SAN-83SSAQA
SAN-119GLBK
GS3-45HPA-US
installed by unqualified and unlicensed persons,
Sanden Heat Pump – Installation Manual
SANCO
Heat Pump – Owner's Manual
2
Page 1 of 40
Page 1 of 28
Sanden Heat Pump – Owner's Manual
)
2
Advertisement
Table of Contents
Related Manuals for ECO2 Systems SANCO2 GS4-45HPC
Summary of Contents for ECO2 Systems SANCO2 GS4-45HPC
- Page 1 Page title Owner’s Manual SANCO Heat Pump Water Heater with Natural Refrigerant(CO Page title Covering model numbers for residence O O w w n n e e r r ’ ’ s s m m a a n n u u a a l l Heat Pump Unit GS3-45HPA-US Heat Pump Unit...
-
Page 2: Table Of Contents
This water heater may be protected by one or more patents or registered designs in the name of ECO2 System LLC TRADE MARKS ® Registered trademark of ECO2 Systems LLC Note: Every care has been taken to ensure accuracy in preparation of this publication. -
Page 3: Introduction
Introduction Introduction The Sanden Sanco SANCO Heat Pump Water Heater System has been designed using the latest The Sanden Heat Pump Water Heater System has been designed using the latest refrigeration technology to remove the heat from the air to heat water. The refrigerant used refrigeration technology to remove the heat from the air to heat water. - Page 4 ■ The extent of the possible harm or damage caused by misuse of the product falls into the following classifications. Indicates an imminently hazardous situation that will result in death Danger or serious injury in case it is not avoided. The column with this classification indicates “the extent of harm that Warning includes the possibility of death or serious injury”.
- Page 5 Warning If the water heater has been subjected to fire, flood, natural disasters or physical damage, DO NOT operate the water heater again until it has been checked by a qualified service technician. Failure to do so will cause injury. Hydrogen gas can be produced in a hot water tank served by this water heater that has not been used for two weeks or more.
- Page 6 Warning ・Please contact the Dealer about insulating the pipes. ・Contact the Dealer for repair. Sanden Heat Pump – Owner’s Manual Page 5 of 20 SANCO Heat Pump – Owner’s Manual Page 6 of 28...
- Page 7 Caution Could harmfully influence performance and lead to failure. Could significantly influence performance and lead to failure. Check the installation conditions of the unit. Check the installation conditions of the unit. Installation of the unit in the following places could result Installation of the unit in the following places could result in accidents or failure and the performance of the unit in accidents or failure and the performance of the unit...
-
Page 8: Installation Details
Installation details Installation Details This Sanden Eco Hot water Heat Pump System must be installed by licensed personnel in SANCO accordance with local building codes: Installing contractor should be licensed by applicable state/province and municipal authorities to install an Electrical & Plumbing product. The unit has been designed for heating potable domestic hot water and any other ... -
Page 9: Trouble Shooting Guide
Trouble shooting guide Trouble Shooting Guide If you face a problem while using our Heat Pump water heater system, please check the If you are faced with a problem in using our Hot Water Heat Pump system, please check following table prior to calling for support. the following items, before seeking professional help. -
Page 10: Error Codes
Error Codes When an error has occurred, a red LED on the operation panel turns on and an error code is displayed on the LED display. The panel does not turn to the display sleep mode while the error code is shown. Figure 3 Error Code example Below is the list of the error codes. -
Page 11: Filling The System & Bleeding Air
Filling the System & Bleeding Air Removing air from the system Please note: The following steps must be taken to ensure all air is bled from the system. Incorrect bleeding of air may cause the water temperature to vary during operation. Plumbing work should only be completed by a licensed plumber Ensure that all piping to tank unit and heat pump unit are installed and •... -
Page 12: Mains Power/Electrical Installation
Mains Power/Electrical Installation All Electrical Wiring should be done in accordance with the latest edition of the National Electrical Code (NEC) and all local State/Province and Municipality codes. The power requirement for the system is a dedicated 15 amp circuit fitted with a ... - Page 13 How to Connect Main Power Remove the power box cover (Philips head screwdriver required) Connect the power wiring to the terminal block per the wiring diagram/manual. Ensure ground wire is connected. Secure the power supply wiring below the terminal block with the screw clamp fitting. Re attach the power box cover to the heat pump unit.
-
Page 14: How To Connect Thermistor Cable
How to Connect Thermistor Cable Remove the piping cover. Power supply 208/230V Connect the thermistor cable line to the terminal block. Ground Fix the thermister cable with the code clip and conduit clip. Wire holder band Attach the piping cover back on the heat pump unit. Power line Green Blue... -
Page 15: System Operation If Connected To Dry Contact
There are no special settings for the Demand Response. The system will run once power becomes available and the temperature in the tank drops below the set point of the tank thermistor. System Operation If Connected to Dry Contact ... -
Page 16: Water Supply Quality
Water Supply Quality (Supplemental) Chloride and PH Water Supply Quality In areas with a high concentration of chloride in the water, that water can cause Water Supply Quality Chloride, Water Hardness and pH corrosion and subsequent failures. Where the chloride level exceeds 0.1 ounces per In high chloride water supply areas, the water can corrode some parts and cause them gallons (200 mg/litre), the warranty is no longer valid on to the heat pump unit and tank Chloride, Water Hardness and pH... -
Page 17: Technical Data
Technical data Technical Data Hot water storage tank unit Material information Storage tank material Stainless steel Outside casing Colour coated zinc steel Sanden Heat Pump – Owner’s Manual SANCO Heat Pump – Owner’s Manual Page 15 of 24 Page 17 of 28... - Page 18 Specifications Heat Pump Stainless Steel Stainless Steel Storage Tank Dimensions Storage Tank " 11" Tank Model No: SAN-43SSAQA SAN-83SSAQA SAN-119GLBK* 119-gal. sys. Height " ” 5” 3.23 B Hot Water Outlet & PR Valve " ” 56” 130 gallons C Heat Pump Return "...
- Page 19 GS4-45HPC Dimensions GS3-45HPA-US Dimensions DRAIN CONNECTOR 16.24” 3.86” 4.82” 22.83” 4.82” 0.91” 32.48” 2.7” 0.88” 11.81” 2.39” 5.85” 1.08” HP INLET (COLD WATER) PT1/2 HP OUTLET (HOT WATER) PT1/2 Unit ： inch Specification Refrigerant type R744(CO2) Refrigerant type R744(CO2) Mass volume 25.4oz (720g) Mass volume 22 oz.
- Page 20 Residential DHW application ; Heat Pump unit Eco2 Systems LLC warrants all parts & labor on the SANCO₂ system for a period of 3 years from date of installation and a further 7 years on Parts only excluding shipping costs.
- Page 21 1-3.1. Combined DHW/Heating application ; Heat Pump unit Eco2 Systems LLC warrants all parts & labor on the SANCO₂ combi system for a period of 2 years from date of installation and a further 5 years on Parts only excluding shipping costs.
- Page 22 Warranty Exclusions Repair and replacement work will be carried out as set out in the Eco2 Systems LLC Heat Pump Water Heater System warranty. However the following exclusions may void the warranty and may incur additional service charges and/or cost of parts: 3-1.
- Page 23 Eco2 Systems LLC shall not be liable by virtue of this warranty or otherwise for damage to any persons or property, whether direct or indirect, and whether arising in contract or in tort.
- Page 24 Exhibit A: Labor Costs Labor costs are paid per the payment cost schedule published by Eco2 Systems LLC and revised from time to time at Eco2 Systems LLC’s requirement. Labor warranty specifically excludes (unless agreed to in writing prior to service being carried out) costs...
-
Page 25: Registration For Warranty
In order to register your system for warranty purposes, please complete the details of your purchase below, detach and mail to Sanden Heat Pump – Owner’s Manual Page 23 of 24 Sanden International USA Inc. ECO2 Systems LLC 47772 Halyard Dr. Plymouth, MI 48170 Name _________________________________ Mailing address ___________________________________________________State _________ Postcode _________________... -
Page 26: Memo
Memo -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Sanden Heat Pump – Installation Manual SANDEN Heat Pump SANCO Heat Pump –... - Page 27 Memo -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Sanden Heat Pump – Installation Manual SANDEN Heat Pump SANCO Heat Pump –...
- Page 28 Memo -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- -------------------------------------------------------------------------------- ------------------------------------------------------------------------------- Sanden Heat Pump – Installation Manual SANCO HEAT PUMP SANDEN Heat Pump...
