Howard Miller PRISM 615140 Set Up And Operating Instructions

SET UP AND OPERATING INSTRUCTIONS
R
IMPORTANT: KEEP PLASTIC BAGS AND SMALL PARTS AWAY FROM CHILDREN.

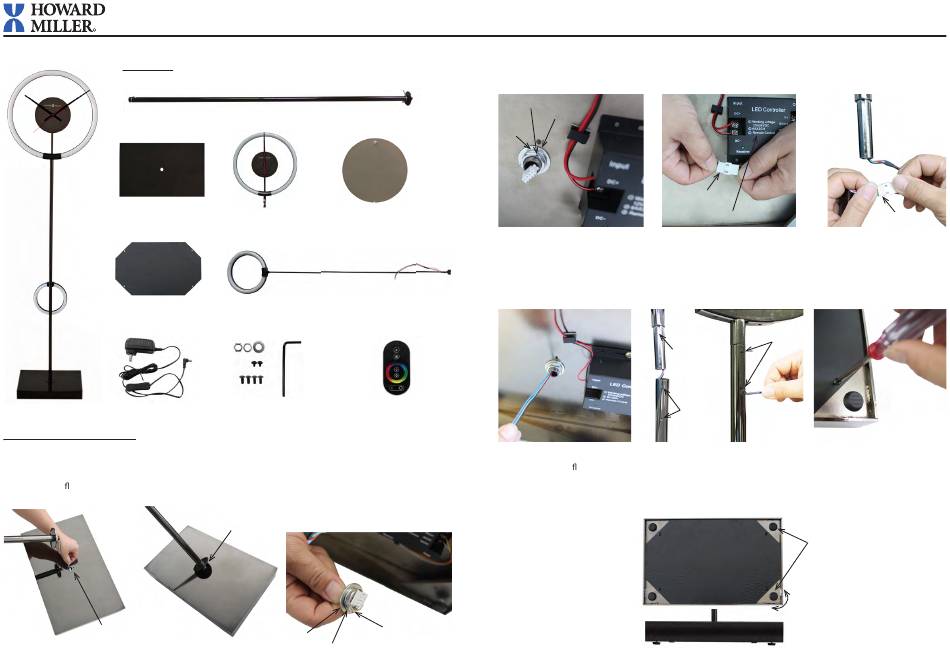

PARTS LIST:
B. Base (1pc)
E. Base Cover (1pc)
G. Power Adapter (1pc)
CLOCK SET UP INSTRUCTIONS:
1. Move the base (B) to its desired location and install the post (A) with wires into the bottom of the base (B)
(Figure 1).
2. Align the pin in the bottom of the washer on the post (A) with the hole in the base (B) (Figure 2).
3. Install the at washer, split washer, and hex nut from the hardware fasteners (H) over the white wire
connector on the post wires (A) on the bottom of the base (B) (Figure 3).
Position hole in
the base
Figure 1
615140 PRISM FLOOR CLOCK
A. Post (1pc)
C. Clock Head (1pc) D. Back Cover (1pc)
F. Pendulum (1pc)
H. Hardware Fasteners (1set) J. Remote Controller (1pc)
Pin under the
bottom washer
Flat Washer
Figure 2 Figure 3
Split Washer
4. Fasten the hex nut onto the threaded end of the post (A) to secure it to the base (B) (Figure 4).
5. Attach the two white wire connectors on the bottom of the base (B) (Figure 5).
6. Attach the two white wire connectors on the upper end of the post (A) and the bottom end of the clock
head (C) (Figure 6).
Hex Nut
Flat
Washer
Split
Washer
Figure 4
7. Pull the excess wire out the bottom of the base (B) to assemble the clock head (C) to the post (A) (Figure 7).
8. Install the clock head (C) into the post (A) aligning the two holes with the groove (Figure 8).
9. Install two small screws from the hardware fasteners (H) into the holes in the post (A). Use the L-shaped
hex wrench from the hardware fasteners (H) to tighten (Figure 9).
10. Use the four long screws from the hardware fasteners (H) to attach the base cover (E) to the bottom of the
base (B) (Figure 10).
Figure 7
11. Adjust the (4) oor levelers on the bottom of the base (B) so that the pendulum driver, located inside the
clock head, is vertical, front to back and side to side (Figures 11 & 12).
IMPORTANT: ENSURE THE CLOCK IS POSITIONED SQUARE AND FIRM ON THE FLOOR SO THAT IT WILL NOT
FALL OVER. ADJUST THE LEVELERS FOR MAXIMUM STABILITY AND PROPER ALIGNMENT.
Hex Nut
Wire
Connectors
LED controller under
the bottom base
Figure 5
Small
Screws
Groove
Holes
Figure 8 Figure 9
Floor levelers (4pcs)
Figure 11
Wire
Connectors
Figure 6
Figure 10
