Summary of Contents for MiiCraft Alpha Series

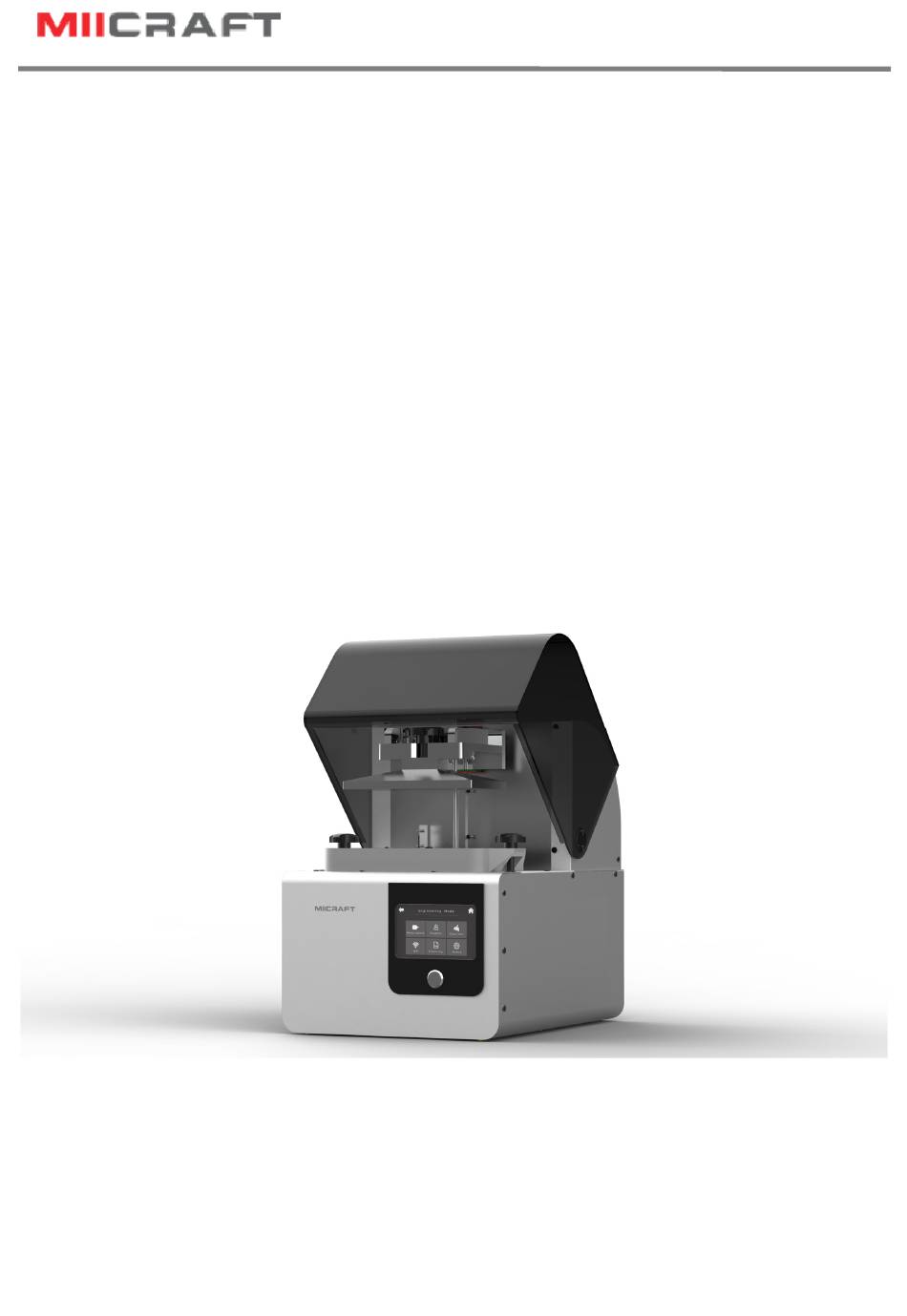

- Page 1 3D Production System ► Make a better world Alpha Series 3D Printer User Manual for Hardware Version 1.3...
- Page 2 3D Production System ► Make a better world REVISION HISTORY Date Revision Changes and Additions Page 03/30/2023 First Draft Page 7 04/06/2023 Updated the new adapter image Page 5 1. Updated the new picker base image. Page 8 04/20/2023 2. Add Product Certifications Page 10 Page 11 05/26/2023...
-
Page 3: Table Of Contents
3D Production System ► Make a better world Contents Contents ................................3 Product Information ........................... 4 Instructions for Use ......................... 4 Regulatory Statements ........................4 Product Certifications ........................5 Safety Precautions.......................... 6 General Information ........................7 Package Contents ........................... 7 Product Overview .......................... -
Page 4: Product Information
3D Production System ► Make a better world 1. Product Information 1.1 Instructions for Use Please read through the following Instructions before you start using your printer. (1) Ensure there’s no residuals inside the resin tank and the glass is well setup before printing. (2) Avoid print at center point with a single object or small parts repeatedly, it may damage the resin tank. -
Page 5: Product Certifications
3D Production System ► Make a better world 1.3 Product Certifications Description Mark FCC Declaration of Conformity logo mark for Class B equipment. The product has been tested by UL to nationally recognized safety and sustainability standards CE mark. Declearing compliance to European Union (EU) EMC directive, Low Voltage directive, and RoHS directive Separate collection for waste electrical and electronic equipment. -
Page 6: Safety Precautions
(4) Make sure power and communication cables are well managed to prevent from tripping. (5) Only use resins supplied by MiiCraft manufacturer. Use of other resins may cause printing job failure. (6) Do not expose the resin tank to direct light source because the resin will solidify under UV light. -
Page 7: General Information
‧ Repair can only be carried out by authorized person of MiiCraft. 1.6 Package Contents There is a printer and an accessory box inside the package. As soon as you receive our products, please... -
Page 8: Product Overview
3D Production System ► Make a better world 1.7 Product Overview Front View Printer Door Touch Screen Power Jack Network Port USB Port *2 Power Button Inside View Picker Resin Tank... -
Page 9: Setting Up Your 3D Printer - Hardware
3D Production System ► Make a better world 2. Setting up your 3D printer - Hardware 2.1 Location Ensure your Alpha printer is placed on a flat table top with access to mains electricity. Avoid sunlight direct as this will degrade material left in the machine. Dust pollution will cause printing failure. -
Page 10: Power Button Control
3D Production System ► Make a better world 2.3 Power Button Control (1) Power On Press Power Button => Panel shows Starting up => Panel shows Menu (2) Power Off Press Power Button => Confirm message => Confirm to shut down (3) Emergency shut down Press Power Button and hold 3 seconds to shut down (4) Power Button Signal... -
Page 11: Fill Resin Tank
3D Production System ► Make a better world 2.5 Fill resin tank Unscrew the Resin tank from two point Pick up the resin tank Pour Resin... -
Page 12: Operate Your 3D Printer -Software
3D Production System ► Make a better world 3. Operate your 3D printer –Software Please go to https://miicraft.com/support/ to download Utility 6.4.4, follow the steps in "Utility 6.4.4 user manual" to generate slice files. 4. After Print 4.1 Remove Model Remove the Picker and printed model →... -
Page 13: Appendix 1. Specifications
3D Production System ► Make a better world Appendix 1. Specifications * All specification and design subject to change without notice MiiCarft Modules Alpha Series Building size (mm) L150 x W84.4 x H75 XY Resolution 58 um Z-Layer Resolution 10 to 500um...
