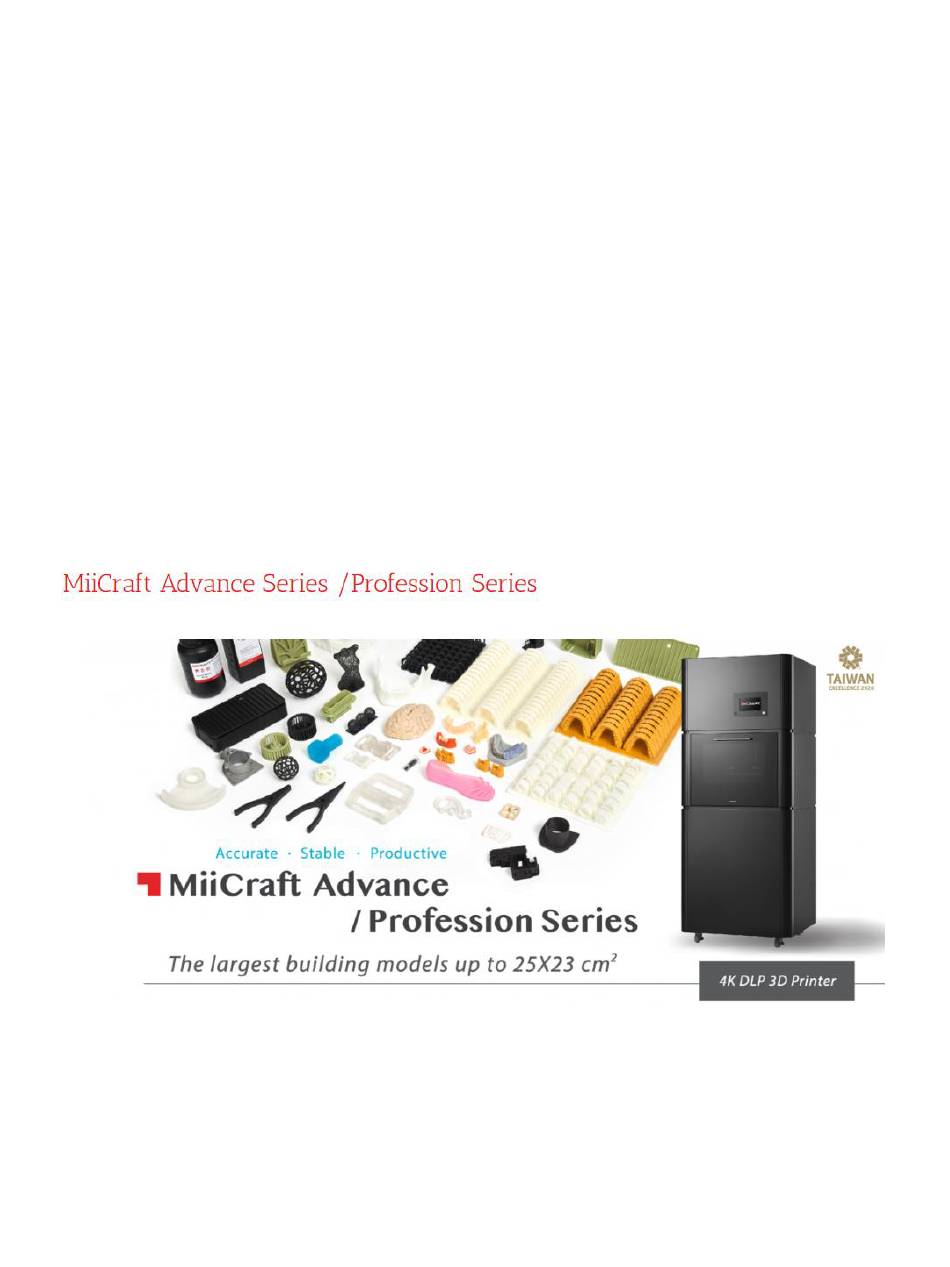

MIICRAFT
3D Production System --> An important step in making a better world
Maintenance Manual
Profession Series / Advance Series
Version 1.0
MiiCraft Profession & Advance series printer are well designed by the finest design & optical engineers
to provide additive manufacturing process more compatibility, with low maintenance on the machine.
Maintenance work should be regular in order to keep the printer in good condition and achieve high
quality prints every time. Some parts require maintenance before each print and some every few
hundred working hours. All maintenance activities do not take much time and are not complicated.
Before commencing any repair, it is extremely important to turn off the printer. Remember to always
wear safety gloves and glasses while working with printer.
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MiiCraft Profession Series
Summary of Contents for MiiCraft Profession Series
- Page 1 Profession Series / Advance Series Version 1.0 MiiCraft Profession & Advance series printer are well designed by the finest design & optical engineers to provide additive manufacturing process more compatibility, with low maintenance on the machine. Maintenance work should be regular in order to keep the printer in good condition and achieve high quality prints every time.
-
Page 2: Table Of Contents
MIICRAFT 3D Production System --> An important step in making a better world Contents :- Common & frequently performed practices __________________________________________ Page 3 Main Components to be checked frequently _________________________________________ Page 4 Glass ___________________________________________________________________ Page 4 Teflon __________________________________________________________________ Page 8 ... -
Page 3: Common & Frequently Performed Practices
3D Production System --> An important step in making a better world Common & frequently performed practices The following tables present maintenance and repair guidelines connected with each section of the MiiCraft Profession & Advance series printers, together with specific check points, necessary activities and their frequency. Activity Frequency Cleaning the machine &... -
Page 4: Main Components To Be Checked Frequently
MIICRAFT 3D Production System --> An important step in making a better world Main Components to be checked frequently Glass Teflon Picker Recoater Glass :- Required tools :- 1) Hand Gloves 2) Hex Allen Key – 3mm... - Page 5 MIICRAFT 3D Production System --> An important step in making a better world Remove the module by unscrewing tank holders 4 screw & shifting ribs on the outside. (Image contains one side only) Pull out the tank outside by holding tank handle & place it on safe cart to start further...
- Page 6 MIICRAFT 3D Production System --> An important step in making a better world Remove the 6 locking bolts using hex allen key as shown in the image. Lift up the teflon module to check if glass have some residuals or dirt on it.
- Page 7 MIICRAFT 3D Production System --> An important step in making a better world The cleaned glass will be transparent as shown in the image. Check if teflon is leaking resin from its surface, if yes, there’s need to change teflon.
-
Page 8: Teflon
3D Production System --> An important step in making a better world Teflon :- MiiCraft suggest end users to change teflon after 20 prints for avoiding print failure & wastage of time in case of teflon failure. Require tools :-... - Page 9 MIICRAFT 3D Production System --> An important step in making a better world Take out the glass & teflon tank assembly Clean the tank module by removing excess amount of resin in the resin container. Remove 12 bolts (6 bolts on each rib) using hex Allen key or power screw driver.
- Page 10 MIICRAFT 3D Production System --> An important step in making a better world Place the tank upside down for removing the 32 screws using power screw driver. Using hex allen key or power screw driver, remove all of the screws from the tank module.
- Page 11 MIICRAFT 3D Production System --> An important step in making a better world Put the teflon film module on the tank surface & fit with pin position. Assemble the bolts in order from 1 to 32 as shown in following image.
- Page 12 MIICRAFT 3D Production System --> An important step in making a better world Place the assembled glass & tank module on the tank holder. Simply shift tank holder’s 2 ribs at inner side & lock the 4 screws.
-
Page 13: Picker
MIICRAFT 3D Production System --> An important step in making a better world Picker :- Required Tools :- 1) Hand Gloves 2) Cotton Cloth 3) Alcohol / Acetone Reference :- Keep the printing surface as clean as possible for each printing process by using cotton cloth &... -
Page 14: Recoater
MIICRAFT 3D Production System --> An important step in making a better world Recoater :- Required Tools :- 1) Hand Gloves 2) Cotton Cloth 3) Alcohol / Acetone 4) Hex Allen Key – 3mm Procedure :- The right side mounting after opening door is recoater assembly. - Page 15 MIICRAFT 3D Production System --> An important step in making a better world Select Motor Control in next window Select next page on screen by swiping down action in next window...
- Page 16 MIICRAFT 3D Production System --> An important step in making a better world Select front action sweep menu as following Recoater will get forward (Near Door) Remove the front end screw from the module by using hex Allen key as shown in following...
- Page 17 Reassemble stirrer on recoater module using the hex Allen key. Note :- Recoater cleaning must be performed after change of resin for printing. After placing machine on standby mode for more than 12 hours or more, stirrer needs to be cleaned. Thanks for reading carefully, Team MiiCraft.
