Summary of Contents for MiiCraft Hyper Series

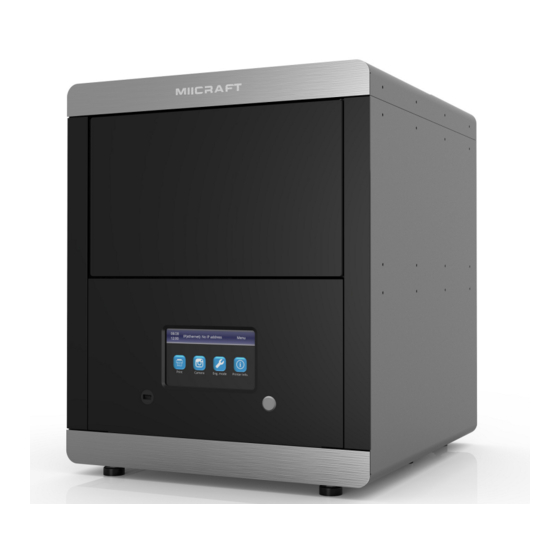

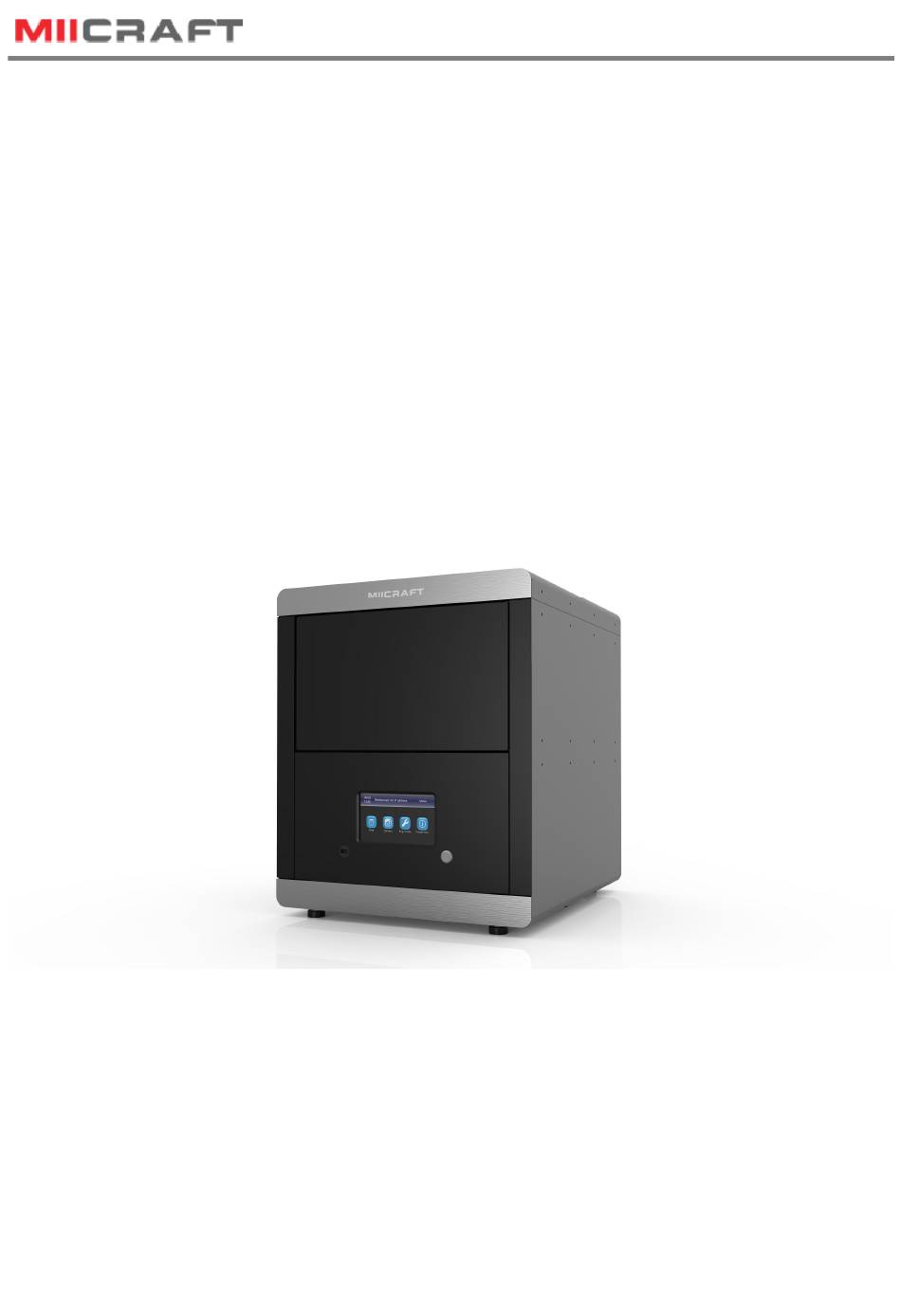

- Page 1 3D production system ► Make a better world Hyper series / Prime series 3D Printer User Manual for Hardware Version 1.0...
-
Page 2: Table Of Contents
3D production system ► Make a better world Content 1 Product Information---------------------------------------------------------------------------------------------------------------3 1.1 Instructions for Use-------------------------------------------------------------------------------------------------------3 1.2 Regulatory Statements---------------------------------------------------------------------------------------------------3 1.3 Safety Precautions--------------------------------------------------------------------------------------------------------4 1.4 General Information------------------------------------------------------------------------------------------------------5 1.5 Package Contents----------------------------------------------------------------------------------------------------------5 1.6 Product Overview---------------------------------------------------------------------------------------------------------6 2 Set up your 3D printer -Hardware----------------------------------------------------------------------------------------------7 2.1 Unpack-----------------------------------------------------------------------------------------------------------------------7 2.2 Connect Computer--------------------------------------------------------------------------------------------------------7 2.3 Power Button Control----------------------------------------------------------------------------------------------------8 2.4 Install Picker----------------------------------------------------------------------------------------------------------------9... -
Page 3: Product Information
3D production system ► Make a better world 1 Product Information 1.1 Instructions for Use Please read through the following Instructions before you start using your printer. (1) Ensure that the glass under tank is positioned flat at the corners point, for not damaging printer while printing. -
Page 4: Safety Precautions
(4) Make sure power and communication cables are well managed to prevent from tripping. (5) Only use resins supplied by MiiCraft manufacturer. Use of other resins may cause printing job failure. (6) Do not expose the resin tank to direct light source because the resin will solidify under UV light. -
Page 5: General Information
‧Liability: We will not hold the responsibility for damages of the machine or injuries on the operator in case user do not follow the user guide instruction. ‧Repair can only be carried out by authorized person of MiiCraft. 1.4 Package Contents There is a printer and an accessory box inside the package. -
Page 6: Product Overview
3D production system ► Make a better world 1.6 Product Overview... -
Page 7: Set Up Your 3D Printer -Hardware
3D production system ► Make a better world 2 Setting up your 3D printer - Hardware 2.1 Unpack (1) Remove the top (2) Remove the EPE (3) Remove the side (4) Remove the inner cardboard surround the inner box cardboard Printer net weighs at least 56 kilogram. -
Page 8: Power Button Control
3D production system ► Make a better world 2.3 Power Button Control (1) Power On Press Power Button => Panel shows Starting up => Panel shows Menu (2) Power Off Press Power Button => Confirm message => Confirm to shut down (3) Emergency shut down Press Power Button and hold 3 seconds to shut down (4) Power Button Signal... -
Page 9: Install Picker
3D production system ► Make a better world 2.4 Install Picker Carry both end of picker and install it Put down the handle to lock the Picker onto the machine ※ Remove the Picker: Lift the handle→Carry both end of picker→Remove the Picker 2.5 Fill resin tank Unlock the Resin tank from four corners Pick up the resin tank... -
Page 10: Consuming Parts And Spare Parts Related To Resin Tank
3D production system ► Make a better world 2.6 Consuming Parts and Spare Parts related to resin tank 2.7 How to replace Teflon film module for Prime Series (1) Turn back teflon module (2) Dismantle 16 units screws (As teflon module back view picture, red area) (3) Take out old Teflon film module, and put new Teflon film module (4) Mount 16 screws, but do not tighten them at once (just mount them in position temporarily) (5) Then fasten 16 screws... -
Page 11: Operate Your 3D Printer -Software
- Before printing, please check the surface of picker and tank is clean, no residual, otherwise it may affect printing quality - Hyper series Tank module and Prime series Teflon film module are consumables, we suggest to replace for them while using for a period, otherwise it may affect printing quality... -
Page 12: Appendix 1. Specifications
3D production system ► Make a better world Appendix 1. Specifications * All specification and design subject to change without notice...
