MiiCraft Maintenance Manual

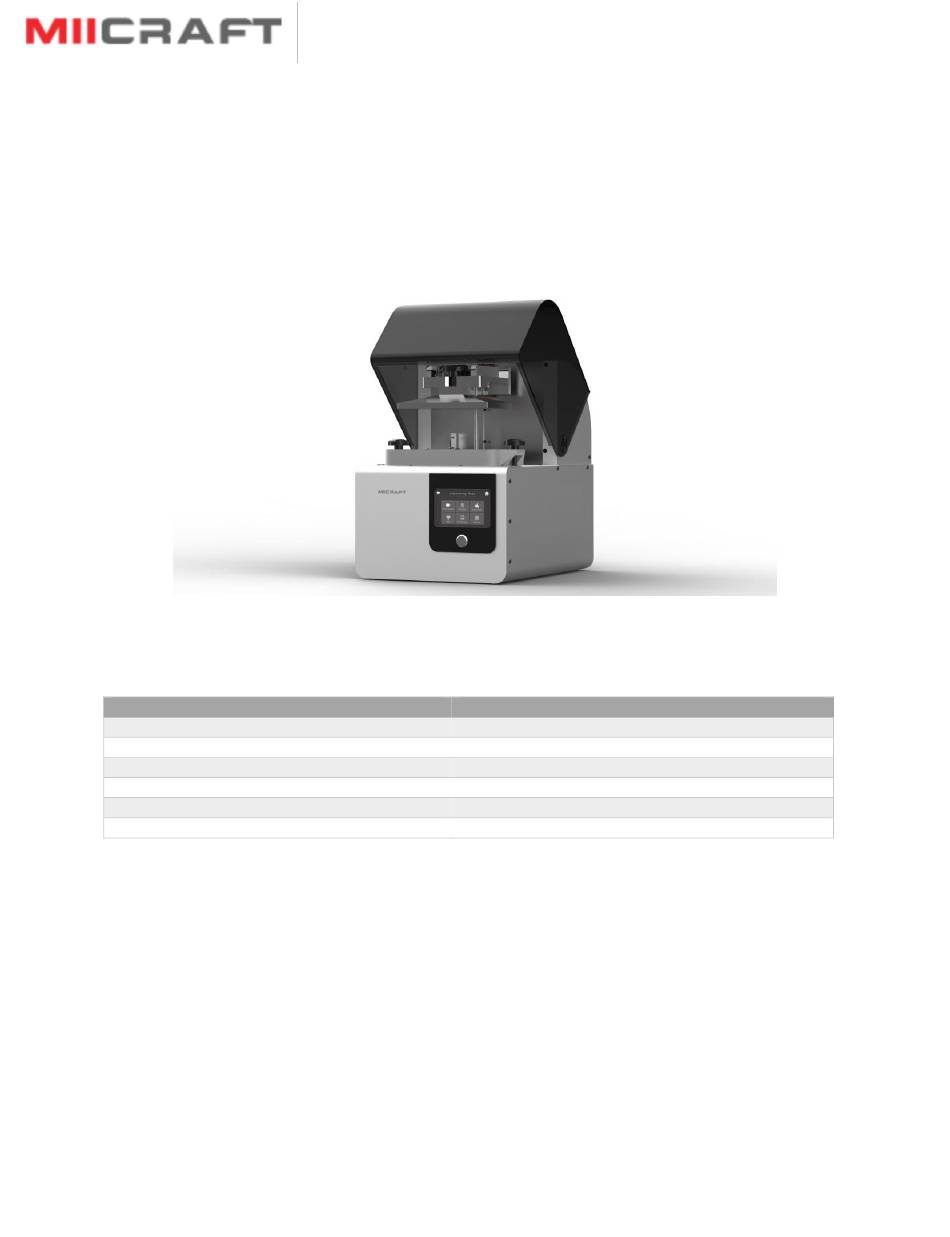

MiiCarft Modules
Building size (mm)
XY Resolution
Z-Layer Resolution
Wavelength (LED)
I/O (Connection)
User Interface
The key components of the machine or 3D printer needs some maintenance for having smooth
performance. Additive manufacturing uses key components of mechanical & electrical systems.
Mechanical components need some regular & yearly maintenance for having better performance & long
life. The common error & their maintenance method of MiiCraft 3D printer are provided in this manual.
Note - Unplug the power cable of the printer to start the maintenance procedure.
3D Production System ► Make a better world
Alpha Series
Version 1.0.1
Alpha Series
L 150 x W 84.4 x H 75
58 um
10 to 500um
405nm
Ethernet / USB
5" Touch Screen
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Alpha Series and is the answer not in the manual?

Questions and answers

Related Manuals for MiiCraft Alpha Series

Summary of Contents for MiiCraft Alpha Series

  • Page 1 Mechanical components need some regular & yearly maintenance for having better performance & long life. The common error & their maintenance method of MiiCraft 3D printer are provided in this manual. Note - Unplug the power cable of the printer to start the maintenance procedure.

  • Page 2: Table Of Contents

    Method 1: - ............................3 Method 2: - ............................5 Picker Maintenance: - ........................6 Teflon & holding Glass Maintenance (Alpha Series) .............. 7 Common & frequently performed practices: - ................8 Troubleshooting guidelines: - ....................... 9 Customer Support: - ........................11 Download Log Report: - ........................

  • Page 3: Z Motor Maintenance

    3D Production System ► Make a better world 1. Z Motor Maintenance: - Check Method: -  Using Computer Interface  Using the Touch panel Procedure: -  Take the Z motor downward by using a touch panel or computer interface. ...
  • Page 4 3D Production System ► Make a better world Use the motor control to control the origin position of the Platform to control the size of the gap. The middle-value input 10um= 0.01mm and 100um =0.1mm. Example 1: - Note down the gap values of the four corners measured by the printing platform (Picker/Build Platform) as shown in Table 1.

  • Page 5: Method 2

    3D Production System ► Make a better world Example 2: - Note down the gap values of the four corners measured by the printing platform (Picker/Build Platform) as shown in Table 3. Enter 200 in the motor control and press set zero.

  • Page 6: Picker Maintenance

    3D Production System ► Make a better world Example 1: - The Gap values at the four corners measured by the printing platform are shown in Table 5. At this time, the platform translation cannot be used to adjust the Gap. You need to use the adjusting screw to adjust.

  • Page 7: Teflon & Holding Glass Maintenance (Alpha Series)

    3D Production System ► Make a better world  Clean the back of the picker as well frequently to avoid resin addition on the picker holder.  3. Teflon & holding Glass Maintenance (Alpha Series)  Remove all of the failed parts from the tank. ...

  • Page 8: Common & Frequently Performed Practices

    4. Common & frequently performed practices: - The following tables present maintenance and repair guidelines connected with each section of the MiiCraft Alpha series printers, together with specific checkpoints, necessary activities and their frequency. Activity Frequency Cleaning &...

  • Page 9: Troubleshooting Guidelines

    3D Production System ► Make a better world 5. Troubleshooting guidelines: - Problems Remedy Press the power button to shut down the device then unplug the power supply My Z slide isn’t moving and the USB from the side of the printer. when I press the Wait for 10 seconds and reconnect.
  • Page 10 3D Production System ► Make a better world This could be several things or a combination of the following:  Damaged, scratches, holes or wear in the material tray (resin tank) will cause a build failure.  Weak supports. A weak or improperly placed support will cause a Partial build failure part feature not to build.

  • Page 11: Customer Support

    (.stl &.3dp file format) for further assistance. 6. Customer Support: - This section provides various options that help to get in touch with the MiiCraft Team for resolving any printer-related issues. Download Log Report: -...

  • Page 12: Remote Assist

    3D Production System ► Make a better world Select the latest interval and download the latest log information of the printer by clicking on the download button as mentioned below. To send the log report to Service and Support: - Find the file with a name similar to 00319_20230406LM30LGA2223ANAT0001.txt on your computer &...
  • Page 13 3D Production System ► Make a better world 3. Press the button shown below to enable the global network. 4. scans the QR code and send the contents to the technical service team. Thanks for reading carefully, Team MiiCraft.
