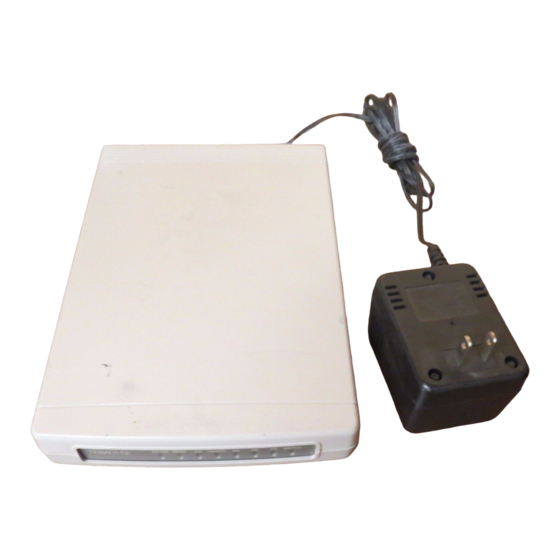

Paradyne 3825Plus Quick Reference Manual
Zhone comsphere 3825plus modems: reference guide
Hide thumbs
Also See for 3825Plus:
- User manual (107 pages) ,
- Installation instructions (1 page) ,
- Release note (21 pages)
Table of Contents
Advertisement
Quick Links
Download this manual
See also:
User Manual
Advertisement
Table of Contents
Related Manuals for Paradyne 3825Plus
Summary of Contents for Paradyne 3825Plus
- Page 1 COMSPHERE 3825 Plus MODEM QUICK REFERENCE Document No. 3825-A2-GL10-10...
- Page 2 Copyright 1999 Paradyne Corporation. All rights reserved. Printed in U.S.A. Notice This publication is protected by federal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrieval system, or translated into any human or computer language in any form or by any means, electronic, mechanical, magnetic, manual or otherwise, or disclosed to third parties without the express written permission of Paradyne Corporation, 8545 126th Ave.
-
Page 3: Quick Reference
Select Service & Support Technical Manuals Select the following document: 3825-A2-GB30 COMSPHERE 3825Plus Modem User’s Guide To request a paper copy of a Paradyne document: Within the U.S.A., call 1-800-PARADYNE (1-800-727-2396) Outside the U.S.A., call 1-727-530-8623 Before installing your modem, read the Important Safety Instructions on pageNO TAG . -
Page 4: 3825Plus Installation
— JM8 for 2-wire leased network interface For leased-line applications, a JM8 to RJ11 crossover cable. 3825Plus Installation Before installing your standalone modem, make sure your installation site is clean and well-ventilated. Allow space around the modem for installing cables and telephone cords, and make sure the modem is located within reach of an ac power outlet. -
Page 5: Dte Connection
DTE Connection Use the following procedure to connect the RS-232-E cable from the modem to the DTE: Procedure 1. Make sure the modem’s rear panel power switch is Off. 2. Connect the DB-25-P plug on the cable to the DB-25-S socket labeled COMPUTER on the modem’s rear panel. -
Page 6: Ac Power Transformer Connection
AC Power Transformer Connection Use the following procedure to connect the modem to an ac power outlet: Procedure 1. Make sure the modem’s power switch is in the Off position. 2. Insert the power transformer’s cylindrical connector into the modem’s rear panel ac power receptacle labeled POWER. -
Page 7: Recovering At Commands
To change a factory template, perform the following steps. Procedure 1. Use the AT&F&W command to load the appropriate factory configuration to the appropriate storage area. Enter the following: TYPE: AT &F f &W n (in all uppercase or all lowercase) Where: f is one of the following Factory configurations: 0 for Async Dial... - Page 8 If these settings are not appropriate, then change them to a setting compatible with your current application. The procedures for an AT recovery using an asynchronous terminal or personal computer are listed in the following section. Read through these procedures before performing a recovery: 1.
- Page 9 AT COMMANDS Bold text indicates Async Dial factory defaults. Attention Command Prefix/Autobaud Rate. Indicates a command string has started and determines the DTE’s data rate and parity. Repeat Last Command. Reexecutes last command string. (Not preceded with AT or followed by pressing the Return key.) Answer Mode.
- Page 10 AT COMMANDS (continued) Long Space Disconnect Disable. Enable. Reset and Load Active Loads contents of Active (Saved) into Active (Operating). Loads contents of Customer 1 into Active (Operating). Loads contents of Customer 2 into Active (Operating). Loads contents of Active (Saved) into Active (Operating) and performs a reset.
- Page 11 AT COMMANDS (continued) &Sn DSR Control &S0 Forced On. Forces DSR signal ON. &S1 Standard RS232. Modem controls DSR signal. &S2 Wink When Disc. DSR signal turns Off for approximately 1 to 2 seconds upon disconnecting. &S3 Follows DTR. Modem sends DSR to DTE when it receives DTR from DTE.
- Page 12 AT COMMANDS (continued) Error Control Mode Buffer Mode. Modem does not use error control; DTE rate can differ from VF rate. Direct Mode. Modem does not use error control; DTE rate and VF rate must be the same. MNP or Disc. Modem disconnects if it does not connect in MNP mode.
- Page 13 S-REGISTERS Register Description Factory Setting Auto-Answer Ring Number AT Escape Character Carriage Return Character Line Feed Character Backspace Character Blind Dial Pause No Answer Time-out “,” Pause Time for the Dial Modifier No Carrier Disconnect Escape Sequence Guard Time Asymmetric Rate (Dial) Test Time-out RTS/CTS Delay DTR Continuous Repeat...
- Page 14 S-REGISTERS (continued) Register Description Factory Setting Remote Access Password 1st and 2nd digits Remote Access Password 3rd and 4th digits Remote Access Password 5th and 6th digits Remote Access Password 7th and 8th digits V.25bis Coding V.25bis Idle Character V.25bis New Line Character Line Current Disconnect NMS Call Messages Directory Location 1 Callback...
-
Page 15: Important Safety Instructions
Important Safety Instructions 1. Read and follow all warning notices and instructions marked on the product or included in the manual. 2. Slots and openings in the cabinet are provided for ventilation. To ensure reliable operation of the product and to protect it from overheating, these slots and openings must not be blocked or covered. -
Page 16: Government Requirements
Notices WARNING: WARNING: CE Mark This product is marked with the CE mark. This mark has been affixed to demonstrate full compliance with the following European Directives: Directive 73/23/EEC – Council Directive of 19 February 1973 on the harmonisation of the laws of the Member States relating to electrical equipment designed for use within certain voltage limits, as amended by Directive 93/68/EEC. - Page 17 United States – Notice to Users of the Telephone Network 1. This equipment complies with Part 68 of the FCC rules. On the equipment is a label that contains, among other information, the FCC registration number and ringer equivalence number (REN) for this equipment. The label is located on the bottom of your modem.
- Page 18 9. The Telephone Consumer Protection Act of 1991 makes it unlawful for any person to use a computer or other electronic device to send any message via a telephone fax machine unless such a message clearly contains, in a margin at the top or bottom of each transmitted page, or on the first page of the transmission, the date and time it is sent, and an identification of the business, or other entity, or other individual sending the message, and the telephone number of such business, or...
- Page 19 United Kingdom Ringer Equivalence Number The Ringer Equivalence Number (REN) is a customer guide indicating approximately the maximum number of items of apparatus that should be connected simultaneously to the telephone line. The sum of the RENs should not exceed four. This value includes any BT-provided instrument which may be assumed to have a REN of 1 unless marked otherwise.
- Page 20 All European Countries Safety Notice For pluggable equipment, the mains socket outlet shall be installed near the equipment and be easily accessible. Interconnection circuits between this modem and any other equipment should be such that the equipment continues to comply with the requirements of EN41003 for TNV (Telephone Network Voltage) circuits and EN60950 for SELV (Safety Extra Low Voltage) circuits after making connection between circuits.
