- Page 1 Manual Aquaztrip Design...
-
Page 2: Installation Height

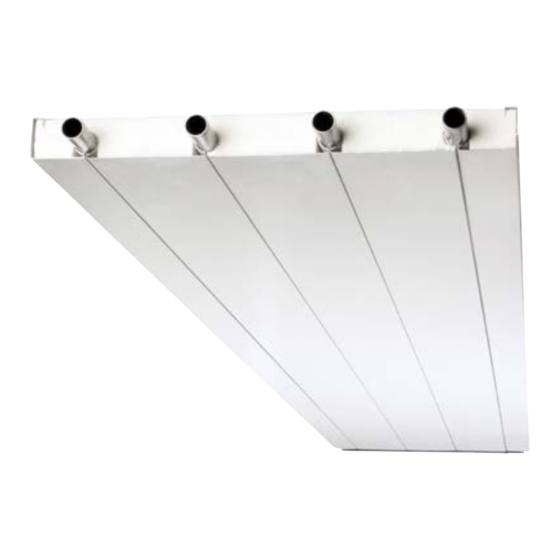

Aquaztrip Design Application Aquaztrip is a water heated radiant panel with a very wide • Aluminium panel, low weight per metre. area of application in both commercial and industrial • High heat emission compared to steel panels. buildings. The Aquaztrip heating system is tailormade for •... - Page 3 Aquaztrip Design Side view Type Pipes [mm] [mm] [mm] 450-3 28 x 1,5 600-4 74,5 28 x 1,5 750-5 74,5 900-6 1050-7 1040 750 1200-8 1190 600 1350-9 1340 1500-10 1490 Top view Example of panel assembly with 6 m panels. 6000 6000 6000...
-
Page 4: Connection Possibilities
Aquaztrip Design Connection possibilities Type 450-3 600-4 750-5 900-6 1050-7 1200-8 1350-9 1500-10 1022 1001 1021 1000 1032 1000 1010 1010 The drawings show front connections. Top connections are also possible. - Page 5 Aquaztrip Design Assembly The panels are supplied complete with pre-assembled insulation and welded headers. Assembly of the complete heating system is made on site. Zinc-plated steel press fittings are used to connect several panels together, using a crimping tool, guaranteeing the watertightness of the pipe/sleeve. When installing the press fittings, leave a gap of approximately 30 mm between the tubes of the radiant panels.
-
Page 6: Troubleshooting
Aquaztrip Design Controls Water control FC111 FCPOBH FCBB FCRTX FCBC FCR230 ECG1 VPTK VPTK_NC FCOTX FCSC Item Type Dimensions Item Type Description number number 157457 VPTK1504 DN15 Kvs 0,4 74680 FC111 89x89x26 mm (Control panel) 157458 VPTK1506 DN15 Kvs 0,6 74692 FCPOBH 105x105x38 mm... - Page 7 Aquaztrip Design Main offi ce Frico AB Tel: +46 31 336 86 00 Industrivägen 41 SE-433 61 Sävedalen mailbox@frico.se Sweden www.frico.net For latest updated information and information about your local contact: www.frico.net...
