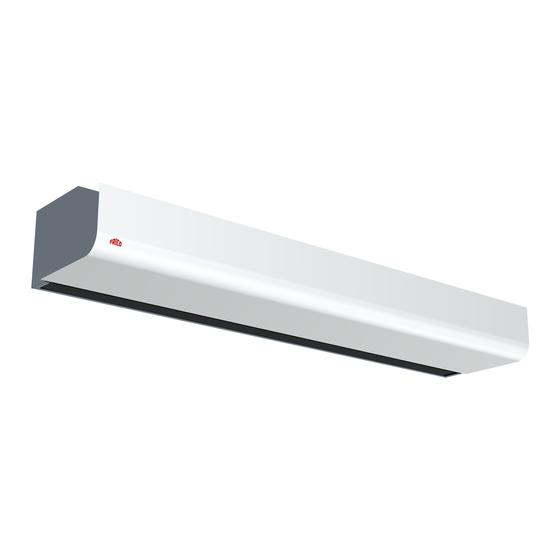

Frico Thermozone PA3500 Original Instructions Manual

Hide thumbs Also See for Thermozone PA3500:

Advertisement

Quick Links

Download this manual
SE
.... 27
DE
.... 38
ES
.... 58
Thermozone PA3500/4200
GB
.... 31
RU
.... 42
HU
.... 62
NO
.... 26
PL
.... 46
Original instructions
FI
.... 30
IT
.... 50
FR
.... 34
NL
.... 54

Advertisement

loading

Related Manuals for Frico Thermozone PA3500

Summary of Contents for Frico Thermozone PA3500

  • Page 1 Original instructions Thermozone PA3500/4200 ..27 ..26 ..30 ..34 ..31 ..38 ..42 ..46 ..50 ..54 ..58 ..62...

  • Page 2: Horizontal Mounting

    PA3500/4200 Dimensions PA3500 Horizontal mounting DN20 (3/4"), outside thread Water connection Electrical connection Electrical connection All models PA 2 m; 2,5 m [mm] PA3510 1039 PA3515 1549 PA3520 2039 PA3525 2549 SIRe Vertical mounting with Vertical kit and Design kit for vertical mounting The unit can be reversed and placed on either side of the...
  • Page 3 PA3500/4200 Dimensions PA4200 Horizontal mounting DN20 (3/4"), outside thread Water connection Electrical connection Electrical connection All models PA 2 m; 2,5 m [mm] PA4510 1039 PA4515 1549 PA4520 2039 PA4525 2549 SIRe Vertical mounting with Vertical kit and Design kit for vertical mounting The unit can be reversed and placed on either side of the...

  • Page 4: Open The Unit

    PA3500/4200 Open the unit Fig. 1A: Open the unit by raising the front panel. The front Fig. 1B: When the front has been removed it it important is blocked in open position with the front hatch hook to be sure it is firmly seated in the front locks again. Integrated control system SIRe Fig.
  • Page 5 PA3500/4200 Mounting Fig. 3: Minimum distance. [mm] PA3510 PA4210 PA3515 1260 PA4215 1260 PA3500 PA4200 Fig. 4: M8-holes for mounting.
  • Page 6 PA3500/4200 Horizontal mounting Horizontal mounting - wall bracket PA34WB ø12 20 mm PA34WB15 2 pcs PA34WB20 3 pcs PA34WB30 4 pcs Fig. 5: Mounting with wall brackets (PA34WB).
  • Page 7 PA3500/4200 Horizontal mounting Wire lock Fig. 6: Mounting with threaded bars (PA34TR) and ceiling Fig. 7: Mounting with wire suspension kit (PA34WS), used brackets (PA34CB). Supplemented with vibration dampers together with ceiling brackets (PA34CB). (PA34VD) for reduced vibration. See separate manual for PA34WS. See separate manual for PA34TR.
  • Page 8 PA3500/4200 Mounting - vertical Design kit for vertical mounting Floor edging Fig. 10: Vertical kit PA3JK to adapt horizonal unit for vertical installation. Used together with design kit for vertical installation for a neater installation. See separate manual for PA3JK - Vertical installation.

  • Page 9: Mounting And Installation

    PA3500/4200 Accessories For horizontally mounted units Mounting and installation Type Description Number included Length PA34WB15 Wall brackets for PA3510/3515/4210/4215 2 pcs 400 mm Fig. 4 PA34WB20 Wall brackets for PA3520/4220 3 pcs 400 mm Fig. 4 PA34WB30 Wall brackets for PA3525/4225 4 pcs 400 mm Fig.
  • Page 10 PA3500/4200 Accessories For horizontally mounted units Design kit for wall mounting Type Description HxDxW [mm] PA3DW10 Design kit for wall mounting PA3510 87x382x1006 PA3DW15 Design kit for wall mounting PA3515 87x382x1516 PA3DW20 Design kit for wall mounting PA3520 87x382x2006 PA3DW25 Design kit for wall mounting PA3525 87x382x2516 PA4DW10 Design kit for wall mounting PA4210 87x424x1006...
  • Page 11 PA3500/4200 Accessories For horizontally mounted units Design kit for ceiling mounting PA4200 Intermediate parts Description Number Type included PA4DC15S Intermediate part 300 mm for 2 pcs PA4210/4215 Telescopic PA4DC20S Intermediate part 300 mm for 3 pcs part PA4220 PA4DC30S Intermediate part 300 mm for 4 pcs PA4225 PA4DC15M Intermediate part 500 mm for...
  • Page 12 PA3500/4200 Accessories For vertically mounted units Mounting and installation Type Description Vertical kit for PA3500(fig. 9) PA3JK PA4JK Vertical kit for PA4200 (fig. 9) PA34EF10 External intake filter for PA3510/4210 PA34EF15 External intake filter for PA3515/4215 See manual for PA34EF . PA34EF20 External intake filter for PA3520/4220 PA34EF25...
  • Page 13 PA3500/4200 Accessories Regulations alternatives This aircurtain is supplied with an intelligent SIRe is supplied pre-programmed with quick- and well designed low voltage control release connections and is very easy to use system SIRe which can be customized for and install. There are three different levels each unique application and environment.

  • Page 14: Internal Wiring Diagram

    PA3500/4200 Wiring diagrams Internal wiring diagram PA3500 A PA4200 A Transformer Transformer SIReB1 Actuator Supply 230V~ 230V~ ROOM...
  • Page 15 PA3500/4200 Wiring diagrams Internal wiring diagram PA3500 E PA4200 E Transformer Transformer SIReB1 Actuator Supply 230V~ 230V~ ROOM...
  • Page 16 PA3500/4200 Wiring diagrams Internal wiring diagram PA3500 W PA4200 W Transformer Transformer SIReB1 Actuator Supply 230V~ 230V~ ROOM...
  • Page 17 PA3500/4200 Wiring diagrams Control options for units without heat SIReB Basic SIReB1 SIReUB1 SIReB Basic - Parallel connection SIReB1 SIReB1 SIReUB1 Wiring diagrams for SIReAC Competent, see manual for SIRe.
  • Page 18 PA3500/4200 Wiring diagrams Control options for electrically heated units SIReB Basic SIReB1 SIReRTX SIReUB1 230V~ (optional) SIReB Basic - Parallel connection SIReB1 SIReB1 SIReRTX SIReUB1 230V~ 230V~ (optional) Wiring diagrams for SIReAC Competent and SIReAA Advanced, see manuals for SIRe.
  • Page 19 PA3500/4200 Wiring diagrams Control options for water heated units SIReB Basic SIReB1 SIReUB1 SIReRTX SIReSD230 (optional)
  • Page 20 PA3500/4200 Wiring diagrams Control options for water heated units SIReB Basic - Parallel connection SIReB1 SIReSD230 SIReB1 SIReSD230 SIReB1 SIReRTX SIReUB1 SIReSD230 (optional) Wiring diagrams for SIReAC Competent and SIReAA Advanced, see manuals for SIRe.
  • Page 21 PA3500/4200 Output charts water PA3500 PA3500 WL Standard coil Incoming / outgoing water temperature 80/60 °C Incoming air temp. = +15 °C Incoming air temp. = +20 °C Type Airflow Output Outgoing Water Pressure Output Outgoing Water Pressure position air temp. flow drop air temp.
  • Page 22 PA3500/4200 Output charts water PA3500 PA3500 WHH* Special coil Incoming / outgoing water temperature 130/70 °C Incoming air temp. = +15 °C Incoming air temp. = +20 °C Type Airflow Output Outgoing Water Pressure Output Outgoing Water Pressure position air temp. flow drop air temp.
  • Page 23 PA3500/4200 Output charts water PA4200 PA4200 WL Standard coil Incoming / outgoing water temperature 80/60 °C Incoming air temp. = +15 °C Incoming air temp. = +20 °C Type Airflow Output Outgoing Water Pressure Output Outgoing Water Pressure position air temp. flow drop air temp.
  • Page 24 PA3500/4200 Output charts water PA4200 PA4200 WHH* Special coil Incoming / outgoing water temperature 130/70 °C Incoming air temp. = +15 °C Incoming air temp. = +20 °C Type Airflow Output Outgoing Water Pressure Output Outgoing Water Pressure position air temp. flow drop air temp.
  • Page 25 230V~ 400V3~/23,1 2039 6,6/13,2/20,0 2200/4600 37/14 42/60,5 1140 230V~ 400V3~/29,0 2549 PA3525E20 Technical specifications | Thermozone PA3500 WL with water heat, coil for low temperature water < 80/60 °C ∆t Type Output* Airflow* Water- Sound Output Voltage Amperage Length Weight...
  • Page 26 PA3500/4200 Technical specifications |   1 Thermozone PA4200 A without heat Type Output Airflow* Sound Output Voltage Amperage Length Weight level* motor motor motor [kW] [dB(A)] [mm] [kg] PA4210A 1280/2700 46/63,5 230V~ 1039 PA4215A 1760/3700 46/64 1150 230V~ 1549 PA4220A 2520/5300 47/64,5 1610...
  • Page 27 Minsta avstånd från utlopp till golv för aggregat med elvärme är 1800 mm. För övriga Användningsområde minimimått se fig. 3. Luftridåaggregatet Thermozone PA3500/4200 Vid breda öppningar kan flera aggregat levereras utan värme, med elvärme- eller monteras ihop med varandra med en varmvattenbatteri.
  • Page 28 Observera att aggregatet ska föregås av en Aggregat med vattenburen värme: Ansluts via det inbyggda styrkortet SIRe med reglerande ventil, se Frico ventilpaket. 2 m sladd och stickpropp. Anslutning av vattenbatteri sker på aggregatets ovansida (horisontellt montage) respektive baksida (vertikalt montage) via Aggregat med elvärme:...
  • Page 29 PA3500/4200 med vatten och ingen luft finns kvar, innan uteblir. idrifttagning. 1. Bryt strömmen, 2. Lossa skruvar och fäll upp frontplåten. lnjustering av luftridån och luftström Fronten ska spärras i öppet läge med Luftstrålens riktning och hastighet ska frontluckehaken, se fig. 1A. justeras med hänsyn till belastningen på...
  • Page 30 PA3500/4200 fläkten. varmt. 4. Montera den nya fläkten enligt ovanstående i omvänd ordning. Om felet inte kan avhjälpas, tag kontakt med behörig servicetekniker. Byte av elbatteri (E) 1. Märk och lossa kablarna till Jordfelsbrytare (E) elementpaketet. När installationen är skyddad av 2.

  • Page 31: Operation

    PA3500/4200 Assembly and operating instructions General Instructions Mounting Read these instructions carefully before The air curtain range includes possiblities installation and use. Keep this manual for for horizontal installation and for vertical future reference. installation and the units can also be installed The product may only be used as set out in recessed into suspended ceilings.
  • Page 32 PA3500/4200 Vertical mounting PA3JK unit (horizontal) or on the reverse (vertical). Units from 1,5 metres and longer may be Control supply is 230V~ and cable is routed used vertically. For vertical mounting, all from the built-in SIRe control board. units must be supplemented with a vertical Power supply for heating (400V3 ~) is kit containing everything needed for a connected to terminal block in the internal...
  • Page 33 When the front has been removed it it be equipped with shut off valves (included important to be sure it is firmly seated in in Frico valve kits) to allow problem free the front locks again, see fig. 1B. removal.
  • Page 34 PA3500/4200 Overheating Replacing the water coil (W) The air curtain unit with electric heater is 1. Shut off the water supply to the unit. equipped with an overheat protector. The 2. Disconnect the connections to the water overheat protection is reset by turning coil.
  • Page 35 PA3500/4200 Residual current circuit breaker (E) When the installation is protected by means of a residual current circuit breaker, which trips when the appliance is connected, this may be due to moisture in the heating element. When an appliance containing a heater element has not been used for a long period or stored in a damp environment, moisture can enter the element.
  • Page 36 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 Fax: +46 31 26 28 25 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
