Original instructions

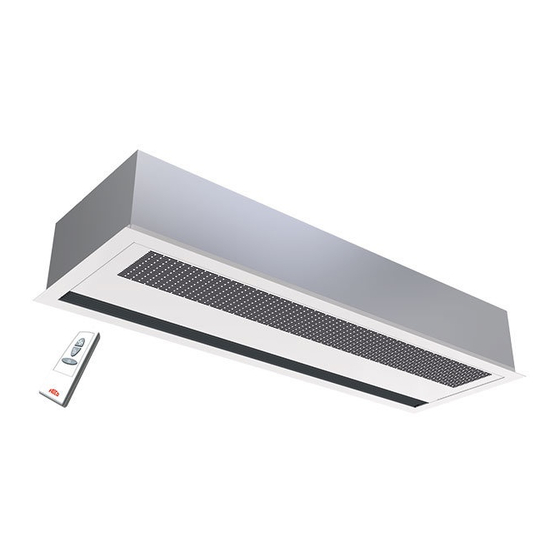

AR3200C
NO
.... 41
PL
.... 80
DE
.... 48
RU
.... 88

Advertisement

loading
Need help?

Need help?

Do you have a question about the AR3200C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Frico AR3200C

Summary of Contents for Frico AR3200C

  • Page 1 Original instructions AR3200C ..19 ..26 ..33 ..41 ..48 ..56 ..64 ..80 ..72 ..88 ..96 ..103...
  • Page 2 AR3200C Introduktionssidorna består huvudsakligen av bilder. För översättning av de engelska texter som används, se respektive språksidor. The introduction pages consist mainly of pictures. For translation of the English texts used, see the respective language pages. Les pages de présentation contiennent principalement des images. Pour la traduction des textes en anglais, consultez la page correspondante à...
  • Page 3 AR3200C 1, 1,5 m: 4 x M8 2 m: 6 x M8 ø29 ø29 [mm] [mm] AR3210C 1078 1028 AR3215C 1588 1538 AR3220C 2078 2028...

  • Page 4: Front View

    AR3200C Mounting on threaded bars outside the unit Front view AR3210C / AR3215C Side view 805 / 1315 AR3220C...
  • Page 5 AR3200C Mounting on threaded bars outside the unit Fig. 1a: Mounting brackets on delivery. AR3220C Fig. 1b. Mounting on threaded bars outside the unit.
  • Page 6 AR3200C Mounting on threaded bars inside the unit Top view AR3210C / AR3215C 850 / 1360 Side view AR3220C E/A: 851 E/A: 932 W: 935 W: 848 Fig. 2a: Mounting brackets on delivery.
  • Page 7 AR3200C Mounting on threaded bars inside the unit AR3220C Fig. 2b. Mounting on threaded bars inside the unit. AR3210C, AR3215C 4x AR3220C Fig. 2c. Location of the mounting brackets on the inside of the unit. Fig. 2d. In order to mount the brackets, remove the service hatch, outlet grille and covering plates.
  • Page 8 AR3200C 90° Service hatch Fig. 3a: Snap fixings Fig. 3b: Open the unit. Fig. 4: Terminal box and control panel inside unit.
  • Page 9 AR3210C, AR3215C, 1 m PA34TR20 AR3220C, 1 m PA34CB15 AR3210C, AR3215C PA34CB20 AR3220C FHDN15 PA34VD15 AR3210C, AR3215C PA34VD20 AR3220C PA34VD PAMLK AR3200C FHDN15 AR3200C W PA2DR AR3200C PA34TR PA34CB PAMLK PA2DR VLSP Type RSK-nr NRF-nr Connection (SE) (NO) VLSP15LF 670 45 35...

  • Page 10: Technical Specifications

    AR3200C Technical specifications Ambient, no heat - AR3200C A Type Output Airflow* Sound Sound Voltage Amperage Length Weight power* pressure* motor motor [kW] [dB(A)] [dB(A)] [mm] [kg] AR3210CA 1000/1800 43/57 230V~ 1078 AR3215CA 1600/2900 43/57 230V~ 1588 2100/3900 44/60 230V~...
  • Page 11 AR3200C Output charts Supply water temperature:90 °C Water temperature: 90/70 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return water Water Pressure Output * Outlet Water Pressure position temp. flow drop air temp.
  • Page 12 AR3200C Output charts Supply water temperature: 60 °C Water temperature: 60/40 °C Room temperature: +18 °C Room temperature: +18 °C Outlet air temperature: +35 °C* Type Airflow Output Return water Water Pressure Output * Outlet Water Pressure position temp. flow drop air temp.
  • Page 13 AR3200C AR3200CA AR3210CA AR3215CA AR3220CA Only 2 m version b1 c1 0 - 10V HEAT ALARM WATER Left motor Right motor AR/RAR3210CA Red Yellow Orange White AR/RAR3215CA Red Yellow Orange White AR/RAR3220CA Yellow Orange White AR3200CW AR3210CW AR3215CW AR3220CW Only 2 m version...
  • Page 14 AR3200C AR3210CE03 230V~ AR3210CE03 L3 L2 L1 PE L N Over heat cut-out L Mid Low INTERNAL SENSOR 0 - 10V HEAT ALARM WATER 400V 3N~ 230V~ AR3210CE05 L2 L1PE L L3 L2 L1PE L N AR3210CE05 Over heat cut-out...
  • Page 15 AR3200C AR3210CE08 AR3215CE12 400V3N~ L3 L2 PE L AR3210CE08 AR3215CE12 K2 = low power K1 = high power Over heat cut-out MidLow INTERNAL SENSOR 0 - 10V HEAT ALARM WATER...
  • Page 16 AR3200C AR3215CE08 400V 3N~ AR3215CE08 L3 L2 L1 Over heat cut-out L Mid Low INTERNAL SENSOR 0 - 10V HEAT ALARM WATER AR3220CE10 400V 3N~ AR3220CE10 L3 L2 L1 Over heat Over heat cut-out cut-out b1 c1 L Mid Low...
  • Page 17 AR3200C AR3220CE16 400V3N~ AR3220CE16 L3 L2 PE L K4 = low power K2 = low power K3 = high power K1 = high power Over heat Over heat cut-out cut-out b1 c1 b1 c1 INTERNAL SENSOR 0 - 10V HEAT...
  • Page 18 AR3200C PAMLK 0 -10V N H1H2 N F1 F2 F3 N F1 F2 F3 Black Brown Blue Black Brown Blue...
  • Page 19 Application area other. Minimum distance from outlet to floor AR3200C is a compact air curtain for recessed for electrically heated units is 1800 mm. mounting. The air curtain is available without Mounting on threaded bars outside the unit heat, with electrical heating and with water 1.
  • Page 20 3. After service, repairs and maintenance close pressure water system or an open water the service hatch and make sure that the snap system. fixings lock securely. Note that the unit shall be preceded by a regulating valve, see Frico valve kit.

  • Page 21: Maintenance

    AR3200C Maintenance Temperature control Unit with water heating See control pages. The appliance filter should be cleaned regularly to ensure the air curtain effect and Replacing motor or impeller heat emission from the device. How often 1. Remove frame and side panel.

  • Page 22: Troubleshooting

    AR3200C Troubleshooting Packaging If the fans are not running or do not perform pro- Packaging materials are chosen with perly, check the following: consideration to the environment and are • The functions and settings of the built-in therefore recyclable. control system.
  • Page 23 AR3200C Safety • For all installations of electrically heated products a residual current circuit breaker 300 mA for fire protection should be used. • Keep the areas around the air intake and exhaust grilles free from possible obstructions! • The unit must not be fully or partially...
  • Page 24 AR3200C Control The control system is integrated in the air curtain. The air curtain can be regulated with a remote control or by the control panel placed inside the service hatch. 230V~ Actuator SD230 Black (remove the quick Brown connector)

  • Page 25: Functional Test

    AR3200C Fan step 1/2/3 ~20 °C Heat step Electric: Half/full power Water: On/off (1 LED) On/off Control panel - Unit with electrical heating or water heating Fan step 1/2/3 On/off Control panel - Unit without heating Remote control - on/off, fan steps and heating steps...

This manual is also suitable for:

Ar3210cAr3215cAr3220cAr3200c aAr3210caAr3215ca ... Show all
