2. Operation

2.1 Introduction

This chapter describes how to operate the
introduces the location and function of the controls and connectors.

2.2 Initial Inspection

Your TWL-4-B-MIC benchtop was carefully inspected before it left the
manufacturer. It should be in proper working order upon receipt. You
should, however, inspect the unit for any damage that may have
occurred in transit. If the shipping container or the packing material is
damaged, keep it until the contents of the shipment have been checked
to be free of mechanical and electrical damages. Notify Optilab, LLC
promptly if any notable damage is found.
Each TWL-4-B-MIC
•
TWL-4-B-MIC
• Test Datasheet
• User Manual
• AC Power Cord
• USB Cable
• Interlock
• Key Switch

2.3 Function Diagram

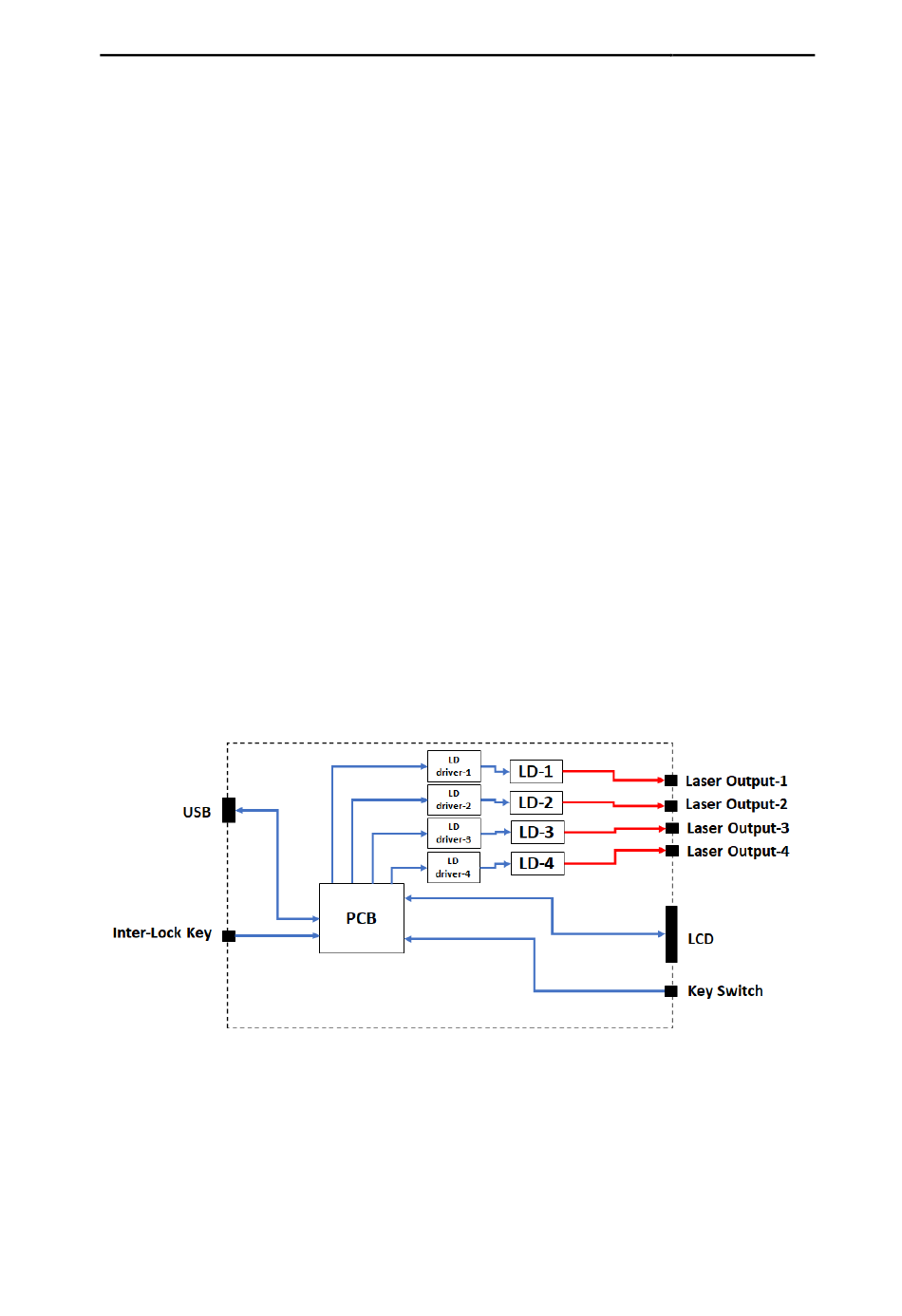

The function diagram of the
Optilab, LLC
600 E. Camelback Road, Phoenix, AZ 85012
Phone: 1-602-343-1496, Fax: (602) 343-1489, Email: sales@oequest.com
shipment should include the following:
Laser Benchtop Unit
TWL-4-B-MIC is shown below:
Page 2 of 11
TWL-4-B-MIC unit and
