Assembly- and operating instructions for

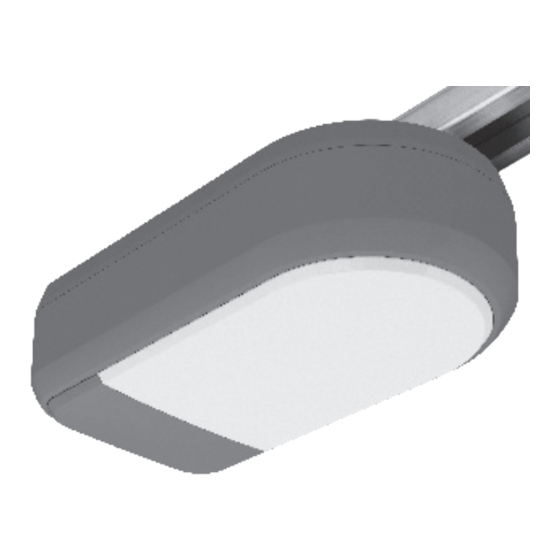

Garage Door Opener
Model PL750EV-GB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LIFTPRO EVO PL750EV-GB and is the answer not in the manual?

Questions and answers

Summary of Contents for Chamberlain LIFTPRO EVO PL750EV-GB

  • Page 1 Assembly- and operating instructions for Garage Door Opener Model PL750EV-GB...
  • Page 2: Table Of Contents

    Note: The original installation and operating instructions were compiled in German� Any other available language is a translation of the original German version� General safety guidelines ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������3 Intended use ����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Scope of supply �����������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Product overview ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Before you begin ���������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Door Types ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Preparation ������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4 Tools required ��������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������������4...
  • Page 3: General Safety Guidelines

    WARNING! START BY READING THESE IMPORTANT SAFETY INSTRUCTIONS! General safety guidelines Before you begin the installation: Please read the operating instructions and especially the precautions� Keep the manual for future reference and pass it on to a possible subsequent owner� Attention! Before installation of opener to door, the separately delivered cover with logo must be mounted to the operator�...
  • Page 4: Intended Use

    Intended use a� Header bracket h� Power cable b� Belt i� Drive head This garage door opener has been designed in accordance with the requi- rements of the EU Machinery Directive 2006/42/EC; GB (UK,NI): Supply of c� Rail j� Release Machinery (Safety) Regulations 2008 SI 2008 No�...
  • Page 5: Tools Required

    Tools required Tool list: Optional: Ladder Hacksaw To reduce the total overall length by 140 mm the drive can be rotated by Marking pen Different drill bits for concrete 90° as shown in fig.11. This allows access and programming sideways. Pliers and(or wood (8, 6, 5, 4�5 mm) Unscrew the switch and mount it to the designated second position�...
  • Page 6: Hang Opener

    Hang opener Attaching door arm on the trolley Fully open the door, put down door opener on the door (Fig� A)� The straight door arm is already pre-assembled. Lay a piece of wood / cardboard on the marked spot (X)� Recommended installation: The trolley can be separated from the drive by pulling the red handle and manually pushing towards the door�...
  • Page 7: Installation Of Photocells (Optional Accessory G770E / 771Ev / 772E)

    If anything interferes with the door’s upward travel it will stop� If anything interferes with the door’s downward travel, it will reverse� To watch a short instructional video on programming your new garage door opener use your smartphone to read the Code on this manuals back side or visit www�chamberlain�eu� en 7...
  • Page 8: Test The Safety Reverse System

    To Erase all Remote Control Codes Test the Safety Reverse System To deactivate any unwanted remote, first erase all codes: Press and The safety reverse system test is important. Garage door hold the yellow round button on opener until the learn indicator light must reverse on contact with a 50 mm obstacle laid flat goes out (approximately 10 seconds)�...
  • Page 9: Special Features (Optional)

    4. Add MyQ devices Auto-Close Feature: Description of feature: The Chamberlain Safety IR Sensors must Use an internet enabled smartphone to add devices� Follow the instruc- be installed (required by EN60335-2-95)� tions on the app� Note: After you add a device, the blue light on the internet gateway will Activate: appear and stay on�...
  • Page 10: Operation Of The Door Opener

    Holiday Mode (requires 78EV wall control): Cycle counter: Portable remote controls do not function if this feature is activated� This garage door opener features a cycle counter (open/close = 1 cycle)� Program remote control via wall control 1� Pull plug� (requires 78EV wall control)�...
  • Page 11: Attach Warning Labels (See Fig� 28)

    Function sequence: Maintenance When operating the door opener by radio control or wall switch: • closes the door when it is fully open Check the system often, especially cables, springs and fas- • opens the door when it is fully closed teners, for signs of wear, damage or lack of balance�...
  • Page 12: Operator Light

    Never expose batteries to excessive heat such as sunshine, fire or the Frequently asked questions like! There is increased risk of leakage! Avoid contact with skin, eyes and mucous membranes� Rinse the parts 1. Door opener doesn’t work with remote control: affected by battery acid with plenty of cold water and consult a doctor •...
  • Page 13 6. The door opens, but does not close: 13. Door reverses after the force was programmed: • If installed, the photocells should be checked� If the LED at the photo- • See if the rail bends� The opener requires a lot of power to move the cells blink, the alignment should be checked�...
  • Page 14: Diagnostic Chart

    Diagnostic Chart Your garage door opener is programmed with self-diagnostic capabilities� The UP and DOWN arrows on the garage opener flash the diagnostic codes. DIAGNOSTIC CODE SYMPTOM SOLUTION Up Arrow Down Arrow Flash(es) Flash(es) The garage door opener will not Safety sensors are not installed, connected or wires may be cut�...
  • Page 15: Optional Accessories

    868MHz (868�30MHz, 868�95MHz, Equipment Regulation SI 2017 No� 1209� The full text of the EU decla- 869�85MHz) ration of conformity is available at the following internet address: TX: 865,125 MHz, 865,829 MHz, https://doc�chamberlain�de/ 866,587 MHz Sending Power: <10 mW Storage & Disassembly...
  • Page 16 13 (1x) 4 (1x) 5 (4x) 6 (4x) 7 (1x) 8 (1x) 19 (4x) (8x) 21 (4x) 500 mm 13 mm 10 mm...
  • Page 17 ca. 36 - 38 mm   10 (2x) min. 100mm max.150mm 0 - 50 cm 1: 0-100 mm 2: 100-130 mm...
  • Page 18 19 - 20 30 VDC 3 4 5 6 30 VDC 3 4 5 6 LIGHT 771EV 772E G770E 771EVK 0 1 2 2 30 VDC 3 4 5 6 30 VDC 3 4 5 6...
  • Page 19 ACHTUNG - Einklemmgefahr Regelmässig überprüfen und wenn notwendig einstellen, um sicher zu sein, dass das Tor umkehrt, wenn es einen 50 mm hohen Gegenstand berührt, der auf den Boden gestellt wurde. CAUTION - Danger of Entrapment Regularly check and adjust if necessary to ensure that the door reverses when it touches a 50 mm high object that is placed on the floor.
  • Page 20 Chamberlain GmbH Saar-Lor-Lux-Str� 19 66115 Saarbrücken Germany WEEE-Reg�Nr� DE66256568 1114A5848B 2023, all rights reserved...
