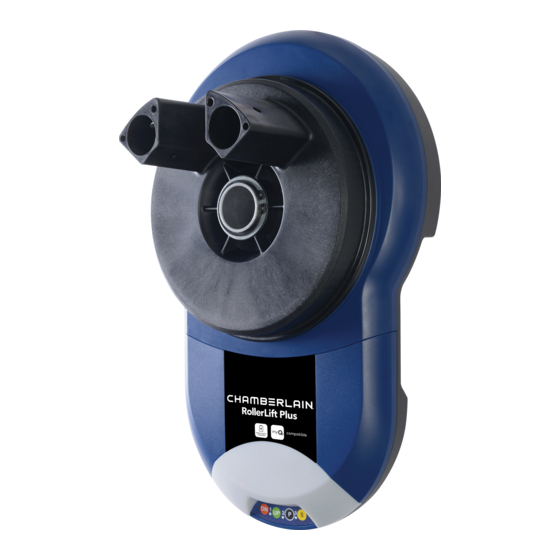

Chamberlain RollerLift Plus CR855MYQ Installation And Operating Instructions Manual
Hide thumbs
Also See for RollerLift Plus CR855MYQ:
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Related Manuals for Chamberlain RollerLift Plus CR855MYQ
Summary of Contents for Chamberlain RollerLift Plus CR855MYQ

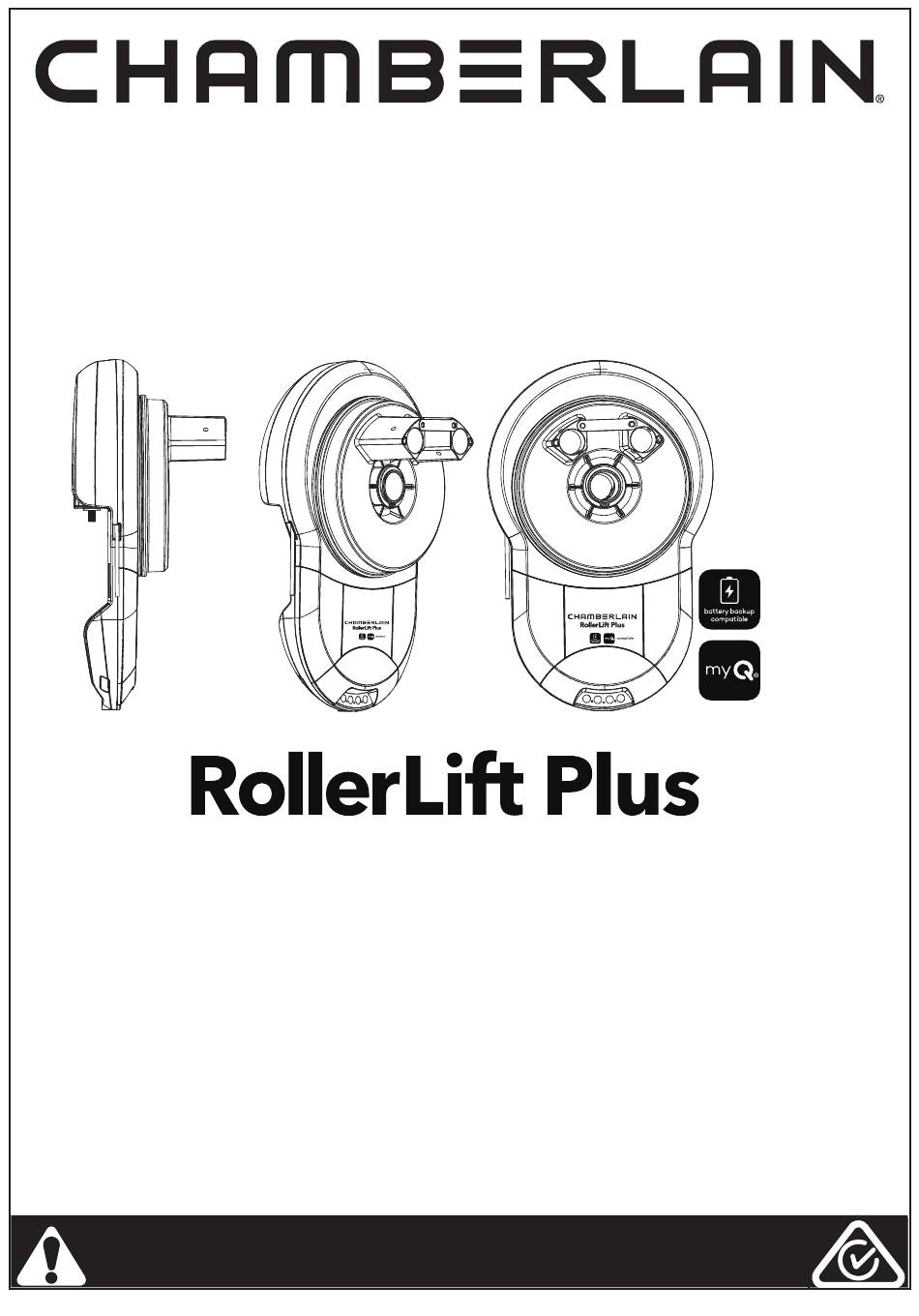

- Page 1 chamberlaindiy.com.au chamberlaindiy.co.nz capable CR855MYQ Garage Roller Door Opener Installation and Operating Instructions Owners Copy: SAVE THESE INSTRUCTIONS for future reference This manual contains IMPORTANT SAFETY information DO NOT PROCEED WITH THE INSTALLATION BEFORE READING THOROUGHLY...
-
Page 2: Table Of Contents
SAFETY INSTRUCTIONS WARNING Failure to comply with the following instructions may result in serious injury or property damage. • • Read and follow all instructions carefully. • The garage door opener is designed and tested to offer safe service provided it is installed and operated in strict accordance with the instructions in this manual. -
Page 3: Carton Inventory
INTRODUCTION CARTON INVENTORY TOOLS REQUIRED Ladder Instruction manual (this document) Stop collar Adjustable wrench for U-bolts already installed on the door 8 mm socket, 10 mm socket and 13 mm extended socket Clamp bracket, plates, washers (2) and nuts (2) and socket wrench E940C car visor transmitter (1) 300 mm socket extension (for minimum side-room... -
Page 4: Control Panel
INTRODUCTION CONTROL PANEL Terminal Block: used for external accessories (see chart below). NOTE: The terminal block is behind a plastic cover in the back housing. Use a small screwdriver to lever open the plastic cover if access to the terminal block is required. All wires should be secured appropriately. FUNCTION COLOUR POLARITY COMMENT... -
Page 5: Prepare & Test The Door
INSTALLATION TESTING THE DOOR Complete the following test to ensure your door is well balanced, and not sticking or binding: • Disable all locks and remove any ropes connected to the garage door. • Lift the door to about halfway and then release it. The door should remain spring balanced. -
Page 6: Pinning The Door
INSTALLATION PINNNG THE DOOR Note: A ballooning door may delay the safety reversal response and can compromise garage door security. • To remedy any ballooning, insert the supplied self tapping metal screws (inset 3) into where the curtain leaves the roll. Secure Free curtain Ballooning Add fasteners here... - Page 7 INSTALLATION LEFT/RIGHT HAND INSTALLATION LEFT RIGHT (handing must (factory be changed default during limit setting) setting - refer to section 13) Inside garage looking out...
-
Page 8: Installation Procedure
INSTALLATION INSTALLATION PROCEDURE Do not allow people to walk under or around the door during the installation process as serious injury can occur. NOTE: The opener can be installed on either side of the door. The following instructions are for RIGHT HAND Rope INSTALLATIONS (as illustrated i.e. -
Page 9: Adjustment & Testing
INSTALLATION SETTING THE LIIMITS FOR RIGHT OR LEFT HAD OPERATION AND FORCE Travel limits set how far your door goes up and down. Your opener must also be configured for right or left hand installation. If not the door will rotate in the reverse direction. Program Buttons: The Control Panel diagram in section 4 identifies the Control Buttons and LED layout Audible Beep: An audible “BEEP”... - Page 10 INSTALLATION TESTING THE SAFETY REVERSE SYSTEM The safety reverse system test is important. The garage door must reverse on contact with a 40 mm obstacle laid flat on the floor. Failure to properly adjust the opener may result in serious personal injury from a closing garage door.
-
Page 11: Timer To Close
The door may operate unexpectedly, therefore do not allow anything to obstruct the path of the door. SAFETY FIRST! Whilst Chamberlain have engineered safety features into your garage door opener, we urge you to consider fitting The Protector SystemTM (IR Beams) to your new garage door opener. In many countries these devices are compulsory to assist in preventing serious injury or property damage. -
Page 12: Audible Beep
PROGRAMMING AUDIBLE BEEP (OPTIONAL) The RollerLift Plus (CR855MYQ) has been factory set for an audible “BEEP”. The Audible beep can be turned OFF by using the following method. • Start with the door fully CLOSED. Flash • Press and Hold both “S” and “DN” buttons for 3 seconds. AUDIBLE •... -
Page 13: Wireless Programming
PROGRAMMING WIRELESS PROGRAMMING (REMOTE ACCESSORIES) NOTE: The transmitters supplied with your opener are preprogrammed by the factory. Activate the opener only when door is in full view, free of obstruction and properly adjusted. No one should enter or leave the garage while the door is in motion. Do not allow children to operate push buttons or remotes. -
Page 14: Operating Your Opener
3 minutes when the opener is activated. Max. drum rotations: Memory registers: 433.30/433.92/434.54 MHz Operating frequency: C to -25 Operating temperature: SPECIAL NOTE: Chamberlain strongly recommends that The Protector SystemTM (IR Beams) be installed on all garage door openers. -
Page 15: Wiring
WIRING SECTION TYPICAL WIRING DIAGRAM ROLLERLIFT PLUS (CR855MYQ) Information for Service Personnel green grey white External Receiver 24 vdc white black Wired Wall Button Obstruction Detection Beams REPLACE BATTERIES IN TRANSMITTERS Battery of the transmitters: The batteries in the transmitter have a long life. If the transmission range decreases, the batteries should be replaced. -
Page 16: Troubleshooting
TROUBLESHOOTING TROUBLESHOOOTING The opener will not operate from either the UP/DOWN The door opens but will not close (or reverses while activation button or the transmitters: closing): • Does the opener have electric power? Plug a lamp into the • Is something obstructing the door? Pull the manual release outlet. - Page 17 OPERATION AND MAINTENANCE Make life easier with these handy accessories. Convenient access Slimline visor Easily attaches to Smart lighting without using a remote works with the wall to control to brighten the remote control or key. any Security+ and both Security+ and whole garage.
-
Page 18: Accessories
OPERATION AND MAINTENANCE ACCESSORIES Model E964M Car visor remote Model 1702AML Outside quick release Model E148M Wireless wall button Model 774AML Obstruction beams Model E950C Keyring remote Model M-BBU24V Model E840C/E840M Wireless keypad DIAGNOSTIC CHART Your garage door opener is programmed with self-diagnostic capabilities. The indicator LEDʼs 1 & 3 on the control panel will flash a number of times to indicate a fault code exists. -
Page 19: Warranty
Additional purchase of the myQ Connectivity Kit is required to enable myQ functionality. Visit www.chamberlaindiy.com.au or www.chamberlaindiy.co.nz for more details. Trademark of The Chamberlain Group LLC ® Registered Trademark of The Chamberlain Group LLC © 2022 The Chamberlain Group LLC... - Page 20 Unit is required; parts for “do it yourself” repairs. If our technical team need to see the Unit to determine the nature of the fault, Chamberlain may direct you to return the Unit to •...
