5.2 PCB Layout
Figure 5-2
through
Figure 5-3

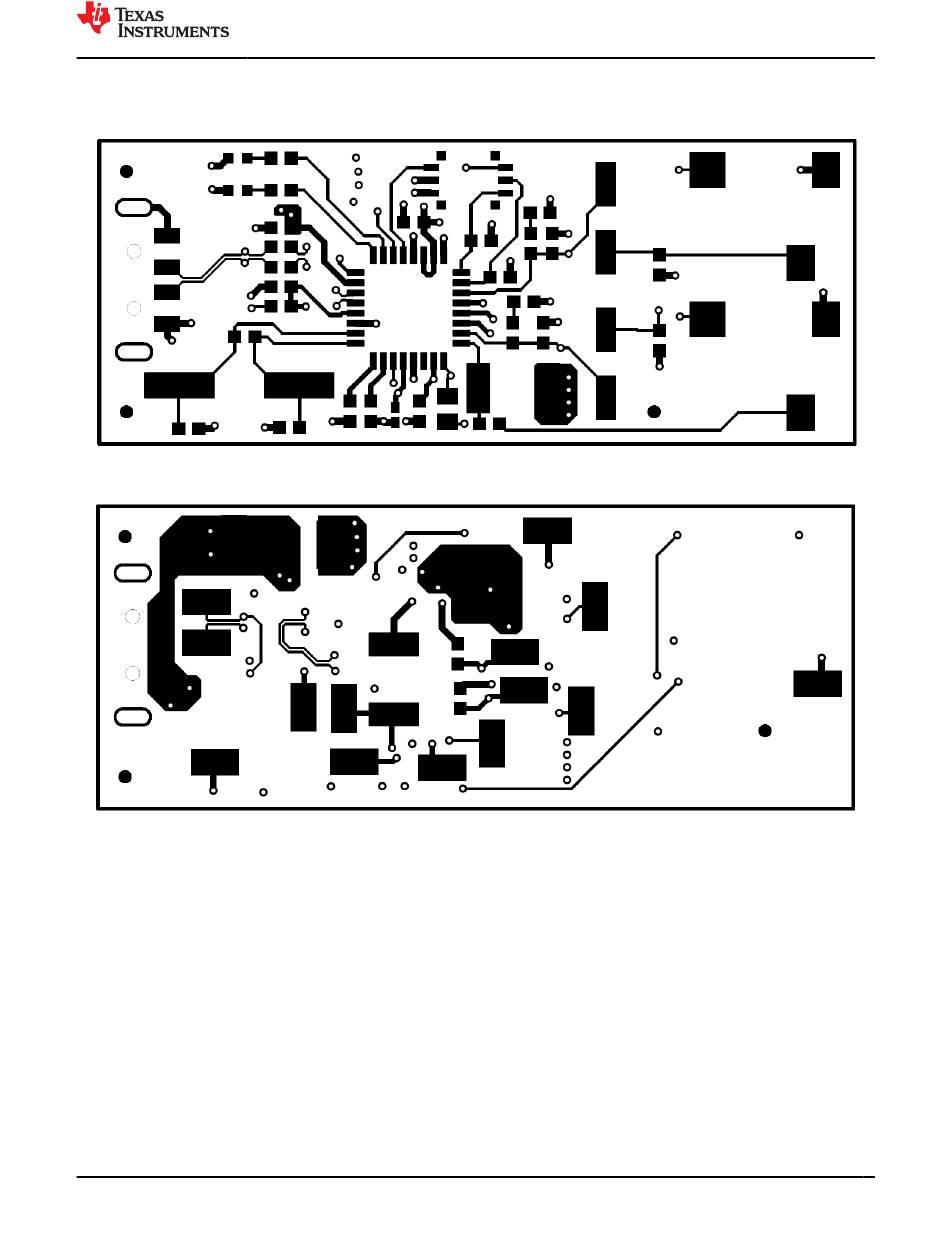

Figure 5-3. DEM-PCM2912A EVM Board Layout—Bottom Side
SBAU141A – JANUARY 2009 – REVISED APRIL 2024
Submit Document Feedback
illustrate the printed circuit board (PCB) layout for the DEM-PCM2912A EVM.
Figure 5-2. DEM-PCM2912A EVM Board Layout—Top Side
Copyright © 2024 Texas Instruments Incorporated
Hardware Design Files
DEM-PCM2912A Evaluation Module
