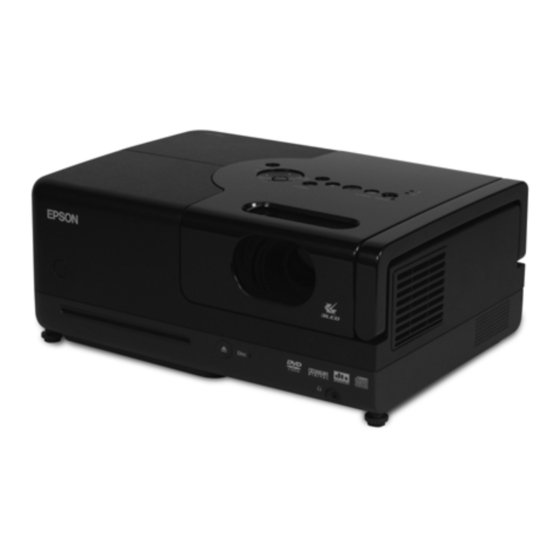

Epson MovieMate
50
User's Guide

Advertisement

Table of Contents
loading

Related Manuals for Epson MovieMate 50

Summary of Contents for Epson MovieMate 50

  • Page 1 ® Epson MovieMate User’s Guide...
  • Page 2 Epson product. Epson is not responsible for any use of this information as applied to other products. Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to...

  • Page 3: Table Of Contents

    Contents Welcome Registration and Warranty Optional Accessories About This Manual Epson MovieMate 50 Parts and Controls Playing Movies Choosing a Location Wall and Projection Screen Recommendations Viewing on a Wall Viewing on a Projection Screen Adjusting the Picture Adjusting the Sound...
  • Page 4 Using Epson MovieMate with Other Equipment Viewing Video from External Devices Connecting a USB Device Playing Epson MovieMate Audio Through an External Audio System Connecting a Computer or Laptop Doing More with Epson MovieMate Playing Music and DivX Videos and Viewing Photos...
  • Page 5 Caring for Your Epson MovieMate Protecting Epson MovieMate Cleaning the Lens Cleaning the Case Cleaning and Replacing the Air Filter Replacing the Lamp Resetting the Lamp Timer Storing Epson MovieMate Transporting Epson MovieMate Problem Solving What To Do When the Lights Flash...

  • Page 6: Welcome

    Instead, Epson will ship you a replacement unit anywhere in the United States or Canada, usually via overnight delivery. See your Extra Care Home Service brochure for details.

  • Page 7: Optional Accessories

    (Canadian sales). About This Manual See the Quick Guide to set up your Epson MovieMate and start using it. This book contains information on using all the features of MovieMate, troubleshooting tips, and specifications. Please follow these guidelines as you read through the manual: Warnings: Must be followed carefully to avoid bodily injury.

  • Page 8: Epson Moviemate 50 Parts And Controls

    Epson MovieMate 50 Parts and Controls Front View Lens cover slide Handle Remote control receiver Adjustable foot Disc slot Speaker Eject button Lens Air intake cover vent Headphone Lens jack Adjustable foot Back View Computer port Component video ports Video port...
  • Page 9 Top View Focus image Volume Power Source Enter Return Fix image shape (if MovieMate is tilted) Increase Reduce image size image size Turn Volume MovieMate on or off Power Source Lamp Enter warning light Return Temperature warning light Return to Stop Fix image shape previous menu...
  • Page 10 Remote Control Note: The remote control buttons can glow in the dark. Expose the remote control to light for several minutes before using it in the dark. Turn Function/numerics MovieMate Eject DVD toggle switch on or off Project from external equipment Pause movie and turn on light Adjust picture for...

  • Page 11: Playing Movies

    Choosing a Location You can use your Epson MovieMate just about anywhere—in the living room, bedroom, or even outside. You can use it with an optional floor-, wall-, or ceiling-mounted screen, or simply project on a flat white wall.
  • Page 12 MovieMate should be directly in front of the screen or wall, facing straight ahead (at a 90-degree angle to the surface). If the image is too low, you can raise it by extending the feet and tilting MovieMate up. This causes the image to lose its rectangular shape.

  • Page 13: Wall And Projection Screen Recommendations

    When setting up MovieMate, keep these considerations in mind: ■ Make sure you don’t block the air vents on the sides. ■ Make sure you place MovieMate within 10 feet of an electrical outlet, power strip, or extension cord. ■ Do not tilt MovieMate more than 15 degrees.
  • Page 14 Standard screens have a 4:3 shape ratio, which is better suited for viewing computer presentations and standard TV broadcasts. Watching DVD movies or HDTV broadcasts on a 4:3 ratio screen limits the image width and leaves black bars above and below the image. Available screen sizes vary, but are usually up to 60 inches diagonal (the same height as an 80-inch diagonal 16:9 screen).

  • Page 15: Adjusting The Picture

    1.0 gain to compensate for the additional brightness. Adjusting the Picture After you set up your Epson MovieMate and start your movie, you may need to make certain adjustments. ■...
  • Page 16 ■ Use the buttons on the control panel to adjust the image size. ■ Rotate the focus ring to sharpen the picture. ■ To enlarge or reduce the aspect ratio of the picture, press the button on the remote control to select , or (if available for the video source you’re using).

  • Page 17: Adjusting The Sound

    To resume, press on the remote control, or on the control panel. ■ To pause a movie and display the Epson logo, press on the remote control or control panel. To resume, press on the remote control, or on the control panel.

  • Page 18: Searching (Fast Forward Or Reverse)

    To resume, press again. Pressing any of the following buttons also cancels break mode: , or Note: After 5 minutes in break mode, the lamp turns off and the screen darkens. After 30 minutes, the power shuts off, and you need to press the button to turn it on again.

  • Page 19: Using Dvd Menus

    Using DVD Menus Many DVDs display a top menu at startup and include submenus that let you select chapters. ■ To display a menu, press ■ To select items in a menu, press , or . Then press if necessary. You can also select a title or chapter by number.

  • Page 20: Adjusting The Sound And Audio Modes

    Adjusting the Sound and Audio Modes You can switch between stereo sound and virtual surround sound and select from several audio modes, depending on the type of movie (or music) you’re playing. 1. To display the sound mode, press the button on the remote control.

  • Page 21: Using Epson Moviemate With Other Equipment

    You will need connection cables, which may be included with your external equipment, or may be purchased from an electronics store. Caution: Before connecting, make sure all equipment is turned off. Connect the external equipment as shown on the following page. Using Epson MovieMate with Other Equipment...
  • Page 22 C o m p o n e C r / P r White Output Audio RCA stereo audio cable Component video cable For connecting a cable or satellite TV receiver, DVR, or game console. Using Epson MovieMate with Other Equipment...
  • Page 23 , or Normal Full Zoom (if available for the video source you’re using). (Make sure the toggle switch on the remote control is set to the position.) Func.- Using Epson MovieMate with Other Equipment...

  • Page 24: Connecting A Usb Device

    Connect the drive or other device to the USB port as shown below. Playback starts automatically. When you’re finished, make sure you press before removing the device from the USB slot. For instructions on playing MP3, WMA, JPEG, or DivX files, see page 28. Using Epson MovieMate with Other Equipment...

  • Page 25: Playing Epson Moviemate Audio Through An External Audio System

    Playing Epson MovieMate Audio Through an External Audio System You can connect MovieMate to an amplifier or digital audio recorder. To output sound from MovieMate, the external equipment needs to have a digital coaxial audio input port. You will also need a digital coaxial cable, which may be provided with your external equipment, or may be purchased from an electronics store.

  • Page 26: Connecting A Computer Or Laptop

    Note: If your laptop cannot play movies on both the laptop display and an external display, you may need to disable the laptop display to view movies on MovieMate. See your laptop documentation for instructions. Using Epson MovieMate with Other Equipment...
  • Page 27 8. Normally, MovieMate selects the correct aspect ratio automatically. If you need to change the aspect, press the button on the remote control and select , or Normal Full (if available). Make sure the toggle switch on the remote control is set to the Zoom position. Func.- Using Epson MovieMate with Other Equipment...

  • Page 28: Doing More With Epson Moviemate

    Doing More with Epson MovieMate Follow the instructions in this section to play music and photos on your Epson MovieMate, use advanced playback controls, and adjust various MovieMate features. Playing Music and DivX Videos and Viewing Photos You can play music CDs and CDs or USB devices with MP3, WMA, and DivX files. You can also view JPEG photos on CDs or USB devices.

  • Page 29: Playing Mp3/Wma Music Or Divx Videos

    When you play MP3 or WMA files, scrolling through the list of songs will pause the music until you highlight the next file. Note: You can use the Setup menu to change the way files are displayed. See page 38 for instructions. Doing More with Epson MovieMate...

  • Page 30: Viewing Jpeg Photos

    1. To display the list of files, press 2. Select the music file you want and press to start playing it. 3. Select the JPEG file you want and press to start displaying the slideshow. Doing More with Epson MovieMate...

  • Page 31: Using Advanced Playback Controls

    DVD. Programs are saved for up to 10 discs, even after you change the CD or DVD. 1. Press . You see the program screen, which allows you to set a playback sequence: 2. Set the toggle switch on the remote control to the position. -123 Doing More with Epson MovieMate...

  • Page 32: Selecting Language, Subtitles, And Camera Angles

    To change camera angles, press 2. Press the button repeatedly to select the option you want. Note: You can also use the Playback information screen, as described on page 33. For a list of language codes, see page 61. Doing More with Epson MovieMate...

  • Page 33: Using The Playback Information Screen

    -123 page 19. ■ To display the next or previous menu page, press when the menu is displayed. ■ To open the menu during playback, press repeatedly until the menu you want is displayed. Doing More with Epson MovieMate...
  • Page 34 ■ To return to the initial menu, select and press Menu ■ To close the preview menu, select and press Exit 3. Select the track you want to see using the arrow buttons and press Doing More with Epson MovieMate...

  • Page 35: Customizing Epson Moviemate

    Once a password is set, you will need to enter it before you can view the locked CD or DVD. If you forget your password, enter in the column to reset 000000 Old Password the password. Doing More with Epson MovieMate...

  • Page 36: Locking The Power Button On The Control Panel

    30 minutes of inactivity (default setting). ■ SLEEP 10, 20, 30, 60, 90, 120, 150: The power switches off automatically after the number of minutes specified, whether or not a movie is playing. You can select from minutes. Doing More with Epson MovieMate...

  • Page 37: Changing Language Settings

    1. Press on the remote control. You see the Visual Setup menu. 2. Press to select Image 3. Press until you see the option you want to set. Doing More with Epson MovieMate...

  • Page 38: Using The Others Setup Page

    When you insert a disc or USB device that has MP3, WMA, JPEG, or DivX files, you normally see a menu showing the file and folder names. Select if you don’t want to see the menu (the audio or slideshow will start Without Menu automatically). Doing More with Epson MovieMate...

  • Page 39: Adjusting Dolby Audio Settings

    1. Press on the remote control. You see the Visual Setup menu. 2. Press to highlight , then press to select it. Option 3. Press until you see the option you want to set. Doing More with Epson MovieMate...

  • Page 40: Viewing Status Information And Resetting The Lamp Timer

    Info information. Note: If the lamp has been used less than 11 hours, 0H is displayed. 3. To reset the lamp timer after replacing the lamp, press 4. Press to exit. Doing More with Epson MovieMate...

  • Page 41: Caring For Your Epson Moviemate

    Caring for Your Epson MovieMate The Epson MovieMate needs little maintenance. All you need to do on a regular basis is keep the lens clean. You also may need to clean the air filter to help prevent overheating. Warning: Before you clean any part of MovieMate, turn it off and unplug the power cord. Never open any part of MovieMate, except as described in this User’s Guide.

  • Page 42: Cleaning The Case

    If you cannot clean the removable filter or it is broken, you need to replace it. You can purchase a new filter (part V13H134A14) from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com...
  • Page 43 3. If you need to clean or replace the filter, press up on the tab and lift off the cover. 4. Remove the old filter and install the new filter. 5. Replace the cover. Caring for Your Epson MovieMate...

  • Page 44: Replacing The Lamp

    Caution: If you continue to use the lamp after you see the replacement indicators, the lamp is more likely to break. You can purchase a new lamp (part # V13H010L44) from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online www.epsonstore.com...
  • Page 45 5. Grasp the lamp as shown and pull it straight out. Note: The lamp in this product contains mercury. Please consult your state and local regulations regarding disposal or recycling. Do not put in the trash. Caring for Your Epson MovieMate...

  • Page 46: Resetting The Lamp Timer

    You see the Visual Setup menu. 3. Press to highlight , then press to select it. Info 4. Press again. You see the following on the screen: 5. Select and press to reset the timer. Caring for Your Epson MovieMate...

  • Page 47: Storing Epson Moviemate

    Package MovieMate in its original packaging or equivalent (as described in the following section). Transporting Epson MovieMate Note: Epson shall not be liable for any damages incurred during transportation. MovieMate contains many glass and precision parts. If you need to transport it, follow these guidelines to prevent damage: ■...
  • Page 48 ■ Lift MovieMate by its handle as shown: Caring for Your Epson MovieMate...

  • Page 49: Problem Solving

    Problem Solving This section explains how to interpret MovieMate’s status lights, solve problems, and contact technical support. What To Do When the Lights Flash The lights on top of MovieMate indicate its status and let you know when a problem occurs. If all lights are off, make sure the power cable is connected correctly.
  • Page 50 MovieMate has a problem with its fan or temperature sensor. Wait a few minutes, then unplug MovieMate and contact Epson. See page 55. light is red and both warning lights are flashing red.

  • Page 51: Solving Moviemate Operation Problems

    Make sure the power cord is securely attached at both ends. Try using a different power outlet. If the power cord has been damaged, turn off MovieMate, disconnect the power cord, and contact Epson. See page 55. ■ Make sure you pressed the button.

  • Page 52: Solving Picture And Sound Problems

    ■ Some discs don’t support all of the remote control’s functions. ■ If you’re using a “universal” remote control, it might not work with MovieMate. Epson does not support any third-party remote controls. Solving Picture and Sound Problems The picture is blurry or out of focus.
  • Page 53 ■ If the picture looks darker than it used to, you may need to replace the lamp. See page 44. The colors on the screen don’t look right. ■ Press the button on the remote control to select the best setting for your viewing environment.
  • Page 54 You can’t change the language on a DVD. The DVD might not include multiple languages. Problems with External Video Equipment No picture appears on the screen. ■ Make sure the equipment is turned on. ■ Press the button on MovieMate or on the remote control. ■...

  • Page 55: Problems With External Video Equipment

    Epson with your questions. Speak to a Support Representative To use the Epson PrivateLine Support service, call (800) 637-7661 and enter the PIN on the included Epson PrivateLine Support card. This is the fastest way of speaking to a live representative, and it’s free.

  • Page 56: Purchase Supplies And Accessories

    Purchase Supplies and Accessories You can purchase screens, carrying cases, or other accessories from an Epson authorized reseller. To find the nearest reseller, call 800-GO-EPSON (800-463-7766). Or you can purchase online at www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales). Problem Solving...

  • Page 57: Specifications

    Specifications General Type of display Poly-silicon TFT active matrix Size of LCD panels 0.55 inch (14 mm) wide Lens F=1.44, f=16.6 mm Resolution (native format) 854 × 480 pixels × 3, 480p Brightness up to 1000 lumens (ANSI) Contrast ratio up to 300:1 Image size 30 to 300 inches (0.76 to 7.6 m)
  • Page 58 Remote Control Range Approx. 19 feet (6 m) AA × 2 Battery Operating angle Horizontal: +/– 30° Vertical: +/– 15° Projection Lamp Type 120 W UHE (Ultra High Efficiency) Part number ELPLP44/ V13H010L44 Lamp life Approx. 2000 hours Note: Lamp life results will vary depending upon mode selected, environmental conditions, and usage.
  • Page 59 Safety and Approvals United States FCC Part 15B Class B (DoC) UL60950-1 Canada ICES-003 Class B CSA C22.2 No.60950-1 Compatible Video Formats Composite video Normal aspect Wide aspect Zoom aspect Signal Resolution mode mode mode TV (NTSC) 720 x 480 640 x 480 854 x 480 854 x 480...
  • Page 60 * Only supported by models that include a VGA output port. ** Letterbox signal File Specifications Epson MovieMate supports MP3, WMA, DivX, DivX Ultra, and JPG files that conform to the following specifications: File system ISO9660 level 1 or level 2 (Discs that have been recorded in the packet write [UDF] format cannot be read.)
  • Page 61 Language Codes Abkhazian 6566 Gaelic; Scottish 7168 Magyar 7285 Sinhalese 8373 Gaelic Afar 6565 Gallegan 7176 Malayalam 7776 Slovensky 8373 Afrikaans 6570 Georgian 7565 Maltese 7784 Slovenian 8376 Amharic 6577 Gikuyu; Kikuyu 7573 Manx 7186 Somali 8379 Arabic 6582 Guarani 7178 Maori 7773...

  • Page 62: Index

    Audio system connection, 25 DVR, connecting, 21 to 23 AV amplifier, connecting, 25 Electrical specifications, 58 Blurry picture, 52 Environmental specifications, 58 Brightness Epson adjusting, 38 accessories, 7, 56 lamp, 44, 57 Home Service, 6 Buttons, 9 PrivateLine Support, 55...
  • Page 63 Game console, connecting, 21 to 23 Lamp General specifications, 57 brightness, 44, 57 light, 50 ordering, 7, 44 replacing, 44 to 46 specifications, 58 Headphones, 20 usage timer, resetting, 40, 46 to 47 Help, 7, 55 Language, 32, 37, 61 High altitude mode, 40, 50 Laptop connection, 26 to 27 Home Service, 6...
  • Page 64 No Signal message, 54 Registration, 6 Remote control buttons, 9 problems, 52 specifications, 58 Optional accessories, 7 Repeating scenes or tracks, 31 Overheating, 13, 42, 50 Replacing lamp, 44 to 46 Resetting lamp timer, 40, 46 to 47 Resolution, 57 Parental controls, 35 Parts, identifying, 8 to 9 Pausing, 17...
  • Page 65 Technical support, 7, 55 Temperature, MovieMate, 42, 50 Transporting MovieMate, 47 to 48 TV video formats, 59 to 60 USB devices, 24 VCR, connecting, 21 to 23 Ventilation, 13, 42, 50 Vents, 8 Video camera, connecting, 21 to 23 Video, compatible formats, 59 to 60 Volume, adjusting, 17 Wall projection, 13 to 15 Warranty, 6...
