ASSEMBLY INSTRUCTIONS

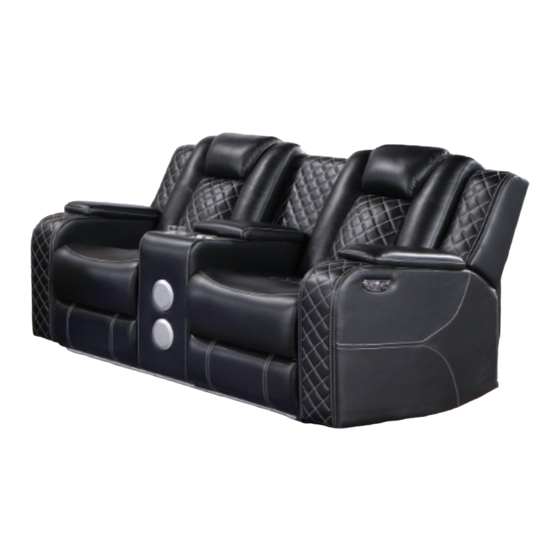

POWER DOUBLE RECLINER LOVESEAT W /
CONSOLE, POWER HEADRESTS & LED
NOTE: Do not use power tools for assembly. Power tool increase the risk
of over tightening which lead to splitting or cracking the wood.
PARTS LIST
NO.
A
B
C
D
E
F
HARDWARE LIST
NO.
1
2
3
ITEM NO :. SH8895BLK-2
LIGHT / SPEAKERS
DRAWING
DRAWING
DESCRIPTION
SEAT WITH WIRE
LSF BACK REST
RSF BACK REST
CONSOLE BACK REST
LSF EAR
RSF EAR
DESCRIPTION
ADAPTER
POWER SUPPLY FOR SPEAKER
STAR KNOB BOLT
(Ø1/4'' X50MM)
1 / 4
QTY
1PC
1PC
1PC
1PC
1PC
1PC
QTY
1PC
1PC
2PCS
Advertisement
Related Manuals for Homelegance SH8895BLK-2
Summary of Contents for Homelegance SH8895BLK-2
- Page 1 ASSEMBLY INSTRUCTIONS ITEM NO :. SH8895BLK-2 POWER DOUBLE RECLINER LOVESEAT W / CONSOLE, POWER HEADRESTS & LED LIGHT / SPEAKERS NOTE: Do not use power tools for assembly. Power tool increase the risk of over tightening which lead to splitting or cracking the wood.
- Page 2 Please follow the below drawings to assemble the item. STEP 1 Align the female brackets at the back onto the male brackets at the seat, insert back rest to the seat then push to the end and make sure it is fixed in position securely.
- Page 3 Please follow the below drawings to assemble the item. STEP 3 Connect the power cord and plug it into the outlet socket. Bluetooth speaker Recliner/Headrest STEP 4 USB Port 5V/1A Headrest Press Press Press Close Open/Close Open USB Port 5V/1A Chair Press Press...
- Page 4 STEP 5 USB Port 5V/1A Headrest Press A Master Press Close reset Open USB Port 5V/1A Chair Press A Master Press Open reset Close Control Switch Completed. CARE INSTRUCTION FOR POLYESTER In order to maintain the original appearance of your polyester funiture, please follow below simple care procedure: ●...
