SuperLinet IAD
Model 6501
Quick Installation
Document Number 6501-A2-GZ40-00
September 1999
Quick Installation
¶

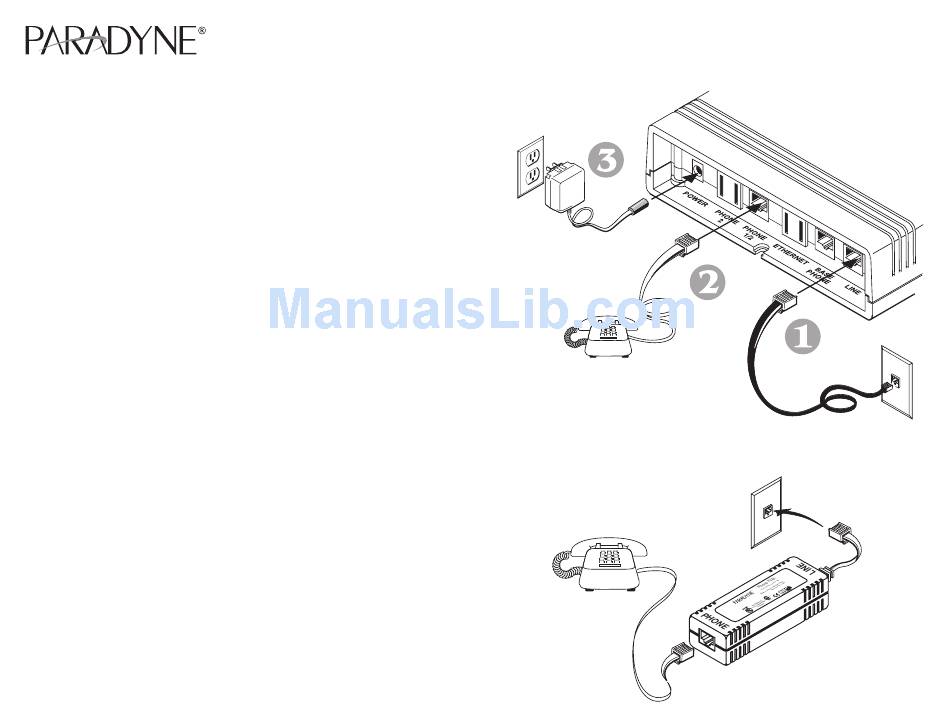

Go to the room where you want your new phone line. Plug the phone cable
that came with the SuperLine IAD into the wall jack. Plug the other end of
the phone cable into the LINE jack on the back of the SuperLine IAD.
·
Plug your phone into the PHONE 1/2 jack.
¸
Plug the power transformer into an ac outlet and the POWER jack.
See the SuperLine IAD Installation Instructions for more information.
Phone Filters
Connect a phone filter to all the phones and other devices (such as fax
machines, answering machines, alarm systems, or modems) that are attached
to the same line as the SuperLine IAD. (Do not connect a filter to any device
you plug into the SuperLine IAD.)
*6501-A2-GZ40-00*
*6501–A2–GZ40–00*
Copyright E 1999 Paradyne Corporation
SuperLine IAD
99-16494
99-16410
