- Page 1 FULL SYSTEM USER MANUAL...
- Page 2 Notably, components within this system are interconnected and can be linked to your computer for comprehensive monitoring and data capture. Our dedicated software allows you to monitor the performance of both the Xcalibur and the Tolerance Puller conveniently on one screen, ensuring a smooth and controlled...
-
Page 3: Table Of Contents
Noztek full system manual page index WARRANTY • SAFETY CAUTIONS • SAFETY GUIDELINES • PRODUCT SPECIFICATION SHEET • SET-UP INSTRUCTIONS • OVERVIEW • OPERATION INSTRUCTIONS • FILAMENT LOADING • MAINTENANCE • CONTACT •... -
Page 4: Warranty
In the rare instance of a covered defect, we offer remedies such as repair or replacement after assessing the reported fault. Noztek have the right to reject any warranty claim if we feel the request falls outside of our limitations Filing a Claim: Need assistance? Our customer support team is ready to help. -
Page 5: Safety Cautions
Safety For detailed safety cautions, kindly refer to the manual specific to each individual machine. Below is a summarized overview of the main safety cautions. Caution: Injury Risk This equipment contains moving parts. To prevent injury, keep hands, fingers, and other body parts clear during operation. Avoid wearing loose clothing or jewellery that may become entangled in moving components. -
Page 6: Safety Guidelines
Safety guidelines For detailed safety guidelines, kindly refer to the manual specific to each individual machine. Below is a summarized overview of the main safety guidelines. • Before operating, ensure you have a thorough understanding of the equipment. Carefully review the provided instruction manual for complete guidance. -
Page 7: Product Specification Sheet

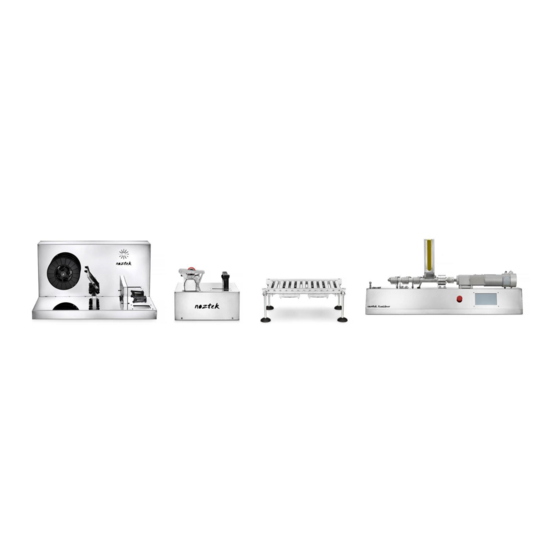

What is included in the full system? -Noztek Xcalibur -Noztek Winder 2 -Noztek Tolerance puller -Noztek Waterbath and/or Noztek Roller-conveyor Product Specification Sheet Please consult the respective manuals for detailed product specifications for each of the following machines: -Noztek Xcalibur... -
Page 8: Set-Up Instructions
45 cm: Minimum space between Winder 2 and Tolerance Puller 35 cm: Minimum space between Tolerance Puller and Roller/Waterbath 35 cm: Minimum space between Roller/Waterbath and Xcalibur 3. Power Connection Once the initial steps are completed, you can plug in the mains cables into the machines. -
Page 9: Overview
Updates In the latest iteration of the Xcalibur, a notable change has been made in the placement of the thermocouple, now directly connected to the nozzle. This adjustment facilitates a more precise temperature reading, albeit with a slightly extended time required to reach operating temperature. -
Page 10: Operation Instructions
Operation Instructions Important Note: Before initiating the full extrusion process, please set up each machine according to the setup and operation instructions individually, as outlined in their respective manuals. Familiarize yourself with the appropriate handling guidelines for the material you are using, especially its melting point. Failure to do so may compromise functionality and potentially lead to equipment damage. -
Page 11: Maintenance
Maintenance Changing the Nozzle Before attempting this operation, ensure you use heat-insulated gloves. To switch between nozzle sizes, heat the unit to the temperature required to melt the material previously used. Wait for 10 minutes to ensure all material is molten. - Page 12 Make adjustments in 5-degree Celsius increments. Connecting to a computer The Noztek Controller software empowers you to control the Xcalibur and gather data through a USB connection. Kindly refer to our Controller Software Manual for a more in-depth understanding of the software and detailed instructions.
-
Page 13: Contact
Contact noztek For more in-depth troubleshooting assistance, we encourage you to explore our FAQ help section on our website at www.noztek.com. In the event that your specific query is not addressed within this resource, please do not hesitate to reach out to our dedicated Noztek expert team for direct support and guidance.
