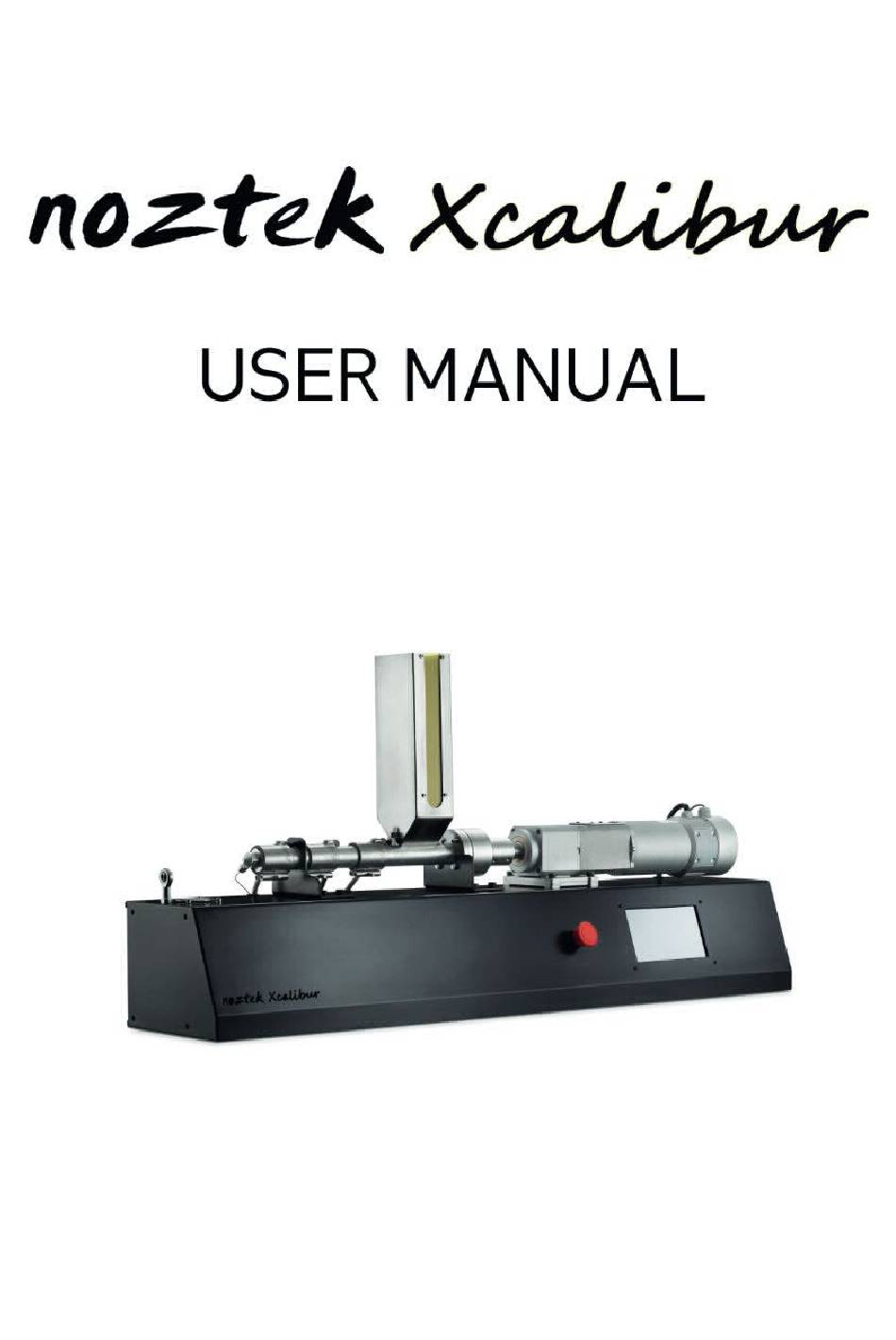

Noztek Xcalibur User Manual

Hide thumbs Also See for Xcalibur:

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the Xcalibur and is the answer not in the manual?

Questions and answers

Related Manuals for Noztek Xcalibur

Summary of Contents for Noztek Xcalibur

  • Page 2 Introduction Introducing the Noztek Xcalibur Extruder: Unleashing Advanced Desktop Extrusion. The Noztek Xcalibur extruder stands as a pinnacle in the world of desktop extrusion technology. It boasts a remarkable array of features, including its 3 high-temperature heater bands, meticulously engineered to perform consistently at temperatures of up to 600°C.

  • Page 3: Table Of Contents

    Noztek Xcalibur extruder Manual WARRANTY • SAFETY CAUTIONS • SAFETY GUIDELINES • PRODUCT SPECIFICATION SHEET 4,5,6,7 • SET-UP INSTRUCTIONS • OPERATION INSTRUCTIONS 9,10,11,12,13,14 • MAINTENANCE • CONTACT •...

  • Page 4: Warranty

    In the rare instance of a covered defect, we offer remedies such as repair or replacement after assessing the reported fault. Noztek have the right to reject any warranty claim if we feel the request falls outside of our limitations Filing a Claim: Need assistance? Our customer support team is ready to help.

  • Page 5: Safety Cautions

    Safety Caution: Injury Risk This equipment contains moving parts. To prevent injury, keep hands, fingers, and other body parts clear during operation. Avoid wearing loose clothing or jewellery that may become entangled in moving components. Tie back long hair and secure loose items before using the equipment. Always follow safety instructions provided in the user manual.

  • Page 6: Safety Guidelines

    Safety guidelines • Before operating, ensure you have a thorough understanding of the equipment. Carefully review the provided instruction manual for complete guidance. • Understand the proper, safe usage and limitations of the equipment. • Never use this equipment for any purpose other than its intended use. •...

  • Page 7: Product Specification Sheet

    2. General Description: • Introducing the Noztek Xcalibur Extruder: Unleashing Advanced Desktop Extrusion. The Noztek Xcalibur extruder stands as a pinnacle in the world of desktop extrusion technology. It boasts a remarkable array of features, including its 3 high-temperature heater bands, meticulously engineered to perform consistently at temperatures of up to 600°C.
  • Page 8 operating temperature within 10 minutes. This minimizes the risk of unmelted materials obstructing the motor, thereby preventing potential damage to the motor or the machine. Emergency Shutdown Capability: In cases of urgency, the system offers a rapid electrical shutdown mechanism for immediate cessation of all operations.
  • Page 9 These design parameters collectively contribute to the screw’s exceptional performance and the production of high-quality filament. • Motor speed: The Xcalibur provides the flexibility to be equipped with a motor operating up to either 33 revolutions per minute (rpm) or 57 rpm. • Hopper capacity: 750 gram maximum, 50 gram minimum.
  • Page 10 12. Technical Support and Contact Information: • info@noztek.com • https://noztek.com/contact/ • 44 (0) 203 384 6208 • Noztek Head office Unit C3 Dolphin Enterprise Centre Evershed Way Shoreham West Sussex BN43 6QB ENGLAND...

  • Page 11: Set-Up Instructions

    4 (Optional) USB Connection: To utilize this machine with our Noztek controller software, use the provided A-B USB cable. Connect the cable from the back of the machine to your computer.

  • Page 12: Operation Instructions

    Operation Instructions Important Note: Ensure that you acquaint yourself with the proper handling guidelines for the material you are using, particularly its melting point. Neglecting to do so may compromise the functionality and potentially damage the equipment. Please bear in mind that the quality of the extruded filament is influenced by factors beyond just the operation of the machine.
  • Page 13 To activate the heating bands, simply touch any of the temperature activation/status switches. Once activated, the Noztek Xcalibur display will transition to the 'warm-up' screen (see image below). The Noztek Xcalibur remains on this screen until the heating bands reach the set temperature or until the user manually aborts the heating process.
  • Page 14 STEP 3.2. Menu Screen The Menu screen provides users with access to all of The Noztek Xcalibur settings and additional functionalities, including temperature settings, speed settings, fan settings, and timer settings.
  • Page 15 “+” and “-” buttons and then confirming with the “SET” button. To cancel any modifications, press “BACK”. The Noztek Xcalibur allows a maximum temperature setting of 600°C for each heater band.
  • Page 16 The operational set-up is now complete. STEP 5. Shutdown Procedure: When finished, turn off the EMERGENCY POWER SWITCH, MAINS POWER SWITCH, These instructions ensure safe and efficient operation of the Noztek Xcalibur. Additional Information: Quality Measures: Extrude approximately 5m of filament, switch off the motor, cut off the excess material, and then restart the motor.

  • Page 17: Maintenance

    Make adjustments in 5-degree Celsius increments. Connecting to a computer: The Noztek Controller software empowers you to control the Xcalibur and gather data through a USB connection. Kindly refer to our Controller Software Manual for a more in-depth understanding of the software and detailed instructions.

  • Page 18: Contact

    Contact noztek For more in-depth troubleshooting assistance, we encourage you to explore our FAQ help section on our website at www.noztek.com. In the event that your specific query is not addressed within this resource, please do not hesitate to reach out to our dedicated Noztek expert team for direct support and guidance.
