OYSTER® V
INSTRUCTIONS FOR USE
COMBINED WITH OPERATING INSTRUCTION
OYSTER® TV / OYSTER® SMART TV
www.ten-haaft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OYSTER V Premium and is the answer not in the manual?

Questions and answers

Summary of Contents for Ten-Haaft OYSTER V Premium

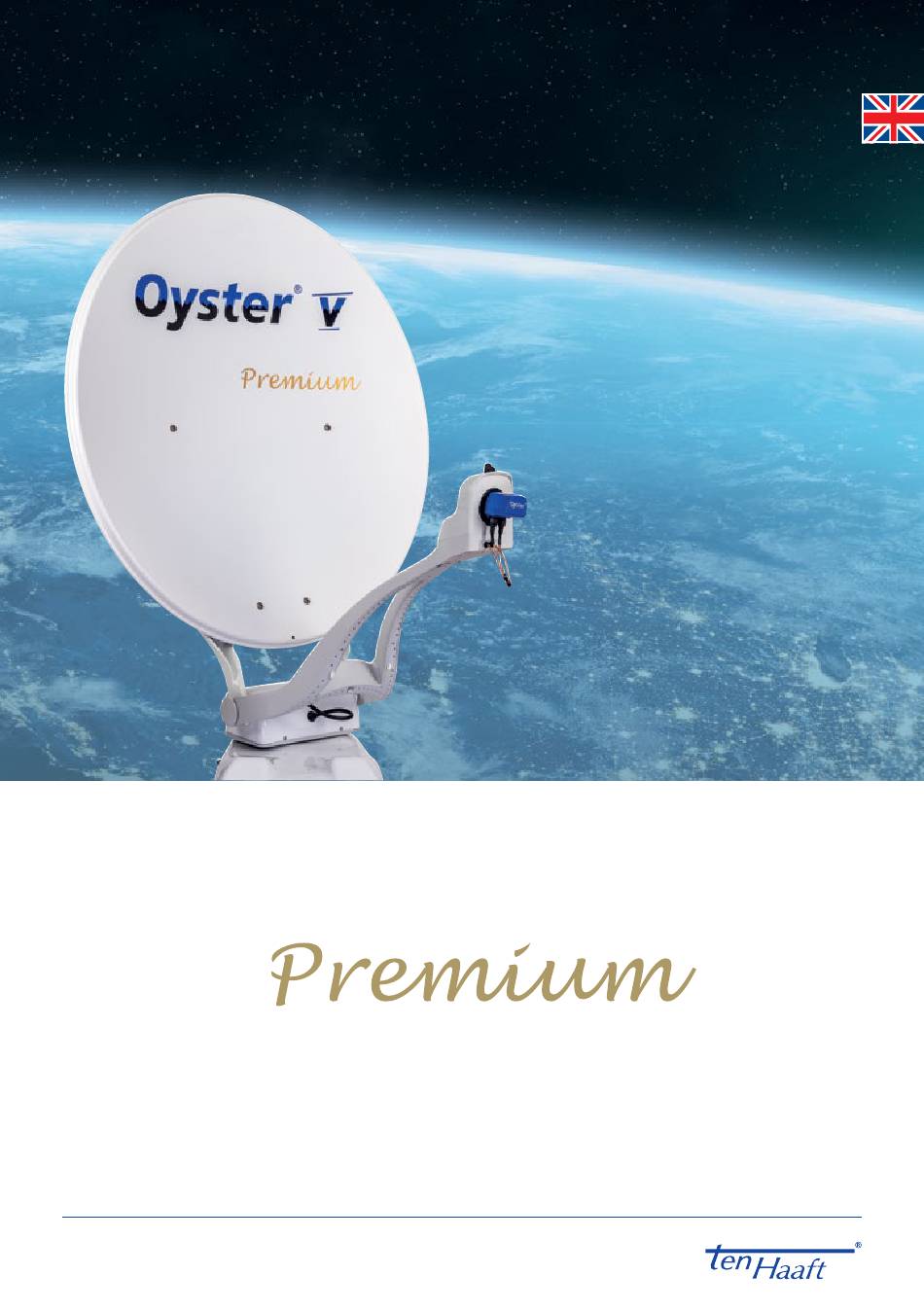

  • Page 1 OYSTER® V INSTRUCTIONS FOR USE COMBINED WITH OPERATING INSTRUCTION OYSTER® TV / OYSTER® SMART TV www.ten-haaft.com...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Operating elements 1.1 The first steps / Switching on and off 1.2 Antenna operation 2. Operating the system 2.1 Switching on / off 2.2 Open Sleep function 2.3 Button functions 2.4 ten Haaft® App - Download, installation and first software update 3.
  • Page 3: Operating Elements

    1. OPERATING ELEMENTS 1. OPERATING ELEMENTS 1.1 The first steps / Switching on and off OPERATING PRIORITY OF THE "OYSTER® TV" ON TWIN SYSTEMS If you have chosen a TWIN system with two "Oyster® TV" devices, the system can only be controlled by the FIRST The fully automatic premium satellite system is operated primarily via the remote control of your Oyster®...
  • Page 4: Antenna Operation

    1. OPERATING ELEMENTS 2. OPERATING THE SYSTEM 1.2 Antenna operation 2.1 Switching on / off With normal setup of the Oyster® Premium antenna system, no antenna operation is required. After switching Before using the satellite antenna: on the TV set, the entire system operates fully automatically. Please make sure that the view towards the south is free of obstacles (no trees, high buildings, or mountains, Nevertheless, you have the possibility to directly influence the antenna by various function keys on the Oyster®...
  • Page 5: Open Sleep Function

    2. OPERATING THE SYSTEM 2. OPERATING THE SYSTEM 2.2 Open Sleep function 2.3 Button functions A STOP button is on the remote control for your Oyster® TV set. To activate Open Sleep, press the STOP button Button Function shortly before switching off the main TV set with the red POWER button (button sequence "Stop" - "Power"). This only switches off the main TV set and the antenna remains run out and active.
  • Page 6: Ten Haaft® App - Download, Installation And First Software Update

    2. OPERATING THE SYSTEM 2. OPERATING THE SYSTEM 2.4 ten Haaft® app - download, installation and first software update Visit the Apple App Store or the Google Play Store and search for “ten Haaft”. Download the app free of charge and open it. All ten Haaft mobile satellite systems can be operated in a particularly user-friendly way with the corresponding app.
  • Page 7 2. OPERATING THE SYSTEM 2. OPERATING THE SYSTEM The app will prompt you for a few details during the installation process, such as whether you have the QR code for the FeatureBox. Please note that your FeatureBox will be shipped with three identical labels. This label contains the Wi-Fi name/SSID and the Wi-Fi password for your FeatureBox.
  • Page 8 2. OPERATING THE SYSTEM 2. OPERATING THE SYSTEM Important intermediate step: For some smartphone operating sys- Software is downloaded from the smartphone via its LTE con- tems, it is recommended to close the app completely. This means nection. The size of the download is only approx. 3-4 megabytes. that the app is not just moved to the background, but actually Please make sure that your smartphone has a working internet closed.
  • Page 9 2. OPERATING THE SYSTEM 2. OPERATING THE SYSTEM During the installation of the software update, you will see a green bar showing the progress. Normally, the image at the top right should show when the installation is complete. With some smartphone operating systems, however, the bar sometimes stops in the middle and then does not move any further.
  • Page 10: Service

    3. SERVICE 3. SERVICE 3.1 Reception in practice – aiming the satellite system 3.2 Reception in remote areas Satellite antennas are aimed at a satellite along three adjustment planes: LNB SETTINGS IN DIFFERENT REGIONS: This setting is done automatically at the Oyster® V Premium with SKEW option. This section describes how to 1.
  • Page 11 3. SERVICE 3. SERVICE For the following tables and angle specifications, the following applies as a definition: To determine the direction LNB set-up in different areas: of rotation, the viewer, like the LNB, looks towards the mirror of the parabolic antenna, i.e. he stands in front of Country Eutelsat Thor...
  • Page 12: Advisory Tones / Warning Tones

    3. SERVICE 3. SERVICE 3.3 Advisory tones / warning tones 3.5 Malfunctions Stop function Your FeatureBox has a sound signal generator to alert you in special situations. It must be possible to stop the movement of the antenna at any time. A satellite search can be paused or inter- rupted by the Stop button on the remote control of the Oyster®...
  • Page 13: Featurebox Update Via Usb Stick

    (top level). The UF file is available on the website https://ten-haaft.com/updates/. The maximum size of the file is approximately 6 Mbyte, so the storage capacity of the USB stick does not play This condition is neither unusual nor critical! a role.
  • Page 14 NOTES NOTES...
  • Page 15 Office hours: Neureutstraße 9 Monday – Friday 8:00 a.m. – 12:00 p.m. 75210 Keltern 12:30 p.m. – 4:30 p.m. Germany Telephone: +49 (0) 7231 / 58588-0 Telefax: +49 (0) 7231 / 58588-119 E-mail: service@ten-haaft.de www.ten-haaft.com Release 01/2024 · Part number: 3.150.0116...
