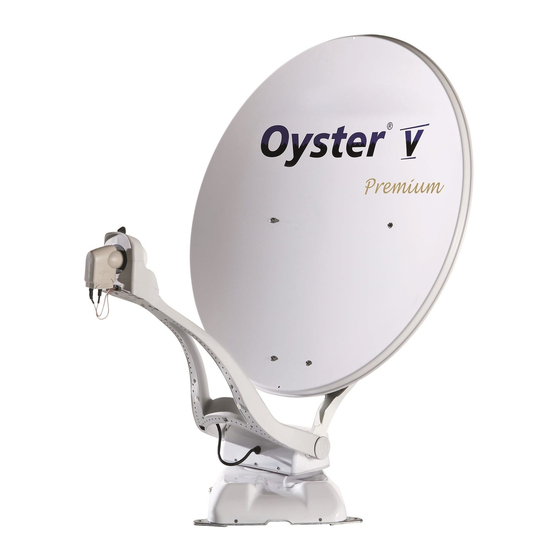

Ten-Haaft OYSTER V PREMIUM Instructions For Use Manual
  1. Manuals
  2. Brands
  3. Ten-Haaft Manuals
  4. Antenna
  5. OYSTER V PREMIUM
  6. Instructions for use manual

Ten-Haaft OYSTER V PREMIUM Instructions For Use Manual

Hide thumbs Also See for OYSTER V PREMIUM:
Table of Contents

Advertisement

Quick Links

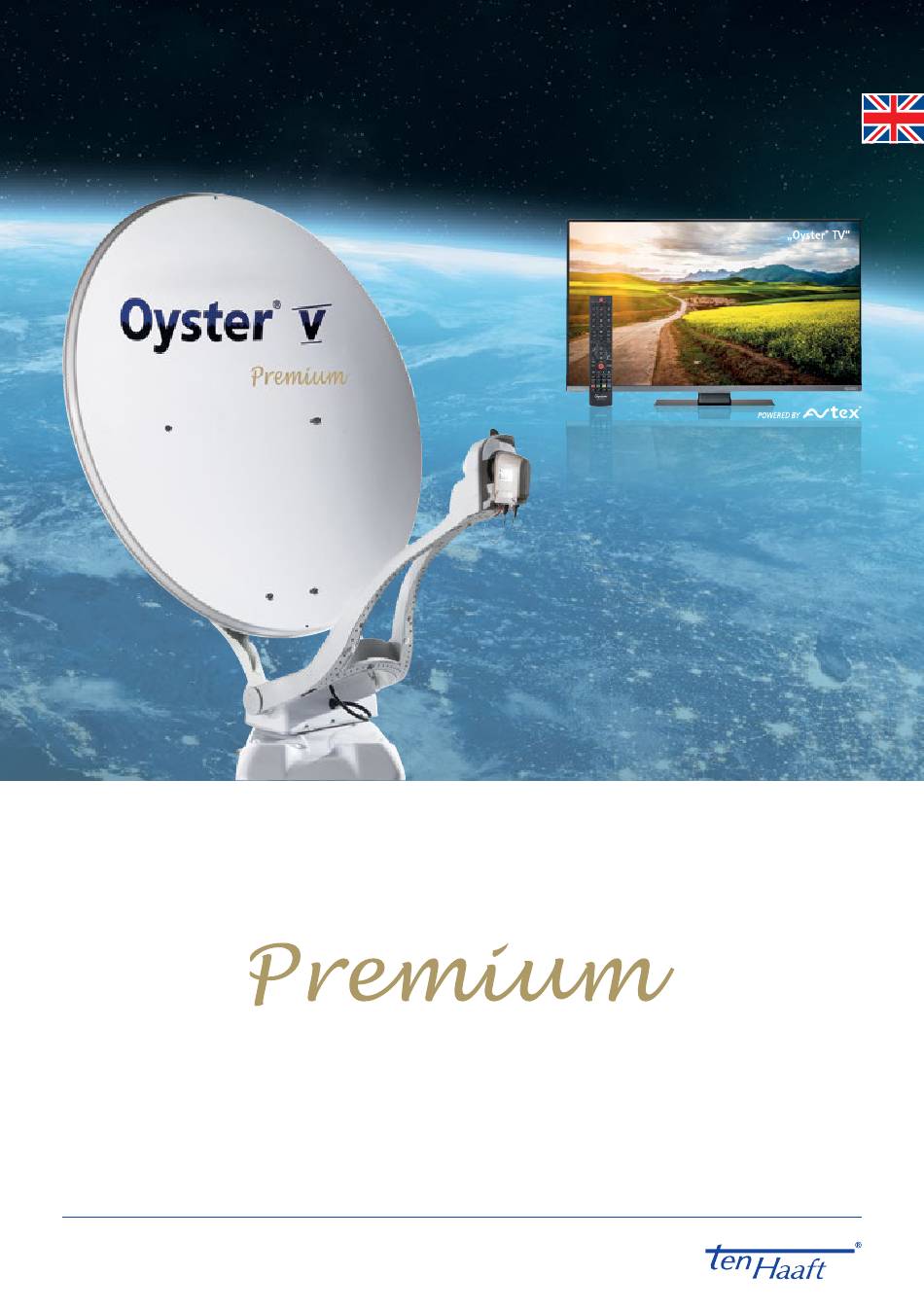

OYSTER® V
INSTRUCTIONS FOR USE
www.ten-haaft.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OYSTER V PREMIUM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ten-Haaft OYSTER V PREMIUM

Summary of Contents for Ten-Haaft OYSTER V PREMIUM

  • Page 1 OYSTER® V INSTRUCTIONS FOR USE www.ten-haaft.com...

  • Page 2: Table Of Contents

    1.5 Interfaces / control elements at device (32") 2. Operating the system 2.1 Switching the system on / off 2.2 Button functions 2.3 ten Haaft® app 3. Operating the "Oyster® TV" 3.1 Initial setup 3.2 General TV settings 3.3 Channel settings and search (DVB-T / T2) 3.4 Channel settings and search (DVB-S / S2)

  • Page 3: Control Elements

    You can also use your mobile device or tablet (IOS or Android) in combination with the ten Haaft® app on it at any time to control and operate your system. See section 2.3 / page 16 in these instructions.

  • Page 4: Operating The Antenna

    1. CONTROL ELEMENTS Please note: When you switch the primary TV set on, it immediately resumes priority over the control commands. The system will provide an image to the primary TV set. When you switch the primary TV set off, the antenna will retract.

  • Page 5: Remote Control

    1. CONTROL ELEMENTS 1.3 Remote control Button Function POWER: In standby mode, this button will switch the "Oyster TV" ® with integrated receiver into operating mode. 0 – 9 NUMBER BUTTONS: Press one of the number buttons (0 – 9) 1 - 9 to directly select a channel or enter a number via the menu.
  • Page 6 1. CONTROL ELEMENTS Button Function NAVIGATION UP: Press this button to navigate one menu item up. NAVIGATION LEFT: Press this button to switch between available options. NAVIGATION RIGHT. Press this button to switch between available options. NAVIGATION DOWN: Press this button to navigate one menu item down.
  • Page 7 1. CONTROL ELEMENTS Button Function Volume up Volume down Channel up Channel down Press to stop antenna motion STOP Press to start antenna motion START Press to retract antenna PARK Without function at Oyster® V COUNTRY Press to open a window showing details of the supply voltage. BATT Press to open a window showing details of the antenna signal.

  • Page 8: Interfaces / Control Elements At Device (19", 21.5", 24")

    1. CONTROL ELEMENTS 1.4 Interfaces / control elements at device (19", 21.5", 24") 02 03 131415...
  • Page 9 1. CONTROL ELEMENTS Inputs/outputs 01) CI / CI+ module slot with dust cap 02) USB 1 port 03) USB 2 port 04) Satellite input DVB-S/S2; F-jack 05) RF antenna port DVB-T/T2; IEC port 06) Headphone jack 3.5-mm stereo jack 07) AV input 08) Audio output (coaxial) S/PDIF output 09) HDMI 1...

  • Page 10: Interfaces / Control Elements At Device (32")

    1. CONTROL ELEMENTS 1.5 Interfaces / control elements at device (32") 02 03 04 05 15-21...
  • Page 11 1. CONTROL ELEMENTS Inputs/outputs 01) Satellite input DVB-S/S2; F-jack 02) RF antenna port DVB-T/T2; IEC port 03) Headphone jack 3.5-mm stereo jack 04) AV input 05) Audio output (coaxial) S/PDIF output 06) HDMI 1 07) HDMI 2 08) 12 Volt / 24 Volt DC input 09) Cinch 10) On/Off switch 11) USB 1 port...
  • Page 12 1. CONTROL ELEMENTS COMMON INTERFACE (CI+) SLOT The CI+ slot holds a Conditional Access Module (CAM) with a SmartCard, allowing you to watch programmes and use offerings provided by pay-TV stations. Contact your provider for more information about agreements and modules. Note: Conditional Access Module and SmartCards are available separately.
  • Page 13 1. CONTROL ELEMENTS SIGNAL INPUTS HDMI / AV Setup The menus for HDMI or AV connections are similar to those of the standard TV reception, with the exception that you cannot change the channel settings. If there is no signal when HDMI is selected as input source, the following screen is shown: If no signal is found within 30 minutes, the system automatically switches into standby mode.

  • Page 14: Operating The System

    2. OPERATING THE SYSTEM 2.1 Switching the system on / off Caution! When switching on the "Oyster® TV" Premium system with integrated receiver, the antenna will start the auto- matic satellite search. The receiver needs up to one minute to initialise after being switched on. The antenna then folds up and starts the automatic satellite search.

  • Page 15: Button Functions

    2. OPERATING THE SYSTEM 2.2 Button functions Button Function The COUNTRY Button is without function because of the three interacting components GPS, COUNTRY compass and inclination sensor. Press the PARK button to retract the antenna. This may be useful e.g. in a storm. The receiver PARK remains in active for use with external devices.

  • Page 16: Ten Haaft® App

    2. OPERATING THE SYSTEM 2.3 ten Haaft® app 1) Load the ten Haaft® app to your mobile device or tablet. You can download this app free of charge from the Google Play Store or iTunes Store. 2) Once you have downloaded and installed the app, open it.
  • Page 17 2. OPERATING THE SYSTEM 4) Scan the QR code on the sticker. Note that your FeatureBox is provided with three identical stickers when leaving the factory. These stickers specify the Wi-Fi name/SSID and the Wi-Fi password for your FeatureBox. Each FeatureBox has a unique name and password! One of the stickers is attached at the factory to the FeatureBox, another one is on the operating manual and installation instructions provided.
  • Page 18 2. OPERATING THE SYSTEM 5) For Android, the FeatureBox will automatically connect to the app via WiFi. For Apple, the WiFi connection of the FeatureBox must be selected in the device settings. The app indicates its connection to the WiFi system.

  • Page 19: Operating The "Oyster® Tv

    (See section 4.5, Favourite lists (satellite TV) if you wish to create further lists.) Should any channels be missing or if you wish to add further channels, you need to start the automatic channel scan. Select a signal source. If using a ten Haaft satellite system, DVB-S must be selected. Press to open the signal input menu.

  • Page 20: General Tv Settings

    3. OPERATING THE "OYSTER® TV" 3.2 General TV settings TV SETUP MENU The setup menu is used to adjust the TV set to your personal preference. • Press to select a display menu. SETUP • Press to navigate in the menus. •...
  • Page 21 3. OPERATING THE "OYSTER® TV" DIGITAL TV SETUP In this menu you can adjust the general settings for the reception of digital TV. The following options are avail- able: Audio Language Select your preferred primary and secondary language. Subtitle Language Set your preferred subtitling language.
  • Page 22 3. OPERATING THE "OYSTER® TV" LOCK Here you can restrict the access to specific functions of the TV set. If the lock is enabled, you need to enter a password before you can make changes in locked areas. Lock System Locks the system.
  • Page 23 3. OPERATING THE "OYSTER® TV" FUNCTIONS In this menu you can change the following options. OSD Language Changes the language of the display menus. User setup Advanced user settings. User setup: Aspect Ratio The following options are available: • Auto •...

  • Page 24: Channel Settings And Search (Dvb-T / T2)

    3. OPERATING THE "OYSTER® TV" User setup: Noise Reduction Reduce or change image distortion and signal noise. User setup: Sleep Timer Here you can set the time at which you want the TV set to go off automatically. Use to select a time. Then press EXIT User setup: OSD time...
  • Page 25 3. OPERATING THE "OYSTER® TV" Channel Select the channel you wish to adjust. Frequency Cannot be changed. Country Cannot be changed. Manual search Search and set the channel manually. Auto Search Here you can sort, delete and add entries to the Favourites list. Channel Edit Here you can sort and delete channels or add them to the DVB-T Favourites list.
  • Page 26 3. OPERATING THE "OYSTER® TV" When this screen opens, wait until the scanning process has completed. This may take some minutes. Once the search is completed, the system will determine the target region. If more than one regional channel is received, press to select the primary region and then press .

  • Page 27: Channel Settings And Search (Dvb-S / S2)

    3. OPERATING THE "OYSTER® TV" To repeat the scan for terrestrial TV stations (option, terrestrial antenna not included in supply), press and hold the "Auto Tune" (AQT) button. This will delete the existing channel list. 3.4 Channel settings and search (DVB-S / S2) Select and switch to satellite TV.
  • Page 28 3. OPERATING THE "OYSTER® TV" The scan adds all new channels found on the satellite to the end of the standard channel list. All channels can be sorted and changed to your preference. FURTHER SETTINGS Using the standard settings, the system will find all free-to-air (FTA) or encrypted channels. Otherwise, you can change the satellite settings in the "Advanced Setup"...
  • Page 29 3. OPERATING THE "OYSTER® TV" Press to open the satellite and TP manager. GREEN Select the satellite, then press to view the transponder list. Press to add symbol rate, frequency and polarity. Press to save your settings. Press to start scanning the new transponder. All new channels are added to the end of the channel list. BLUE...
  • Page 30 3. OPERATING THE "OYSTER® TV" TROUBLESHOOTING SATELLITE SETUP (DVB-S) 1. No channels were found, and the signal and quality display show only low or no values at all. Check all cables between TV and LNB. Make sure that the antenna is aimed at the right satellite and that the view is not obstructed by trees or other obstacles.
  • Page 31 3. OPERATING THE "OYSTER® TV" EDIT CHANNELS (SATELLITE TV MODE) Press to open the menu and select "Channel". Select "Channel Edit". Press to select a PAGE+ PAGE- SETUP channel. Use the colour buttons to choose the following settings: Press to delete a channel. Use to select it.

  • Page 32: Favourites List (Satellite Tv)

    3. OPERATING THE "OYSTER® TV" 3.5 Favourites list (satellite TV) Creating a new Favourites list: Press to open the menu and select "Channel". Select "Favourites list". Press SETUP repeatedly to scroll the Favourites lists until a blank list opens. The first two Favourites lists are configured with alternative channels at the factory (see section 4.1 Initial setup).
  • Page 33 3. OPERATING THE "OYSTER® TV" 2. Check PVR File System Here you can check the PVR file system. The system shows the recording speed. Press to continue or to exit the menu. EXIT Press to exit the menu. EXIT 3. Format Formatting your USB stick or hard disk will delete all data on it.
  • Page 34 3. OPERATING THE "OYSTER® TV" DIRECT RECORDING Press to start recording. After recording, you can view the recording's details by pressing INFO. Caution! Make sure that your USB stick or hard disk has sufficient free memory space and that you have set up the PVR file system before recording.
  • Page 35 3. OPERATING THE "OYSTER® TV" Press to play back files from the list. Press to stop playback. Press to start recording for time-shifted TV playback. Time Shift Press start the playback of a time-shifted TV recording. Press to exit this mode. TIME-SHIFTED RECORDING Electronic Programme Guide (EPG) The EPG provides information about ongoing and upcoming programmes of the channel selected.
  • Page 36 3. OPERATING THE "OYSTER® TV" to navigate through the channels and programmes. Press to navigate to the PAGE+ PAGE- subsequent events in the EPG. The number of days shown in the EPG may vary between channels (max. 7 days). to switch to the selected channel, however, this is only possible for the first event in the EPG as the other ones have not started yet.

  • Page 37: Further Functions

    3. OPERATING THE "OYSTER® TV" 3.7 Further functions VIDEOTEXT (NOT PROVIDED BY ALL CHANNELS) Videotext is an information system you can view on your TV set. You can use the corresponding control buttons to open the pages listed in the index. Note: While videotext is shown, no display menus can be opened.
  • Page 38 3. OPERATING THE "OYSTER® TV" Quick access Categories sorted by colour and subject are shown at the bottom of the videotext screen ( BLUE GREEN YELLOW • You can access these categories by pressing the buttons of the corresponding colour. •...
  • Page 39 3. OPERATING THE "OYSTER® TV" SUBTITLES If a channel broadcasts subtitles, press to show them. To change the language, press and then SUBT to confirm. PROGRAMME INFORMATION You can display information about the programme you are currently watching by pressing .
  • Page 40 3. OPERATING THE "OYSTER® TV" AUDIO You can select the audio language and track by pressing AUDIO Select a language using and press OK.

  • Page 41: Technical Data Of "Oyster

    3. OPERATING THE "OYSTER® TV" 3.8 Technical data of "Oyster TV" ® ten Haaft TV devices "Oyster TV" - 19“ "Oyster TV" - 21.5“ "Oyster TV" - 24“ "Oyster TV" - 32“ ® ® ® ® Type L188TRS L219TRS L249TRS...

  • Page 42: Service

    4. SERVICE 4.1 Reception in practice – aiming the satellite system Satellite antennas are aimed at a satellite along three adjustment planes: 1. AZIMUTH ANGLE (COMPASS HEADING) The azimuth angle defines the horizontal setting of the antenna, specifying the angle between North and anten- na heading.

  • Page 43: Reception In Remote Areas

    4. SERVICE 4.2 Reception in remote areas LNB SETTINGS IN DIFFERENT REGIONS: This setting is done automatically at the Oyster® V Premium with SKEW option. This section describes how to fine-tune the LNB to optimise reception in the fringe of a TV satellite's footprint. This requires loosening the LNB bolts and turning the LNB by a specific angle.
  • Page 44 4. SERVICE The following definitions apply to the tables and specified angles below: To determine the direction of rotation, the viewer must look at the front face of the antenna as does the LNB, i.e. the viewer must be standing in front of the antenna.
  • Page 45 4. SERVICE LNB settings in different regions: Country Eutelsat Thor Astra 4 Hotbird Astra 1 Astra 3 Astra 2 0.8° West 4.8° East 13° East 19.2° East 23.5° East 28.2° East 5° West Germany, Austria, -23° -16° -12° -6° 0° 4°...

  • Page 46: Troubleshooting

    4. SERVICE 4.3 Troubleshooting Stop function It is essential that the antenna motion can be stopped at any time. A satellite search can be stopped or inter- rupted by pressing the SAT button on the control panel, the Stop button on the Oyster® TV set’s remote control or the Power button on the FeatureBox.

  • Page 47: Featurebox Update Via Usb Stick

    4. SERVICE 4.4 FeatureBox update via USB stick Further to automatic updates via the app, which is the preferred option, updates can also be performed manually using a USB stick. You will need a USB stick formatted as FAT/FAT32 with the file tenhaaft.uf loaded into its root directory (top level).
  • Page 48 4. SERVICE BLUE LED Once the data are saved in the internal update memory, they can be distributed to the hardware components connected to the FeatureBox. This may happen automatically. However, it is often not possible to update all components at once because the FeatureBox does not know which state a component is in (e.g.
  • Page 49 4. SERVICE Sequence Description Device is switched off (standby) --> Switch on the device Device is switched on --> Plug in the USB stick Data are being transmitted or updated --> Do not touch – wait! After the right red LED has turned off permanently, you can remove the USB stick. -->...
  • Page 50 NOTES...
  • Page 51 NOTES...
  • Page 52 Haaft GmbH Office hours: Neureutstraße 9 Monday – Friday 8:00 a.m. – 12:00 a.m. 75210 Keltern 01:00 p.m. – 4:30 p.m. Germany Telephone: +49 (0) 7231 / 58588-0 Telefax: +49 (0) 7231 / 58588-119 E-mail: service@ten-haaft.com www.ten-haaft.com Release 08/2018 · Part number: 3.150.0116...
