1862 VoIP IAD

Quick Installation Instructions

Document Number 1862-A2-GZ10-00

November 2004

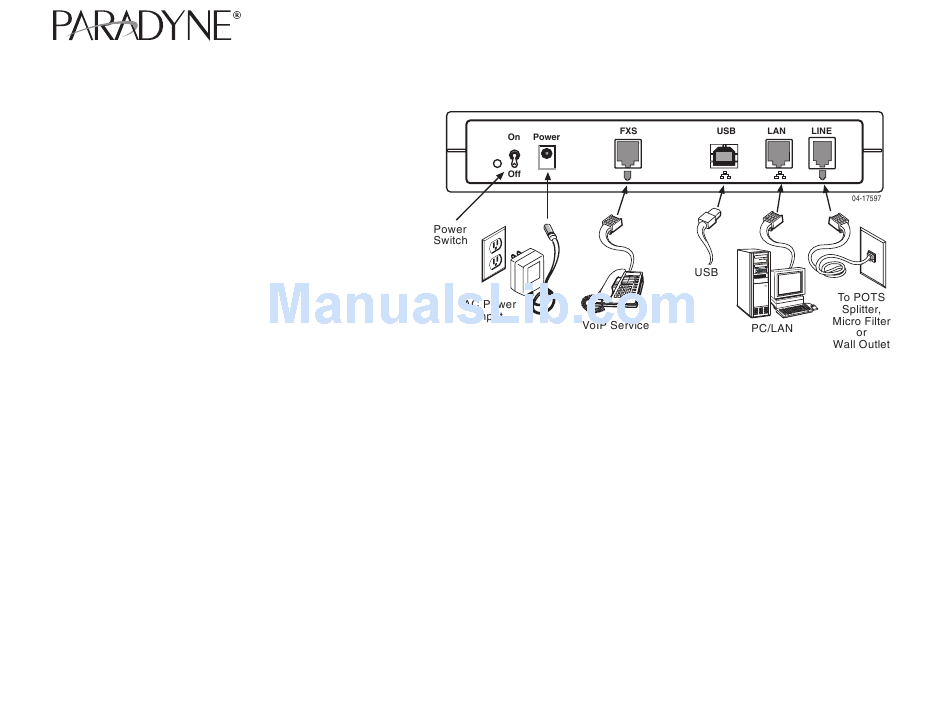

Installation

➊

If you will use the USB port, install the USB driver:

– Insert the CD in your CD-ROM drive

– Browse to the USB Driver directory

– Start setup.exe

– Follow the instructions on your screen

➋

Connect the power adapter to the Power jack of the IAD,

then plug the power adapter into an AC wall outlet.

➌

Connect the FXS port of the IAD to your analog telephone with an RJ11 connector cable.

➍

Optionally, connect the USB port of the IAD to a free USB port on your PC with a standard USB cable.

➎

Alternatively, connect the LAN port of the IAD to your PC's Ethernet port, or to an Ethernet switch or hub, with an RJ45 cable.

➏

Connect the ADSL port to the wall outlet, a POTS splitter, or micro filter (consult your service provider), with an RJ11 connector cable.

➐

Turn on the power switch on the rear panel.

Using the Web Interface

Configuration of the Gateway is performed using its integral web interface. To use the web interface, start your Internet browser. Type

the default IP address for the Gateway into the address field: http://192.168.1.101 Enter the default username root and the default

password 1234 when prompted. Your PC must be on the same subnet as the Gateway. See the user's guide on the CD for details. 1
