Toto ECOPOWER TET1UBi CP Series Installation Manual

Toto ECOPOWER TET1UBi CP Series Installation Manual

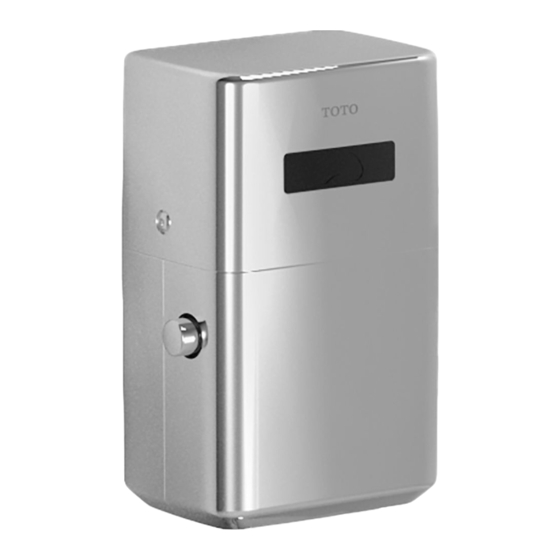

Exposed flush valve

Advertisement

Quick Links

TET1UBi*#CP/TET1LBi*#CP/TET1GBi*#CP/TET6UBi*#CP/TET6LBi*#CP/TET6GBi*#CP/TEU1UAi*#CP/TEU1LAi*#CP/TEU1GAi*#CP
* indicates '2' for TOTO/Georgia-Paci c IoT system, '4' for TOTO/TeraCode IoT system
NOTE: Install the ush valve according to the Flush Valve Installation Manual.
Valve Body Assembly*
(* may vary in appearance depending on model. TET1UBi*#CP model shown.)
WARNINGS
Please read and adhere to these notes. Failure to do so could result
in personal injury, risk of re or smoke and/or property damage.
- Install the product according to installation instructions.
- Install the product in the correct vertical orientation.
- Do not use or operate the product with it's covers removed.
For i2 system
1. Pull the battery tab out from IoT communication card.
NOTE: Red LED light will blink to indicate that the IoT communication card
is functioning.
For i4 system
1. Remove the battery cover, and install the 4 AA batteries included in the package.
NOTE: Green LED light will blink to indicate that the IoT communication card
is functioning.
2. Remove the ush valve top cover.
3. Apply the QR code sticker onto the inner surface of the ush valve top cover.
4. Connect the IoT wire harness (black and white). Listen for the "click"
indicating a secure connection.
5. Commit the IoT communication card according to TOTO's Instructions.
6. Slide the hook of the IoT communication card up into the notch of the top cover.
7. Hold the IoT communication card and top cover together and carefully guide into
place onto the valve body.
8. Secure the top cover to the valve body.
For any questions regarding installation or maintenance, please contact:
TOTO at (888) 295-8134
(For i2 system) Georgia-Paci c at (800) 890-0896 or KOLOhelp@gapac.com
(For i4 system) TeraCode at (800) 305-2310 or tototsupport@teracode.com
0GU3096E Rev. A
KEEP THIS DOCUMENT FOR REFERENCE AND MAKE AVAILABLE FOR MAINTENANCE PERSONNEL.
ECOPOWER Exposed Flush Valve
IoT Communication Card Installation Manual
Backup
Top Cover
Battery
INSTALLATION PROCEDURE
INCLUDED PARTS
Hex Wrench
and Screws
IoT Communication Card
Flush Valve
THP3395 (for i2 system)
THP3566 (for i4 system)
Installation Manual
Make sure there is enough space for the IoT communication card
to attach on the ush valve without interference. A minimum of
13/16" (20mm) clearance between the back of the ush valve and
the wall is required.
Do not drop the IoT communication card! Handle with care!
LED Light
IoT Card (for i2)
QR Code
Sticker
AA Batteries x4
(for i4 system)
BEFORE INSTALLATION
Battery Tab
QR Code Sticker
NOTE:
"CLICK" sound.
T O P
IoT Wire
Harness
IoT Communication Card
Installation Manual
(Refers to this document)
IoT Card
Min 13/16"
(20mm)
LED Light
Battery
Cover
AA Batteries
x4
IoT Card (for i4)

Advertisement

loading
Need help?

Need help?

Do you have a question about the ECOPOWER TET1UBi CP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Toto ECOPOWER TET1UBi CP Series

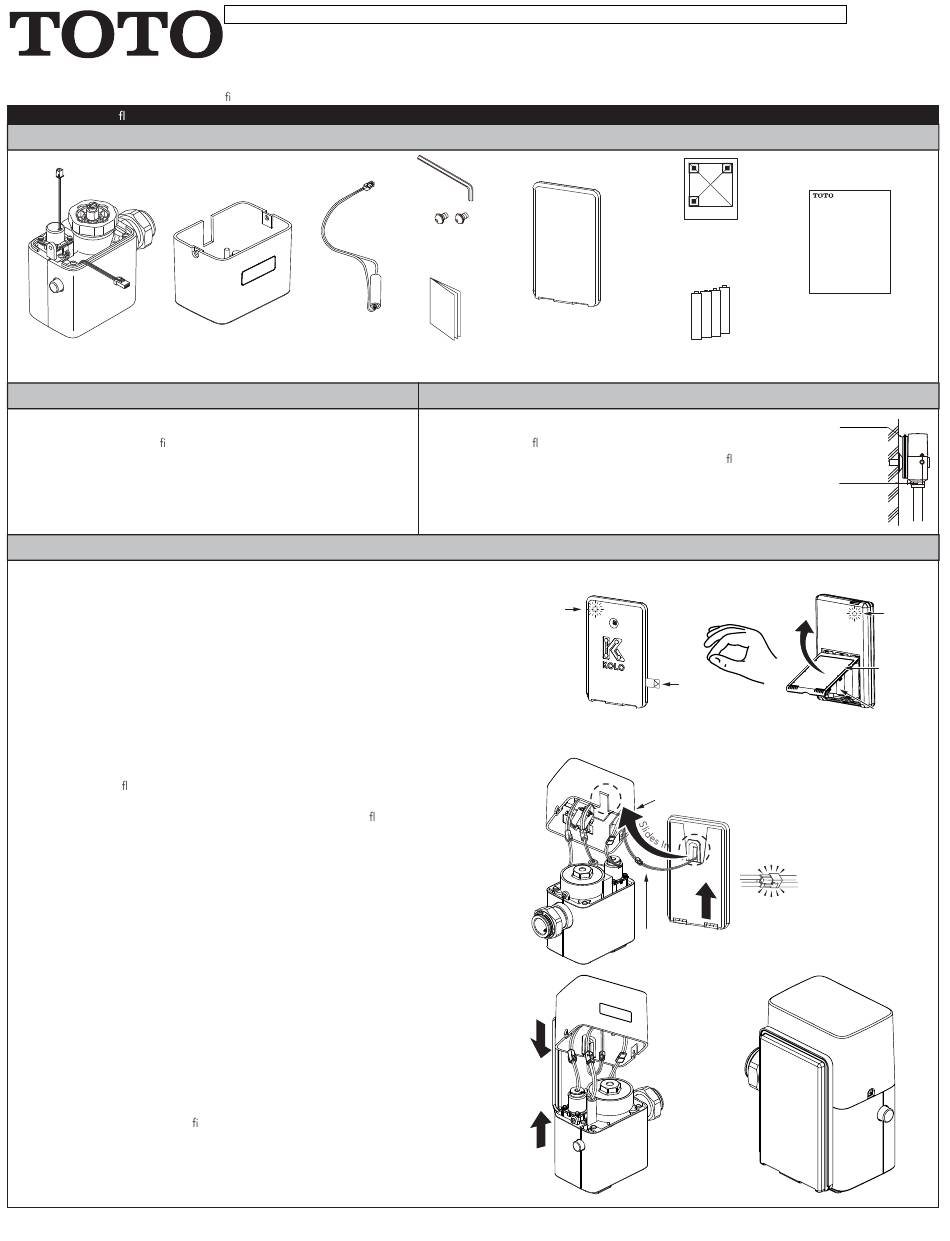

  • Page 1 KEEP THIS DOCUMENT FOR REFERENCE AND MAKE AVAILABLE FOR MAINTENANCE PERSONNEL. ECOPOWER Exposed Flush Valve IoT Communication Card Installation Manual TET1UBi*#CP/TET1LBi*#CP/TET1GBi*#CP/TET6UBi*#CP/TET6LBi*#CP/TET6GBi*#CP/TEU1UAi*#CP/TEU1LAi*#CP/TEU1GAi*#CP * indicates '2' for TOTO/Georgia-Paci c IoT system, '4' for TOTO/TeraCode IoT system NOTE: Install the ush valve according to the Flush Valve Installation Manual. INCLUDED PARTS QR Code...
