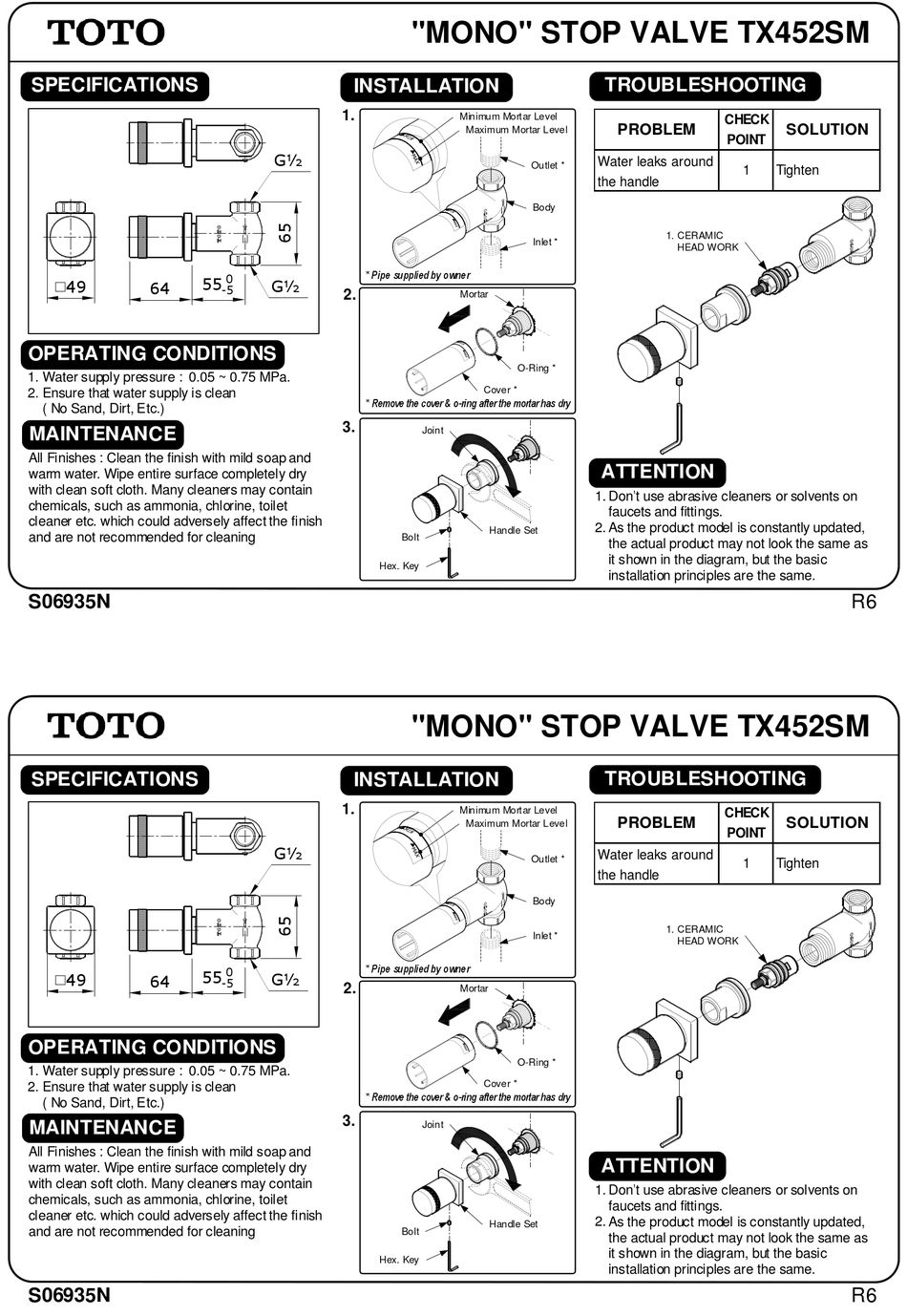

Toto MONO TX452SM Manual

SPECIFICATIONS
49
o
64
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.)
MAINTENANCE
All Finishes : Clean the finish with mild soap and
warm water. Wipe entire surface completely dry
with clean soft cloth. Many cleaners may contain
chemicals, such as ammonia, chlorine, toilet
cleaner etc. which could adversely affect the finish
and are not recommended for cleaning
S06935N
SPECIFICATIONS
o 49
64
OPERATING CONDITIONS
1. Water supply pressure : 0.05 ~ 0.75 MPa.
2. Ensure that water supply is clean
( No Sand, Dirt, Etc.)
MAINTENANCE
All Finishes : Clean the finish with mild soap and
warm water. Wipe entire surface completely dry
with clean soft cloth. Many cleaners may contain
chemicals, such as ammonia, chlorine, toilet
cleaner etc. which could adversely affect the finish
and are not recommended for cleaning
S06935N
INSTALLATION
1.
G½
* Pipe supplied by owner
0
55
G½
-5
2.
* Remove the cover & o-ring after the mortar has dry
3.
INSTALLATION
1.
G½
* Pipe supplied by owner
0
55
G½
-5
2.
* Remove the cover & o-ring after the mortar has dry
3.
"MONO" STOP VALVE TX452SM
Minimum Mortar Level
Maximum Mortar Level
Outlet *
Body
Inlet *
Mortar
O-Ring *
Cover *
Joint
Handle Set
Bolt
Hex. Key
"MONO" STOP VALVE TX452SM
Minimum Mortar Level
Maximum Mortar Level
Outlet *
Body
Inlet *
Mortar
O-Ring *
Cover *
Joint
Handle Set
Bolt
Hex. Key
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Water leaks around
1
the handle
1. CERAMIC
HEAD WORK
ATTENTION
1. Don t use abrasive cleaners or solvents on
faucets and fittings.
2. As the product model is constantly updated,
the actual product may not look the same as
it shown in the diagram, but the basic
installation principles are the same.
TROUBLESHOOTING
CHECK
PROBLEM
POINT
Water leaks around
1
the handle
1. CERAMIC
HEAD WORK
ATTENTION
1. Don t use abrasive cleaners or solvents on
faucets and fittings.
2. As the product model is constantly updated,
the actual product may not look the same as
it shown in the diagram, but the basic
installation principles are the same.
SOLUTION
Tighten
R6
SOLUTION
Tighten
R6
