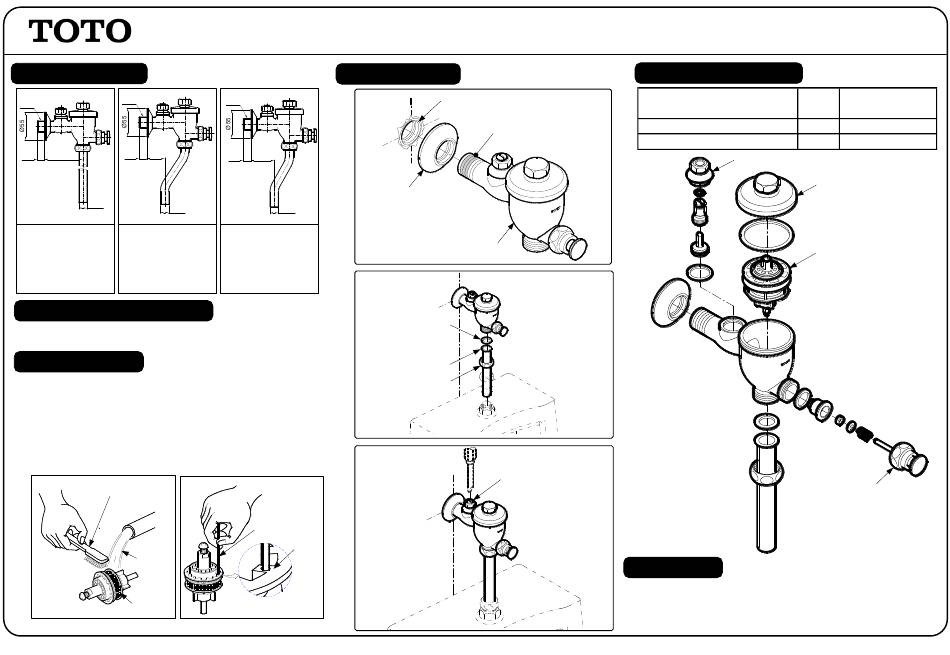

Toto T60 Installation

SPECIFICATIONS

G½
G½
14 35
14 75
Ø16
Ø16
T60P T60RN

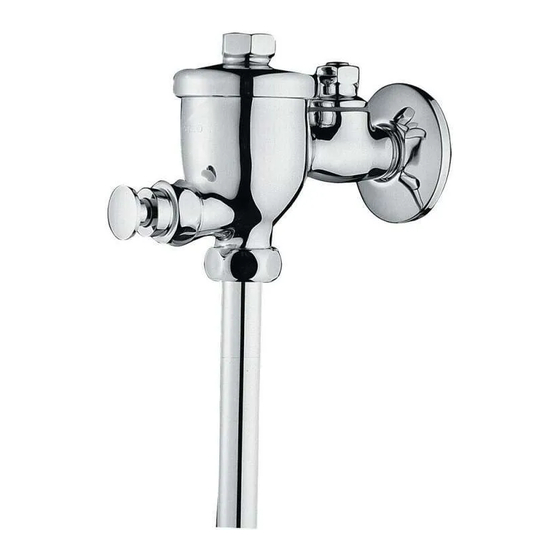

Urinal Flush Valve Urinal Flush Valve
(Straight Pipe) (Bended Pipe)
For U57, U57M For U104

OPERATING CONDITIONS

1. Water supply pressure : 0.07 ~ 0.75 MPa.
2. Ensure that water supply is clean ( No Sand, Dirt, Etc.)

MAINTENANCE

1. All Finishes : Clean the finish with mild soap and warm
water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as
ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning
2. Clean the Piston valve periodically with soft brush and
small wire.
A. STRAINER B. PISTON VALVE HOLE
Soft Brush
Water
Strainer
S06595Z

INSTALLATION

1
G½
14 45
Cover
Ø16
T60S
Urinal Flush Valve
(Bended Pipe)
For U370
2
3
Open the valve
Small Wire
Hole
Water Supply
Use Seal Tape
(Not Include)
Body
Packing
Pipe
Nut
Valve
URINAL FLUSH VALVE T60

TROUBLESHOOTING

CHECK
PROBLEM
POINT
Water continue running
2, 3, 4 Tighten
Water leaks around the body
3. CAP NUT
ATTENTION
1. Don t use abrasive cleaners or solvents on faucets and fittings.
2. As the product model is constantly updated, the actual product
may not look the same as it shown in the diagram, but the
basic installation principles are the same.
SOLUTION
1 Remove and clean
2. COVER
1. PISTON VALVE
4. CAP NUT
R6
