Fluke 1770 Series Instructions Manual

17xx Clamp Adapter
Introduction

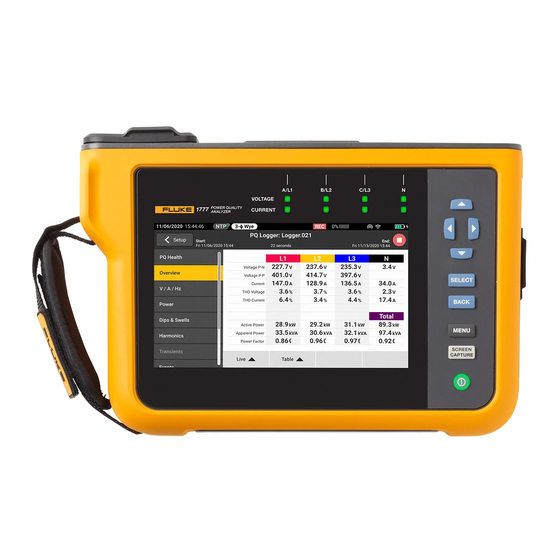

The 17xx Clamp Adapter is an accessory for the 17xx-series
of Power Quality Analyzers. Use the adapter to connect the
current clamp with the BNC connector to the 17xx Analyzer.
This adapter is ready-to-use for all clamps with a ratio of
1 mV/A. Select the adapter version depending on the voltage
output of the clamp:
Maximum 1 V: Supports clamps with a range from

0.2 A RMS to 1000 A RMS or up to ±1500 A DC
Maximum 2.8 V: Supports clamps with a range from

4 A RMS to 2800 A RMS or up to ±4000 A DC
See Supported Clamp Models
configuration on the 17xx Analyzer and a clamp with a ratio
other than 1 mV/A.
Connector to 17xx Analyzer

Label with maximum clamp output voltage

BNC connector to Clamp cable

PN 5382413 (English)
10/2022
©2022 Fluke Corporation. All rights reserved. Specifications are
subject to change without notice. All Product names are
trademarks of their respective companies.
BNC Adapter for Clamps
for the required measurement
1
2
Instructions
3
