504
FARNELL
TRIPLE
OUTPUT POWER
SUPPLY
EXTERNAL DVN
SNGLE OUTPUT46V 4A
VOLTAGE ADJUST
Farnel!
EV OUTPUT

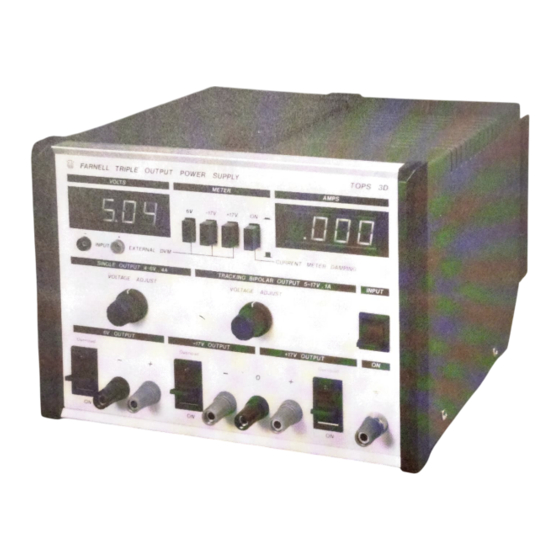

iripie oufast bench power supply, TOPS 3D
6V
METER
VOLTAGE A0is
-17V OUTPUT
3RACKING
BIPOLAR OUTPUT
5-17V
IA
AMPS
.000
CRRENT
SE
TER
DAMPIN
417V OUTPUT
Three independent output ON switches
Resolution of ImA on ammeter
TOPS 30
Three outputs: 4-6V, 4A and -5 to -17V and +5 to +17V at 1A (bipolar tracking)
Resolution of 10mV on voltmeter
Large, bright LED annunciation of voltage and current on any output
NPUT
Switch selectable damping on ammeter to even out rapidly changing currents
Preset current limit on all outputs
10 turn potentiometer on +17V output. Single control makes setting easier.
Overvoltage crowbar on 4-6V output
Publication PS30
Measure external voltages up to 39.99V. Isolated from power supply output up to 200V
d.c. or a.c.
LED indication of overload condition on each of three outputs
Mains supply fuse and three output fuses all accessible on rear panel
Designed to meet IEC348 /BS4743 safety requirements
