TVC-S-32LS HT
TVC-S-32LS HT

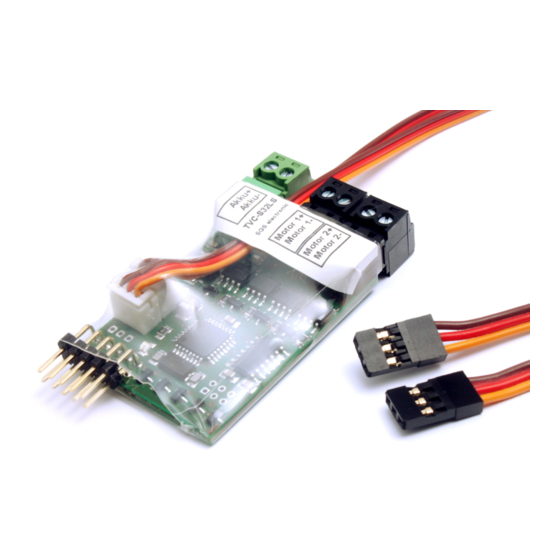

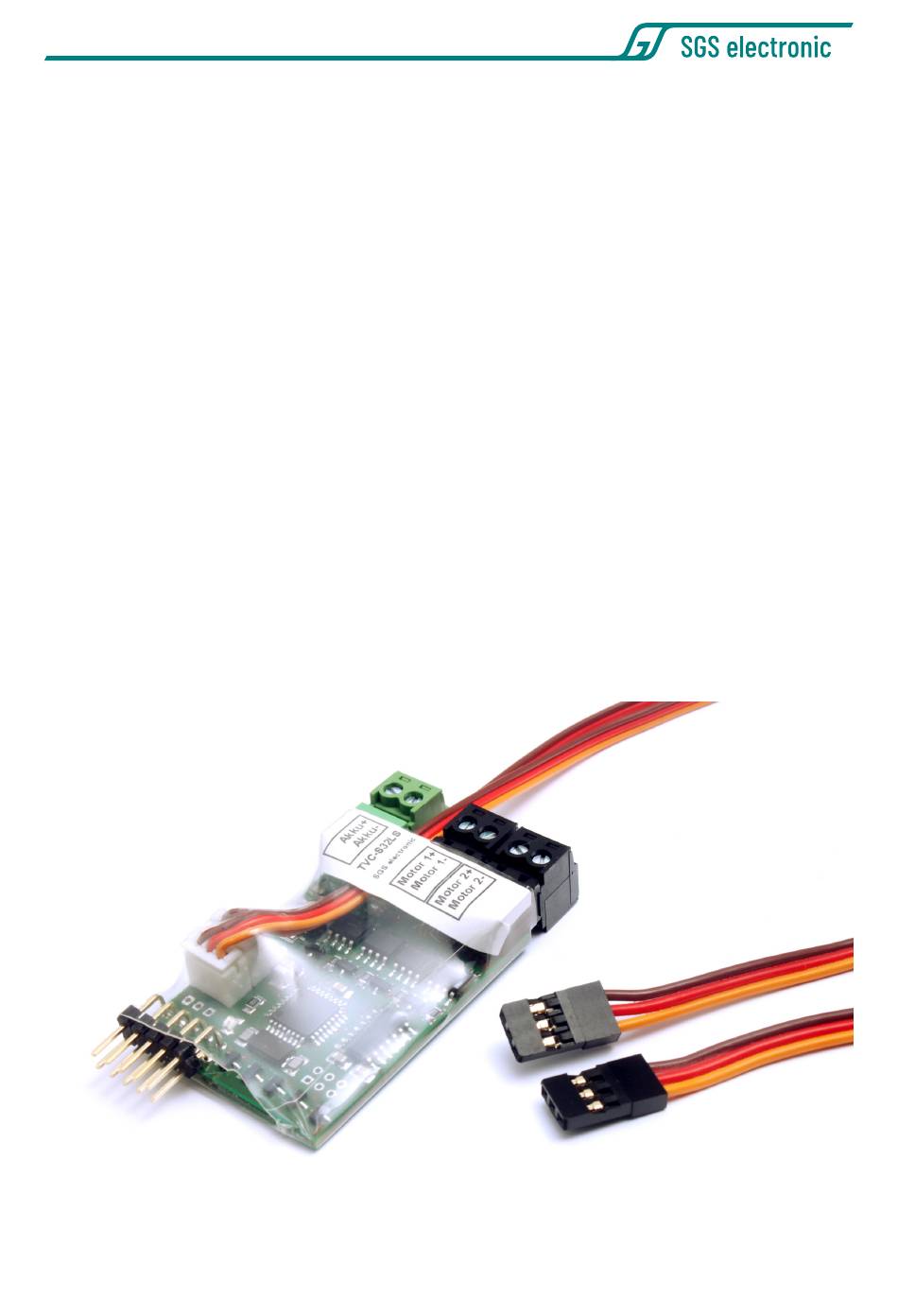

3A dual speed controller with light control for RC halftracks
The controller contains all components for controlling two DC motors in
a halftrack vehicle. The mixer is designed for half-track vehicles, i.e. up
to the full steering deflection the inside track slows to 50% of the outside
track speed.
The controller is equipped with BEC and five switch outputs for flasher left
and right, brake- and reverse light that are controlled according to the
drive manoeuvres.
1
© SGS electronic 2006-2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC-S-32LS HT and is the answer not in the manual?

Questions and answers

Related Manuals for SGS electronic TVC-S-32LS HT

Summary of Contents for SGS electronic TVC-S-32LS HT

  • Page 1 50% of the outside track speed. The controller is equipped with BEC and five switch outputs for flasher left and right, brake- and reverse light that are controlled according to the drive manoeuvres. © SGS electronic 2006-2024...

  • Page 2: Note

    Always switch off power when working on the wiring. Especial take care when connecting more than one receiver energy source. Prevent the device from getting wet. Check loads before connecting them to the modul at a current limited, or fuse protected source. © SGS electronic 2006-2024...

  • Page 3: Table Of Contents

    7.5 Document date ......17 7.6 Documentation ......17 © SGS electronic 2006-2024...
  • Page 4 Servo channel assignment ..... . . Removed and insulated + supply cable in the servo plug . . . List of Tables Abbrevation for the manipulators in the transmitter housing 14 © SGS electronic 2006-2024...

  • Page 5: Functional Description

    1Hz. The automatic turn signal is only active in the driving mode. The hazard warning light can be switched on or off by the light mode 2. © SGS electronic 2006-2024...

  • Page 6: Brake Light

    TVC-S-32LS HT 2.2.3 Brake light The brake light turns on automatically when the vehicle is decelerating. The more deceleration, the longer the brake light is on. If acceleration is resumed, the brake light switches off immediately. © SGS electronic 2006-2024...

  • Page 7: Installation

    12V nominal voltage. When connecting LEDs, series resistors are required. Since the minus is switched, you can lead the plus as a common connection to lamp groups. © SGS electronic 2006-2024...

  • Page 8: Connecting The Servo Cables

    The steering servo for controlling the front wheels can be connected in parallel to the steering channel with a Y-cable. Or you can operate it via another RC channel. You can then determine the differential effect yourself. © SGS electronic 2006-2024...

  • Page 9: Servo Channel Assignment

    Figure 5: Removed and insulated + supply cable in the servo plug Therefore, always ensure that there is only one source for supplying the receiver. Disconnect the BEC supply for all other controllers by pulling the © SGS electronic 2006-2024...
  • Page 10 TVC-S-32LS HT red + wire out of the servo connector. © SGS electronic 2006-2024...

  • Page 11: Commissioning

    Now give throttle and at the same time punch in the steering. The motor in the chain inside the curve must slow down. If it does not, © SGS electronic 2006-2024...
  • Page 12 TVC-S-32LS HT change the two motor connection plugs. © SGS electronic 2006-2024...

  • Page 13: Glossary Of Terms

    Scalebus The Scalebus is a development of SGS electronic to connect con- trollers and modules to compose solutions for complex RC models.
  • Page 14 Switch Three Stage switch with three stages Switch Potentiometer linear- or rotary knob PotC Potentiometer linear- or rotary knob with a center key with Center key Table 1: Abbrevation for the manipulators in the transmitter housing © SGS electronic 2006-2024...

  • Page 15: Technische Daten

    Versorgungsspannung 5,5 bis 12V Nennstrom Lichtausgang 250mA Zulässiger BEC Strom 500mA PWM Frequenz 16kHz Typische maximale Verlustleistung 1 Watt Typischer Spannungsabfall in der Endstufe 0.5 Volt Abmessungen ohne Steckverbinder 45x33x12mm Abmessungen mit Steckverbinder 63x33x12mm Softwareversion 0c.14.A2 © SGS electronic 2006-2024...

  • Page 16: Important

    Electronic devices do not belong in household waste. © SGS electronic 2006-2024...

  • Page 17: Address

    We reserve the right to make updates, changes or additions to the infor- mation and data provided. The documentation that accompanies your product applies. Please note that documents obtained later via download may not corre- spond to the status of your module. © SGS electronic 2006-2024...
  • Page 18 TVC-S-32LS HT © SGS electronic 2006-2024...
  • Page 19 TVC-S-32LS HT © SGS electronic 2006-2024...
