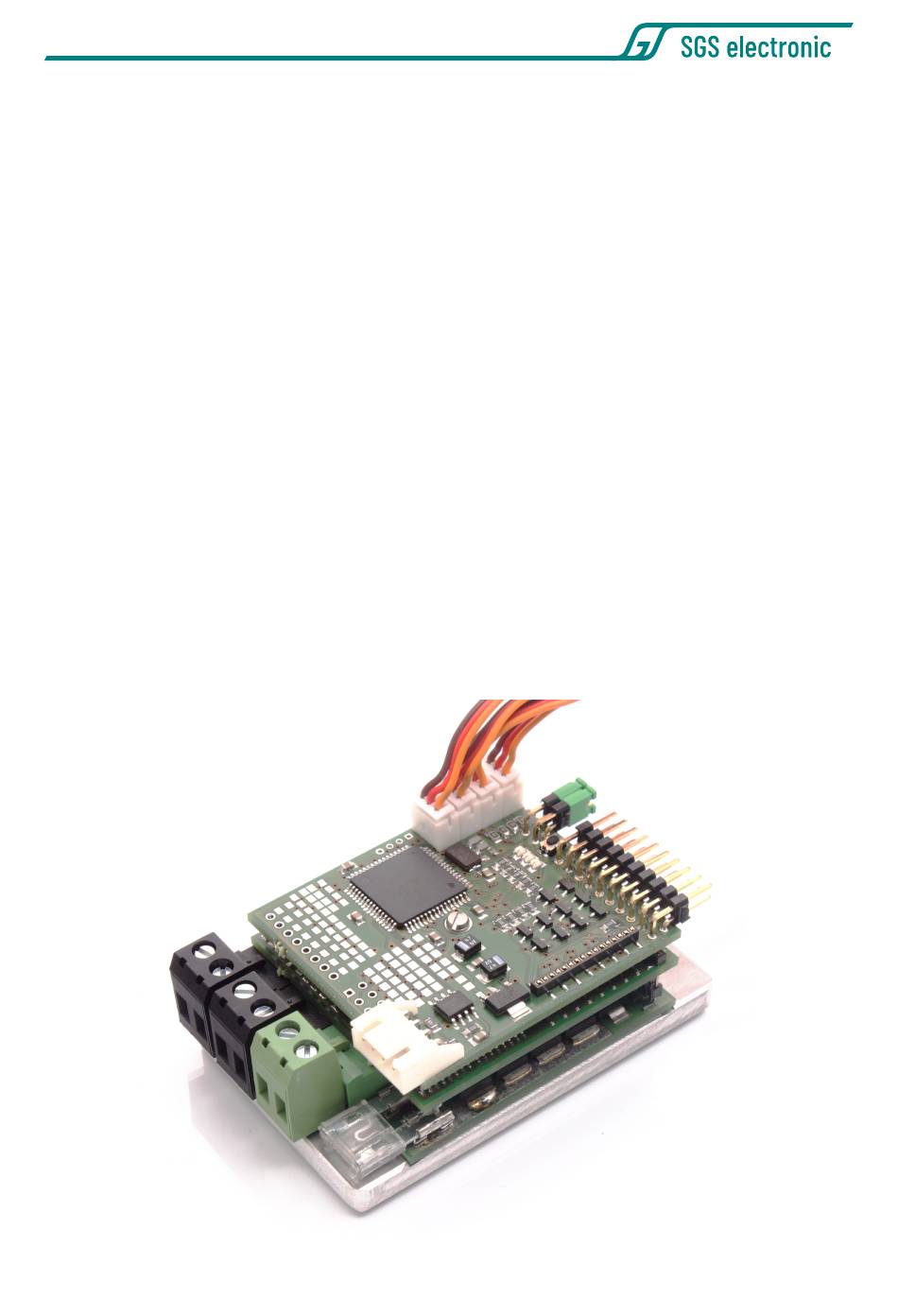

TVC-B10L
TVC-B10L
10A dual speed controller with light control for RC tracked
vehicles

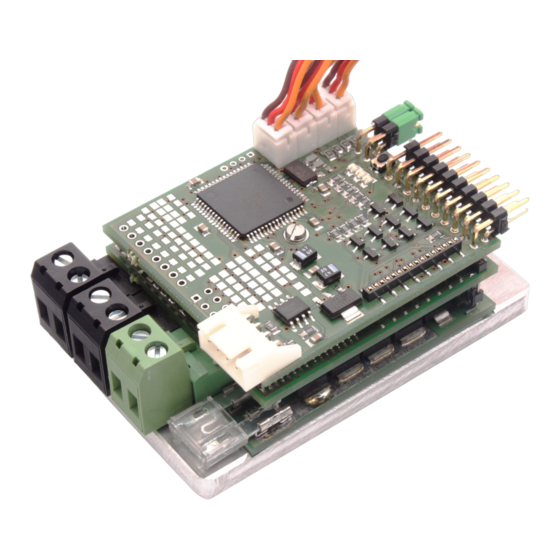

The controller contains all components for controlling two DC motors in a
tracked vehicle.
The behavior of the integrated mixer can be set for different vehicle types.
The controller can thus be set for full tracks, half tracks and wheeled ve-
hicles with differential drive. In addition, there are variants for historical
tracked vehicles without tableturn as well as the possibility of inertia simu-
lation.
The controller is equipped with BEC and has an EMK brake, which is released
in the middle position of the throttle and steering stick. The braking effect
can be set either via an RC channel, or fixed.
1
© SGS electronic 2006-2023

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC-B10L and is the answer not in the manual?

Questions and answers

Related Manuals for SGS electronic TVC-B10L

Summary of Contents for SGS electronic TVC-B10L

  • Page 1 The controller is equipped with BEC and has an EMK brake, which is released in the middle position of the throttle and steering stick. The braking effect can be set either via an RC channel, or fixed. © SGS electronic 2006-2023...

  • Page 2: Note

    Always switch off power when working on the wiring. Especial take care when connecting more than one receiver energy source. Prevent the device from getting wet. Check loads before connecting them to the modul at a current limited, or fuse protected source. © SGS electronic 2006-2023...

  • Page 3: Table Of Contents

    5.4 Error states ....... . 17 © SGS electronic 2006-2023...
  • Page 4 Error codes ....... . 17 list of optional mixing functions available ... . . 19 Abbrevation for the manipulators in the transmitter housing 21 © SGS electronic 2006-2023...

  • Page 5: Introduction

    MOSFET push-pull output stages with integrated charge pump. Under normal ambient conditions, a continuous current of 10A is achieved. The controller operates with a PWM frequency of 16kHz. reicht. Der Regler arbeitet mit einer PWM-Frequenz von 16kHz. © SGS electronic 2006-2023...

  • Page 6: Scope Of Delivery

    TVC-B10L 2.2 Scope of delivery The controller is supplied with the connectors for the motor connection and the battery connection. © SGS electronic 2006-2023...

  • Page 7: Functional Description

    3.1.4 channel 4 - EMF brake This channel can be used to set the braking effect of the holding brake. If this channel is not connected, the brake function can be permanently set on the controller. © SGS electronic 2006-2023...

  • Page 8: Function Of Light Mode Switching

    In the different light modes, the lamp outputs are switched as shown in the table. By pressing the key for a long time (approx. 2s), ”state 1” is always selected. After switching on, the model is in light mode ”state 1”. © SGS electronic 2006-2023...

  • Page 9: Drive Dynamic Functions

    1Hz. The automatic turn signal is only active in the driving mode. The hazard warning light can be switched on or off by the light mode 2. © SGS electronic 2006-2023...

  • Page 10: Brake Light

    4.2 Connecting the motors Black, plug-in screw terminals are provided for the drive motors. One motor is connected to each screw terminal. The motors must be radio interference suppressed, as is usual in model building. © SGS electronic 2006-2023...

  • Page 11: Connecting The Servo Cables

    Since in function models often several controllers with BEC are installed, but the parallel operation is problematic under certain circumstances, the connection of the installed BEC to the receiver can be disconnected. Two green jumpers are used for this purpose. © SGS electronic 2006-2023...

  • Page 12: Do Not Forward Bec Voltage To Receiver

    If the jumpers are inserted horizontally (or are not inserted), the voltage is not passed on. In this case, another module must supply the receiver with power. Figure 4: do not forward BEC voltage Figure 5: forward BEC voltage to re- to receiver ceiver © SGS electronic 2006-2023...

  • Page 13: Anschluss Der Lichtausgänge

    For example, the FO module TVC-MF-10 can control the controller. The controller switches to scale bus mode if no servo signal is present at the two servo cables when it is switched on. Accordingly, the servo cables must © SGS electronic 2006-2023...
  • Page 14 Controller works as tower control (barrel elevation and tower rota- tion) It is of course possible to connect several controllers to the scale bus. It is also possible for two controllers to output the same information. © SGS electronic 2006-2023...

  • Page 15: Commissioning

    (connecting line from motor 1 to motor 2 and vice versa). 3. The directional control is set to neutral, but the model does not drive straight ahead: Correct with steering trim © SGS electronic 2006-2023...

  • Page 16: Emf Brake

    If you move the throttle in one direction the on phase of the yellow LED gets longer and longer, in the other direction shorter and shorter until it is completely off. The stronger the lever deflection, the faster the adjustment. © SGS electronic 2006-2023...

  • Page 17: Error States

    LED lights up. All error conditions lead to the motor being switched off. blink fault Acknowledgement / Troubleshooting code 2 times no signal from re- Check receiver and connections / elimi- ceiver nate radio interference 3 times overtemperature allow controller to cool down Table 6: Error codes © SGS electronic 2006-2023...

  • Page 18: Changing The Mixing Function

    4. For example, if the red LED flashes three times, mixer number three of the table is selected. save this, hold the sticks in position and press the button again. 5. Then release the stick. Now the mixer is selected and saved. © SGS electronic 2006-2023...

  • Page 19: List Of Optional Mixing Functions Available

    Tamiya but when cornering the turn machinery and chain does not run backwards. tanks full track simulation tracked con- superposition struction gearbox 100% machines, inertia modern simulation tanks, snow groomers Table 7: list of optional mixing functions available © SGS electronic 2006-2023...

  • Page 20: Glossary Of Terms

    Scalebus The Scalebus is a development of SGS electronic to connect con- trollers and modules to compose solutions for complex RC models.

  • Page 21: Abbrevation For The Manipulators In The Transmitter Housing

    Switch Three Stage switch with three stages Switch Potentiometer linear- or rotary knob PotC Potentiometer linear- or rotary knob with a center key with Center key Table 8: Abbrevation for the manipulators in the transmitter housing © SGS electronic 2006-2023...

  • Page 22: Technical Data

    PWM frequency 16kHz Typical maximum power dissipation 5 Watt Typical voltage drop in the output 0,15 Volt stage Rated current light outputs 0,3 Ampere per output Voltage light outputs equals supply voltage Dimens 75x47x30mm software version © SGS electronic 2006-2023...

  • Page 23: Important

    Electronic devices do not belong in household waste. © SGS electronic 2006-2023...

  • Page 24: Address

    We reserve the right to make updates, changes or additions to the infor- mation and data provided. The documentation that accompanies your product applies. Please note that documents obtained later via download may not corre- spond to the status of your module. © SGS electronic 2006-2023...
