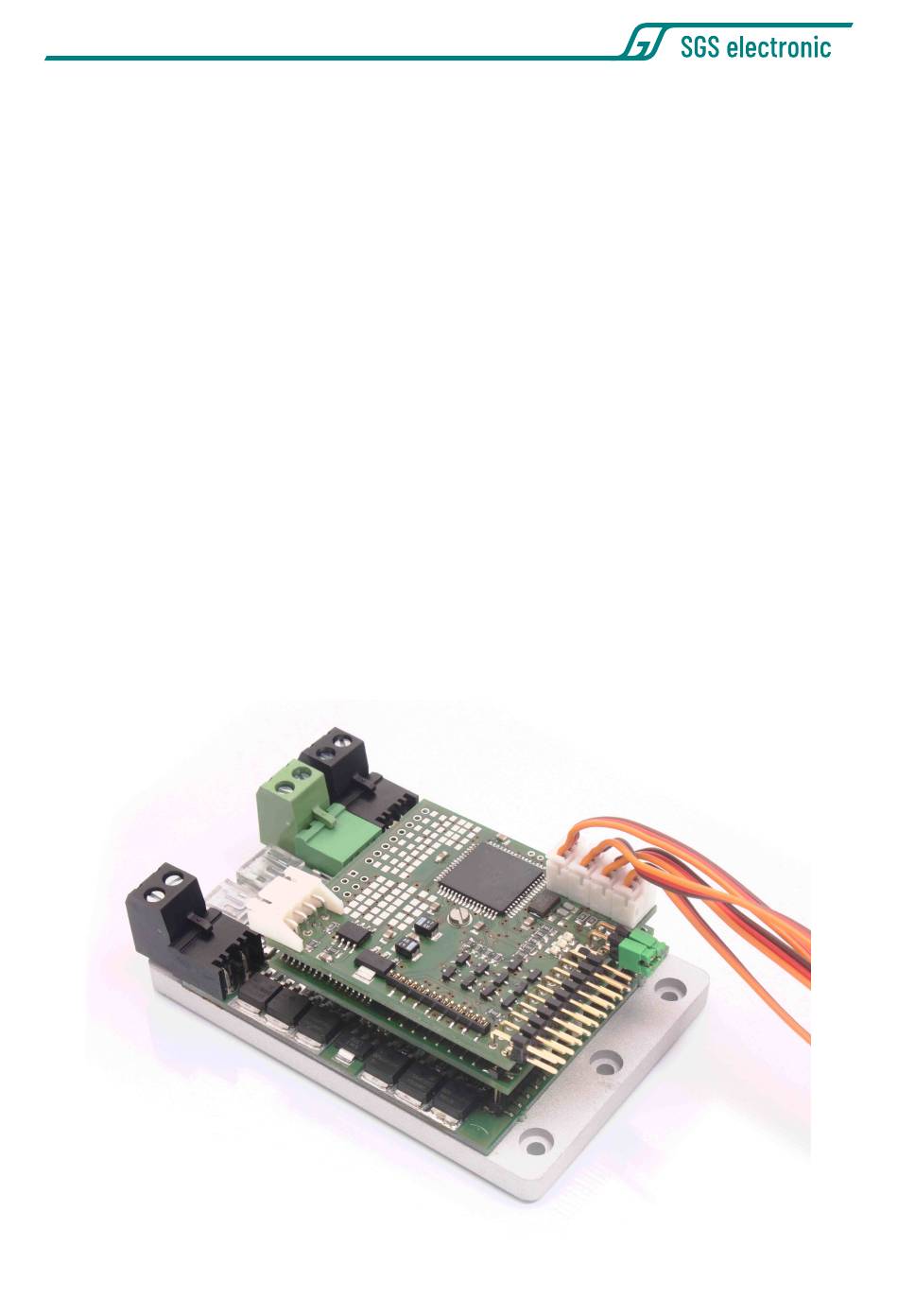

TVC-B30L
TVC-B30L

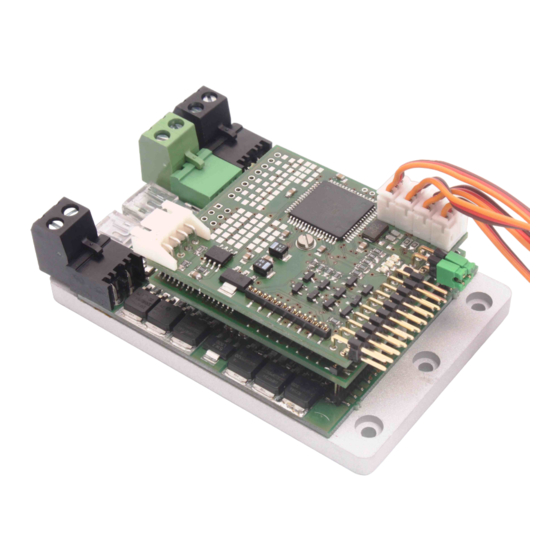

30A dual speed controller with light control for 1/10 scale and
larger RC tracked vehicles
The controller contains all components for controlling two DC motors in a
tracked vehicle.
The behavior of the integrated mixer can be set for different vehicle types.
The controller can thus be set for full tracks, half tracks and wheeled ve-
hicles with differential drive. In addition, there are variants for historical
tracked vehicles without tableturn as well as the possibility of inertia simu-
lation.
The controller is equipped with BEC and has an EMK brake, which is released
in the middle position of the throttle and steering stick. The braking effect
can be set either via an RC channel, or fixed.
1
© SGS electronic 2006-2023
Advertisement
Table of Contents
Related Manuals for SGS electronic TVC-B30L
Summary of Contents for SGS electronic TVC-B30L
- Page 1 The controller is equipped with BEC and has an EMK brake, which is released in the middle position of the throttle and steering stick. The braking effect can be set either via an RC channel, or fixed. © SGS electronic 2006-2023...
-
Page 2: Note
Always switch off power when working on the wiring. Especial take care when connecting more than one receiver energy source. Prevent the device from getting wet. Check loads before connecting them to the modul at a current limited, or fuse protected source. © SGS electronic 2006-2023... -
Page 3: Table Of Contents
6.3 EMF brake ....... . . 20 6.3.1 Setting via an RC channel of the controller ..20 © SGS electronic 2006-2023... - Page 4 Belegung der Lichtausgänge ..... 16 Error codes ....... . 21 © SGS electronic 2006-2023...
- Page 5 TVC-B30L list of optional mixing functions available ... . . 23 Abbrevation for the manipulators in the transmitter housing 25 © SGS electronic 2006-2023...
-
Page 6: Introduction
MOSFET push-pull output stages with integrated charge pump. Under normal ambient conditions, a continuous current of 30A is achieved. The controller operates with a PWM frequency of 16kHz. © SGS electronic 2006-2023... -
Page 7: Scope Of Delivery
TVC-B30L 2.2 Scope of delivery The controller is supplied with the connectors for the motor connection and the battery connection. © SGS electronic 2006-2023... -
Page 8: Functional Description
3.1.4 channel 4 - EMF brake This channel can be used to set the braking effect of the holding brake. If this channel is not connected, the brake function can be permanently set on the controller. © SGS electronic 2006-2023... -
Page 9: Function Of Light Mode Switching
In the different light modes, the lamp outputs are switched as shown in the table. By pressing the key for a long time (approx. 2s), ”state 1” is always selected. After switching on, the model is in light mode ”state 1”. © SGS electronic 2006-2023... -
Page 10: Drive Dynamic Functions
1Hz. The automatic turn signal is only active in the driving mode. The hazard warning light can be switched on or off by the light mode 2. © SGS electronic 2006-2023... -
Page 11: Brake Light
TVC-B30L 3.3.4 Brake light The brake light turns on automatically when the vehicle is decelerating. The more deceleration, the longer the brake light is on. If acceleration is resumed, the brake light switches off immediately. © SGS electronic 2006-2023... -
Page 12: Installation
In this case, the heat shrink tubing in the contact area should be removed and thermal paste should be used. Figure 1: mounting holes © SGS electronic 2006-2023... -
Page 13: Connections
Never switch the minus in RC model building, because the minus also the reference potential of the servo signals. There are two automotive fuses for the motor output stages on the circuit board. They are pluggable and can be easily replaced if necessary. © SGS electronic 2006-2023... -
Page 14: Connecting The Motors
The motors must be radio interference suppressed, as is usual in model building. 5.3 Connecting the servo cables The controller is equipped with JR servo cables. The pinout is shown in figure 4. Figure 4: pinout servo cable © SGS electronic 2006-2023... -
Page 15: Bec Jumpers
If the jumpers are inserted horizontally (or are not inserted), the voltage is not passed on. In this case, another module must supply the receiver with power. © SGS electronic 2006-2023... -
Page 16: Anschluss Der Lichtausgänge
Verbraucher für diese Spannung geeignet sein. Wird der Regler z.B. mit einem 12 Volt Akku betrieben, sollte der Verbraucher ebenfalls für 12V Nennspannung ausgelegt sein. Bei LEDs sind entsprechende Vorwider- stände vorzusehen. Das Schaltvermögen pro Kanal beträgt 300mA. © SGS electronic 2006-2023... -
Page 17: Scalebus Operation (Optional)
Not only the information for controlling the drive motors, but also the information for the auxiliary drives is sent via the scale bus. If no jumper is plugged in, the information of the drives is output. © SGS electronic 2006-2023... - Page 18 Controller works as tower control (barrel elevation and tower rota- tion) It is of course possible to connect several controllers to the scale bus. It is also possible for two controllers to output the same information. © SGS electronic 2006-2023...
-
Page 19: Commissioning
(connecting line from motor 1 to motor 2 and vice versa). 3. The directional control is set to neutral, but the model does not drive straight ahead: Correct with steering trim © SGS electronic 2006-2023... -
Page 20: Emf Brake
If you move the throttle in one direction the on phase of the yellow LED gets longer and longer, in the other direction shorter and shorter until it is completely off. The stronger the lever deflection, the faster the adjustment. © SGS electronic 2006-2023... -
Page 21: Error States
LED lights up. All error conditions lead to the motor being switched off. blink fault Acknowledgement / Troubleshooting code 2 times no signal from re- Check receiver and connections / elimi- ceiver nate radio interference 3 times overtemperature allow controller to cool down Table 6: Error codes © SGS electronic 2006-2023... -
Page 22: Changing The Mixing Function
4. For example, if the red LED flashes three times, mixer number three of the table is selected. save this, hold the sticks in position and press the button again. 5. Then release the stick. Now the mixer is selected and saved. © SGS electronic 2006-2023... - Page 23 Tamiya but when cornering the turn machinery and chain does not run backwards. tanks full track simulation tracked con- superposition struction gearbox 100% machines, inertia modern simulation tanks, snow groomers Table 7: list of optional mixing functions available © SGS electronic 2006-2023...
-
Page 24: Glossary Of Terms
Scalebus The Scalebus is a development of SGS electronic to connect con- trollers and modules to compose solutions for complex RC models. - Page 25 Switch Three Stage switch with three stages Switch Potentiometer linear- or rotary knob PotC Potentiometer linear- or rotary knob with a center key with Center key Table 8: Abbrevation for the manipulators in the transmitter housing © SGS electronic 2006-2023...
-
Page 26: Technical Data
PWM frequency 16kHz Typical maximum power dissipation 5 Watt Typical voltage drop in the output 0,15 Volt stage Rated current light outputs 0,3 Ampere per output Voltage light outputs equals supply voltage Dimens 90x60x35mm software version © SGS electronic 2006-2023... -
Page 27: Important
Electronic devices do not belong in household waste. © SGS electronic 2006-2023... -
Page 28: Address
We reserve the right to make updates, changes or additions to the infor- mation and data provided. The documentation that accompanies your product applies. Please note that documents obtained later via download may not corre- spond to the status of your module. © SGS electronic 2006-2023...
