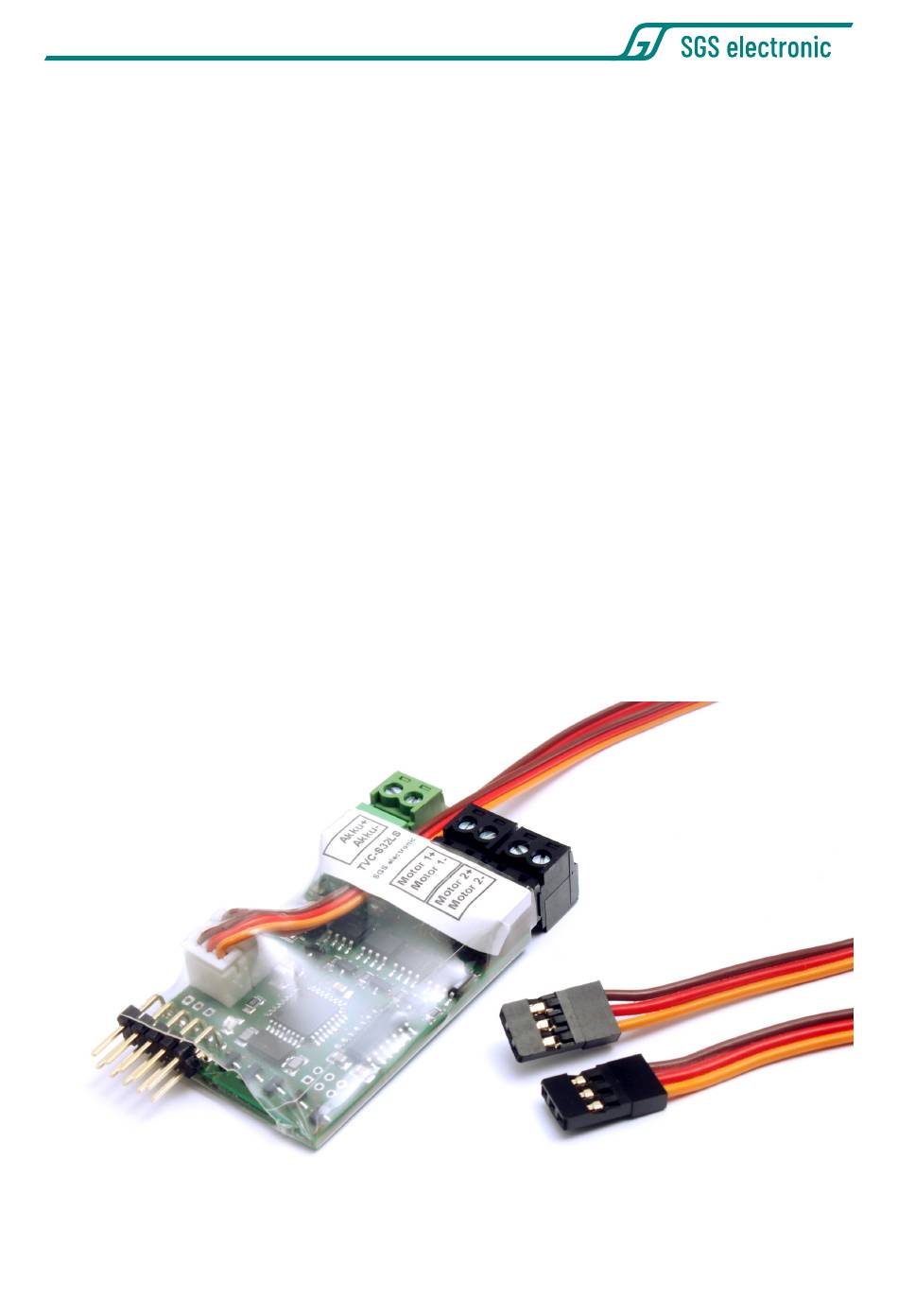

TVC-S-32LS
TVC-S-32LS

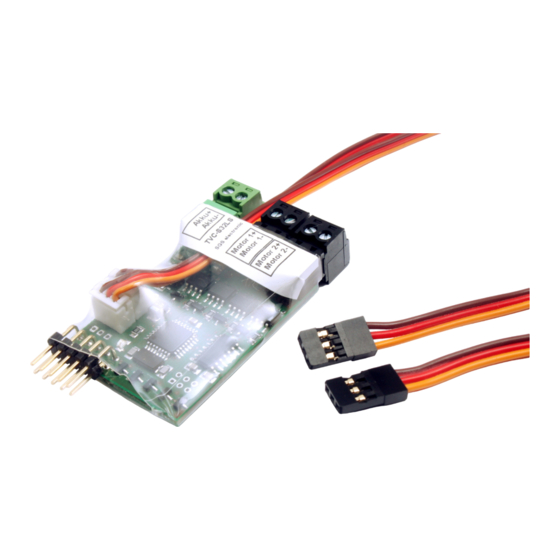

3A dual speed controller with light control for RC tracked
vehicles
The controller contains all components for controlling two DC motors in a
tracked vehicle.
The controller is equipped with BEC and five switch outputs for flasher left
and right, brake- and reverse light that are controlled according to the
drive manoeuvres.
The integrated mixer is reversing, i.e. the speed is reduced proportionally
up to half the steering deflection. The steering is then steered proportion-
ally against the direction of travel until the steering is fully deflected (table
turn).
1
© SGS electronic 2006-2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TVC-S-32LS and is the answer not in the manual?

Questions and answers

Related Manuals for SGS electronic TVC-S-32LS

Summary of Contents for SGS electronic TVC-S-32LS

  • Page 1 The integrated mixer is reversing, i.e. the speed is reduced proportionally up to half the steering deflection. The steering is then steered proportion- ally against the direction of travel until the steering is fully deflected (table turn). © SGS electronic 2006-2024...

  • Page 2: Note

    Always switch off power when working on the wiring. Especial take care when connecting more than one receiver energy source. Prevent the device from getting wet. Check loads before connecting them to the modul at a current limited, or fuse protected source. © SGS electronic 2006-2024...

  • Page 3: Table Of Contents

    7.5 Document date ......17 7.6 Documentation ......17 © SGS electronic 2006-2024...
  • Page 4 Servo channel assignment ..... . . Removed and insulated + supply cable in the servo plug . . . List of Tables Abbrevation for the manipulators in the transmitter housing 14 © SGS electronic 2006-2024...

  • Page 5: Functional Description

    1Hz. The automatic turn signal is only active in the driving mode. The hazard warning light can be switched on or off by the light mode 2. © SGS electronic 2006-2024...

  • Page 6: Brake Light

    TVC-S-32LS 2.2.3 Brake light The brake light turns on automatically when the vehicle is decelerating. The more deceleration, the longer the brake light is on. If acceleration is resumed, the brake light switches off immediately. © SGS electronic 2006-2024...

  • Page 7: Installation

    12V nominal voltage. When connecting LEDs, series resistors are required. Since the minus is switched, you can lead the plus as a common connection to lamp groups. © SGS electronic 2006-2024...

  • Page 8: Connecting The Servo Cables

    The speed input must be connected. The servo cable for the steering does not need to be plugged in. If it is not plugged, both outputs run with the same speed. © SGS electronic 2006-2024...

  • Page 9: Servo Channel Assignment

    Figure 5: Removed and insulated + supply cable in the servo plug Therefore, always ensure that there is only one source for supplying the receiver. Disconnect the BEC supply for all other controllers by pulling the © SGS electronic 2006-2024...
  • Page 10 TVC-S-32LS red + wire out of the servo connector. © SGS electronic 2006-2024...

  • Page 11: Commissioning

    2. Model moves left when steered to the right and vice versa: Change con- nections from both motors, reversing polarity. (connecting line from motor 1 to motor 2 and vice versa). 3. The directional control is set to neutral, but the model does not drive © SGS electronic 2006-2024...
  • Page 12 TVC-S-32LS straight ahead: Correct with steering trim © SGS electronic 2006-2024...

  • Page 13: Glossary Of Terms

    Scalebus The Scalebus is a development of SGS electronic to connect con- trollers and modules to compose solutions for complex RC models.
  • Page 14 Switch Three Stage switch with three stages Switch Potentiometer linear- or rotary knob PotC Potentiometer linear- or rotary knob with a center key with Center key Table 1: Abbrevation for the manipulators in the transmitter housing © SGS electronic 2006-2024...

  • Page 15: Technische Daten

    Versorgungsspannung 5,5 bis 12V Nennstrom Lichtausgang 250mA Zulässiger BEC Strom 500mA PWM Frequenz 16kHz Typische maximale Verlustleistung 1 Watt Typischer Spannungsabfall in der Endstufe 0.5 Volt Abmessungen ohne Steckverbinder 45x33x12mm Abmessungen mit Steckverbinder 63x33x12mm Softwareversion 0c.14.A2 © SGS electronic 2006-2024...

  • Page 16: Important

    Electronic devices do not belong in household waste. © SGS electronic 2006-2024...

  • Page 17: Address

    We reserve the right to make updates, changes or additions to the infor- mation and data provided. The documentation that accompanies your product applies. Please note that documents obtained later via download may not corre- spond to the status of your module. © SGS electronic 2006-2024...
  • Page 18 TVC-S-32LS © SGS electronic 2006-2024...
  • Page 19 TVC-S-32LS © SGS electronic 2006-2024...
  • Page 20 TVC-S-32LS © SGS electronic 2006-2024...
