CyberData 011590 Installation Quick Reference

Tap Setting and Voltage Selection
To connect constant voltage line inputs:
- Use blue and black wire for 70V.
- Use white and black wire for 25V.
To connect 8 Ohm low impedance, use white(or)blue and black wire.
Contacting CyberData
Corporate Headquarters
CyberData Corporation
Sales: 831-373-2601 ext. 334
3 Justin Court
Support: 831-373-2601 ext. 333
Monterey, CA 93940, USA
Support Website:
RMA Department Contact and Status:
Phone: 831-373-2601
Warranty Information:
Fax: 831-373-4193
https://www.cyberdata.net/
© 2023, CyberData Corporation, ALL RIGHTS RESERVED
https://support.cyberdata.net/
https://support.cyberdata.net/
https://support.cyberdata.net/
932026B Quick Reference

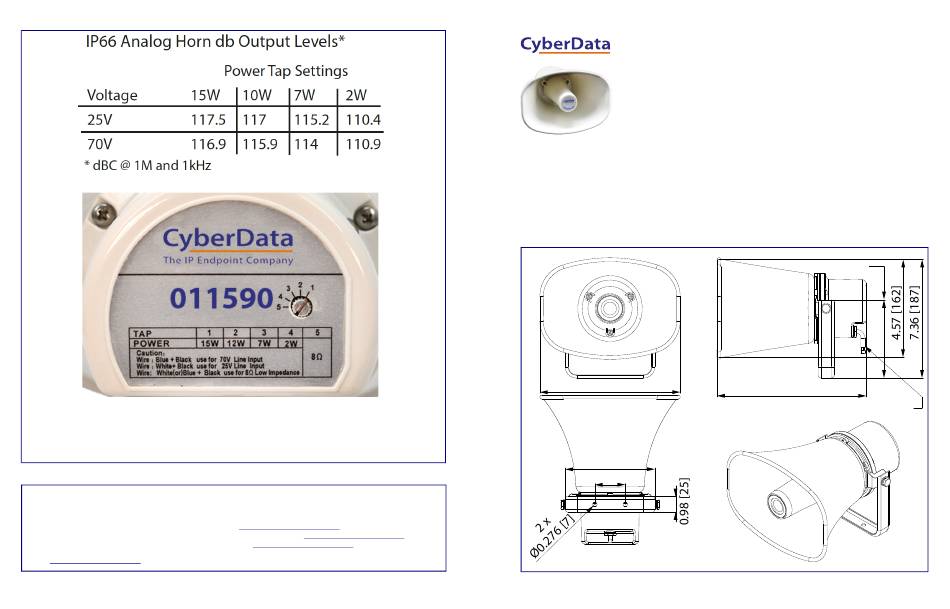

Installation Quick Reference
IP66 Analog Horn
The IP Endpoint Company
25V/70V/8 Ohm
011590
Getting Started
• Please note that this product ships in the 70V power setting with the 15 W tap selected.
• WARNING: Do not use the 8 Ohm setting in a constant voltage application.
• WARNING: This product must be set to the appropriate voltage depending on the settings of the amplifier. Using a
speaker set to 25V in a 70V system will cause damage.
• WARNING: This enclosure is not rated for any AC voltages!
Dimensions
8.82 [224]
4.92 [125]
1.89 [48]
Dimensions are in Inches [Millimeters]
Quick Reference
4.92 [125]
9.33 [237]
Open End Cable Length: 39.4 [1000]
932026B © 2023, CyberData Corporation, ALL RIGHTS RESERVED
