CyberData 011457 Operation Manual

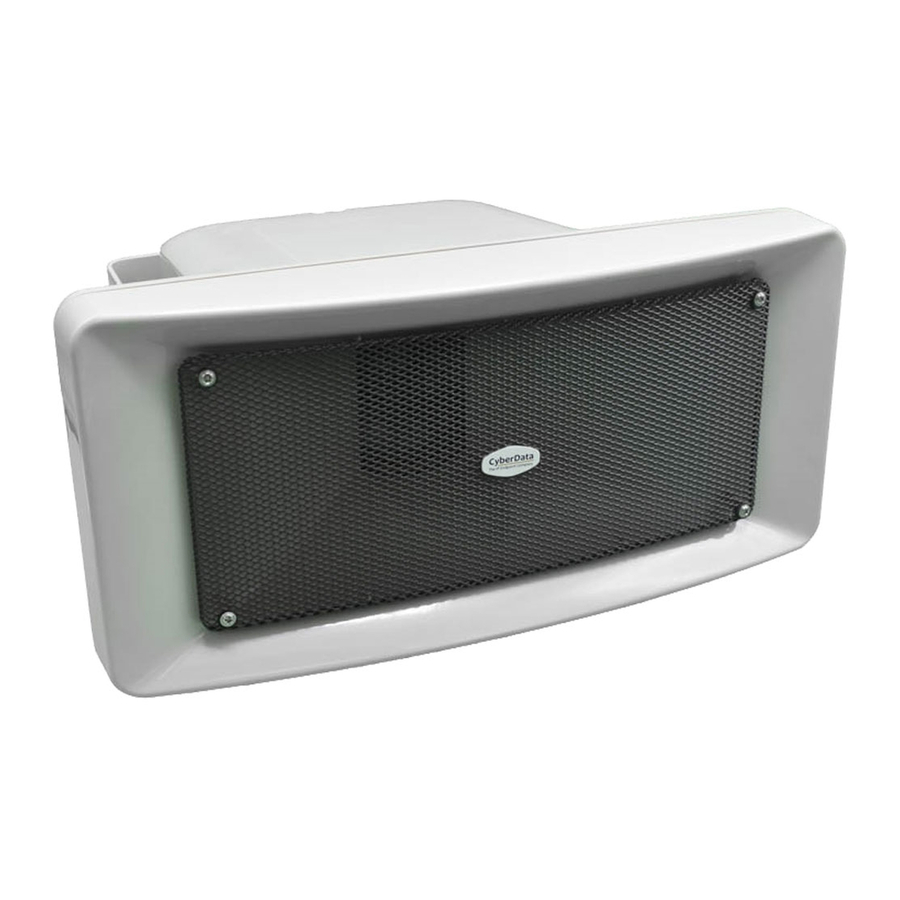

Sip ip66 indoor/outdoor horn
Hide thumbs Also See for 011457:
Table of Contents

Advertisement

Quick Links

Download this manual

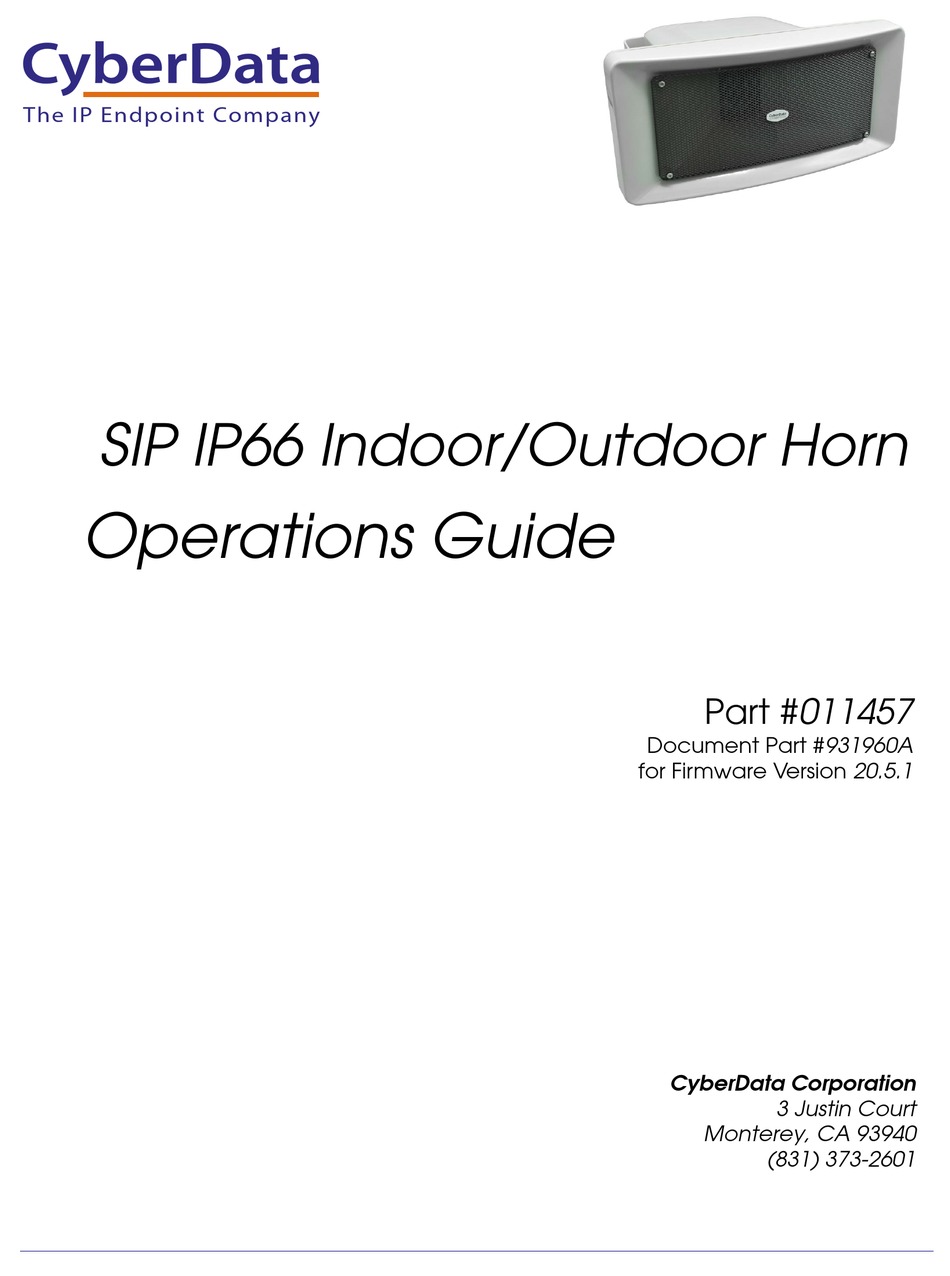

The IP Endpoint Company
SIP IP66 Indoor/Outdoor Horn
Operations Guide
Part #011457
Document Part #931960A
for Firmware Version 20.5.1
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 011457 and is the answer not in the manual?

Questions and answers

Related Manuals for CyberData 011457

Summary of Contents for CyberData 011457

  • Page 1 The IP Endpoint Company  SIP IP66 Indoor/Outdoor Horn  Operations Guide Part #011457 Document Part #931960A for Firmware Version 20.5.1 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Figure 2-28, "Autoprovisioning Page" • Updates Table 2-15, "Autoprovisioning Page Parameters" • Updates Figure 2-30, "Firmware Page" • Updates Table 2-17, "Firmware Page Parameters" • Updates Figure 2-31, "Upload Button" • Updates Figure 2-32, "Home Page" Operations Guide 931960A CyberData Corporation...
  • Page 4 Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT Warning The PoE connector is intended for intra-building connections only and does not route to the outside plant. GENERAL ALERT Operations Guide 931960A CyberData Corporation...
  • Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. Operations Guide 931960A CyberData Corporation...
  • Page 6 Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol SRTP Secure Real Time Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol Operations Guide 931960A CyberData Corporation...

  • Page 7: Table Of Contents

    Appendix A Mounting the SIP IP66 Indoor/Outdoor Horn A.1 Dimensions ..........................77 Appendix B Troubleshooting/Technical Support B.1 Frequently Asked Questions (FAQ) ..................78 B.2 Documentation ........................78 B.3 Contact Information ........................79 B.4 Warranty and RMA Information ....................79 Index Operations Guide 931960A CyberData Corporation...

  • Page 8: Chapter 1 Product Overview

    To identify the SIP IP66 Indoor/Outdoor Horn (PoE), look for a model number label similar to the one shown in Figure 1-1. Confirm the following: • The model number on the label should be 011457. Figure 1-1. Model Number Label www.cyberdata.net SIP IP66 Indoor/Outdoor Horn 011457* / 021547*...

  • Page 9: Typical System Installation

    Figure 1-2 illustrates how the SIP IP66 Indoor/Outdoor Horn is normally installed as part of a public address system. Figure 1-2. Typical Installation Compliant Non-PoE Ethernet Switch SIP IP66 Outdoor Horn VoIP Phone IP-PBX Server Operations Guide 931960A CyberData Corporation...

  • Page 10: Product Features

    • HTTPS or HTTP web-based configuration. HTTPS is enabled by default • 802.11q VLAN tagging • Configurable event generation for device health and status monitoring • Support for Cisco SRST resiliency • HTTP Command Interface Operations Guide 931960A CyberData Corporation...

  • Page 11: Supported Protocols

    PCMU (G.711 mu-law) PCMA (G.711 A-law) G.722 G.729 Packet Time 20 ms 1.5 Supported SIP Servers The following link contains information on how to configure the SIP IP66 Indoor/Outdoor Horn for the supported SIP servers: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Operations Guide 931960A CyberData Corporation...

  • Page 12: Specifications

    15 Class A; Industry Canada ICES-3 Class A; IEEE 802.3 Compliant; TAA Compliant Warranty 2 Years Limited Part Number 011457 a. Dimensions are measured from the perspective of the product being upright with the front of the product facing you. Operations Guide 931960A...

  • Page 13: Typical Coverage

    The horn is designed for use with PoE 802.3at power. When the device is allocated this power, it can cover up to 7,500 square feet depending on ambient noise levels. 1.8 Intelligibility Outdoor Field Test Figure 1-3. Intelligibility Outdoor Field Test Operations Guide 931960A CyberData Corporation...

  • Page 14: Compliance

    1.9.3 Industry Canada (IC) Compliance Statement Operation is subject to the following two conditions: 1.This device may not cause interference, and 2.This device must accept any interference, including interference that may cause undesired operations of the device. ICES-3 Class A Operations Guide 931960A CyberData Corporation...

  • Page 15: Chapter 2 Installing The Sip Ip66 Indoor/Outdoor Horn

    2.1 Parts List Table 2-1 illustrates the parts for each SIP IP66 Indoor/Outdoor Horn and includes a kit for mounting. Table 2-1. Parts List Quantity Part Name Illustration SIP IP66 Indoor/Outdoor Horn Assembly Installation Quick Reference Guide Operations Guide 931960A CyberData Corporation...

  • Page 16: Sip Ip66 Indoor/Outdoor Horn Setup

    2.2 SIP IP66 Indoor/Outdoor Horn Setup Set up and configure each SIP IP66 Indoor/Outdoor Horn before you mount it. CyberData delivers each SIP IP66 Indoor/Outdoor Horn with the factory default values indicated in Table 2-2 Table 2-2. Factory Default Settings...

  • Page 17: Sip Ip66 Indoor/Outdoor Horn System Installation And Connection Options

    The following figures show the connection options for the SIP IP66 Indoor/Outdoor Horn. Figure 2-1. SIP IP66 Indoor/Outdoor Horn Connections CLASS II WIRING Red Wire to Circuit 13 Black Wire to Circuit 14 Pin #1 Operations Guide 931960A CyberData Corporation...

  • Page 18: Install The Network Cable Through Weatherproof Cable Gland

    The rubber gasket must be  Critical areas for the installation to preserve the IP66 rating of the speaker. oriented and installed correctly Gasket must be preserved and all threaded components must be tightened. if these bolts are removed. Operations Guide 931960A CyberData Corporation...

  • Page 19: Power Test And Status Led

    Installing the SIP IP66 Indoor/Outdoor Horn Power Test and Status LED 2.2.3 Power Test and Status LED 1. Plug in the CyberData device and monitor the Status LED activity on the bottom side of the horn during the initialization process. See Figure 2-3.

  • Page 20: Rtfm Switch

    IP66 sealed with the gasket washer. Remove the screw to gain access to the RTFM switch (Figure 2-5). Figure 2-4. Remove the screw to gain access to the RTFM switch RTFM Cover Screw Operations Guide 931960A CyberData Corporation...
  • Page 21 Installing the SIP IP66 Indoor/Outdoor Horn RTFM Switch 4. Use a paper clip to feed through the hole to press the RTFM switch. See Figure 2-5. Figure 2-5. RTFM Switch Paper Clip 1.0" [25 mm] Dimensions are in Inch [Millimeters] Operations Guide 931960A CyberData Corporation...
  • Page 22 1. Use a bent paperclip or a similar object to press and hold the RTFM switch until you hear the device announce the words, “restoring defaults” and “rebooting”. 2. Release the RTFM switch. The device will be restored to the factory default settings. Operations Guide 931960A CyberData Corporation...

  • Page 23: Factory Default Settings

    Table 2-3. Factory Default Settings Parameter Factory Default Setting IP Addressing DHCP IP Address 192.168.1.23 Web Access Username admin Web Access Password admin Subnet Mask 255.255.255.0 Default Gateway 192.168.1.1 a. Default if there is not a DHCP server present. Operations Guide 931960A CyberData Corporation...

  • Page 24: Sip Ip66 Indoor/Outdoor Horn Web

    Link to go to the SIP page. Link to the Multicast page. Link to the SSL page. Link to the Audiofiles page. Link to the Events page. Link to the Autoprovisioning page. Link to the Firmware page. Operations Guide 931960A CyberData Corporation...

  • Page 25: Using The Toggle Help Button

    2. You will see a question mark ( ) appear next to each web page item that has been provided with a short description by the Help feature. See Figure 2-7. Figure 2-7. Toggle Help Button and Question Marks Question mark  appears next to the web page items Operations Guide 931960A CyberData Corporation...
  • Page 26 3. Move the mouse pointer to hover over the question mark ( ), and a short description of the web page item will appear. See Figure 2-8. Figure 2-8. Short Description Provided by the Help Feature A short description of the  Question mark web page item will appear Operations Guide 931960A CyberData Corporation...

  • Page 27: Log In To The Home Page

    Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.   CyberData’s VoIP Discovery Utility program is available at the following website address: https://www.cyberdata.net/pages/discovery...
  • Page 28 Installing the SIP IP66 Indoor/Outdoor Horn Log in to the Home Page Figure 2-9. Home Page CyberData SIP Outdoor Horn 457000001 v20.5.0 v20.5.0 v20.5.0 Operations Guide 931960A CyberData Corporation...
  • Page 29 Shows the current status of the Primary SIP Server. Backup Server 1 Shows the current status of Backup Server 1. Backup Server 2 Shows the current status of Backup Server 2. Nightringer Server Shows the current status of Nightringer Server. Import Settings Operations Guide 931960A CyberData Corporation...
  • Page 30 ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931960A CyberData Corporation...

  • Page 31: Configure The Device

    Installing the SIP IP66 Indoor/Outdoor Horn Configure the Device 2.3.5 Configure the Device 1. Click the Device menu button to open the Device page. See Figure 2-10. Figure 2-10. Device Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 32 Force 802.3AT Mode (NOT recommended) Enable this option if you are sure this speaker is connected to an 802.3AT power source, but it is not being detected correctly (not recommended). Operations Guide 931960A CyberData Corporation...
  • Page 33 First click on the Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931960A CyberData Corporation...

  • Page 34: Configure The Audio

    Installing the SIP IP66 Indoor/Outdoor Horn Configure the Audio 2.3.6 Configure the Audio 1. Click the Audio menu button to open the Audio page. See Figure 2-11. Figure 2-11. Audio Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 35 Audio Health Check Log Downloads the health check log. Removes the health check log. Click the Save button to save your configuration settings. Operations Guide 931960A CyberData Corporation...
  • Page 36 First click on the Toggle Help button, and you will see a question mark ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931960A CyberData Corporation...

  • Page 37: Configure The Network Parameters

    Installing the SIP IP66 Indoor/Outdoor Horn Configure the Network Parameters 2.3.7 Configure the Network Parameters 1. Click the Network menu button to open the Network page (Figure 2-12). Figure 2-12. Network Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 38 “trunking mode” for the VLAN tags to propagate. VLAN Priority (0-7) Specify the IEEE 802.1p VLAN priority level. Enter 1 digit. A value of 0 may cause the VLAN ID tag to be ignored. Operations Guide 931960A CyberData Corporation...
  • Page 39 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note You must click on the Save button and then the Reboot button for the changes to take effect. Operations Guide 931960A CyberData Corporation...

  • Page 40: Configure The Sip (Session Initiation Protocol) Parameters

    Configure the SIP (Session Initiation Protocol) Parameters 2.3.8 Configure the SIP (Session Initiation Protocol) Parameters 1. Click on the SIP menu button to open the SIP page (Figure 2-13). Figure 2-13. SIP Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 41 Specify the SIP User ID for the second backup SIP Server. This parameter becomes the user portion of the SIP-URI for the device's extension on the second backup SIP server. Enter up to 64 alphanumeric characters. Operations Guide 931960A CyberData Corporation...
  • Page 42 Enter the SIP server address as an IPv4 address in dotted decimal notation or a fully qualified domain name. This parameter also becomes the host portion of the SIP-URI for the device's Nightringer extension on the SIP server. This field can accept entries of up to 255 characters in length. Operations Guide 931960A CyberData Corporation...
  • Page 43 Automatically terminate an active call after a given delay in seconds. A value of 0 will disable this function. Enter up to 8 digits. Audio Codec Selection Codec Select desired codec (only one may be chosen). Operations Guide 931960A CyberData Corporation...
  • Page 44 Most installations should not enable asymmetric RTP. Jitter Buffer Specify the size of the jitter buffer (in milliseconds) used for SIP calls. Valid values are 50-1000. RTP Encryption (SRTP) When enabled, a SIP call's audio streams are encrypted using SRTP. Operations Guide 931960A CyberData Corporation...
  • Page 45 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Note For specific server configurations, go to the following website address: https://www.cyberdata.net/pages/connecting-to-ip-pbx-servers Operations Guide 931960A CyberData Corporation...

  • Page 46: Configure The Ssl Parameters

    Installing the SIP IP66 Indoor/Outdoor Horn Configure the SSL Parameters 2.3.9 Configure the SSL Parameters 1. Click SSL menu button to open the SSL page (Figure 2-14 Figure 2-15). Figure 2-14. SSL Configuration Page Figure 2-15. SSL Configuration Page Operations Guide 931960A CyberData Corporation...
  • Page 47 Installing the SIP IP66 Indoor/Outdoor Horn Configure the SSL Parameters Operations Guide 931960A CyberData Corporation...
  • Page 48 Note: When using a password, it must be entered and saved before importing the certificate. Download Cyberdata CA Right click and Save Link As... to get the Cyberdata CA used to sign this client certificate. Click the Save button to save your configuration settings.
  • Page 49 Info Window appears. See Section 2.3.9.1, "Certificate Info Window". Removes this certificate from the list of trusted certificates. After clicking on this button, the Remove Server Certificate Window appears. See Section 2.3.9.2, "Remove Server Certificate Window". Operations Guide 931960A CyberData Corporation...
  • Page 50 Installing the SIP IP66 Indoor/Outdoor Horn Configure the SSL Parameters 2.3.9.1 Certificate Info Window The Certificate Info Window provides details of the certificate. This window appears after clicking on the Info button. See Figure 2-16. Figure 2-16. Certificate Info Window Operations Guide 931960A CyberData Corporation...
  • Page 51 The Remove Server Certificate Window will ask if the user wants to remove a certificate from the list of trusted certificates. This window appears after clicking on the Remove button. See Figure 2- Figure 2-17. Remove Server Certificate Window Operations Guide 931960A CyberData Corporation...

  • Page 52: Configure The Multicast Parameters

    The Multicast page allows the device to join up to ten paging zones for receiving ulaw/alaw encoded RTP audio streams. A paging zone can consist of one or many CyberData multicast group-enabled products. There is no limit to how many speakers can be in a given paging zone. Each multicast group is defined by a multicast address and port number.
  • Page 53 Installing the SIP IP66 Indoor/Outdoor Horn Configure the Multicast Parameters 1. Click on the Multicast menu button to open the Multicast page. See Figure 2-18. Figure 2-18. Multicast Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 54 Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. 2.3.10.1 Assigning Priority The device will prioritize simultaneous audio streams according to their priority in the list. Operations Guide 931960A CyberData Corporation...
  • Page 55 SIP calls, multicast streams, ring tones, ringback tones, and nightring tones are all prioritized. Ringtones and Ringtones all play at the same priority level. This means that it is possible to have a nightring tone Nightringtones and a normal ringtone playing at the same time. Operations Guide 931960A CyberData Corporation...

  • Page 56: Configure The Audiofiles

    The Audiofiles page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the device. 1. Click on the Audiofiles menu button to open the Audiofiles page (Figure 2-19). Figure 2-19. Audiofiles Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 57 Installing the SIP IP66 Indoor/Outdoor Horn Configure the Audiofiles Page Parameters Figure 2-20. Audiofiles Page Operations Guide 931960A CyberData Corporation...
  • Page 58 '8' corresponds to the spoken word “eight.” '9' corresponds to the spoken word “nine.” Audio Test Corresponds to the message “This is the CyberData IP speaker test message...” (24 character limit). Corresponds to the spoken word “dot.” (24 character limit).
  • Page 59 The Delete button will delete any user uploaded audio and restore the stock audio file. The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre-existing user-uploaded audio files. Operations Guide 931960A CyberData Corporation...
  • Page 60 RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-21 through Figure 2-23. Figure 2-21. Audacity 1 Figure 2-22. Audacity 2 Operations Guide 931960A CyberData Corporation...
  • Page 61 Configure the Audiofiles Page Parameters When you export an audio file with Audacity, save the output as: • WAV (Microsoft) signed 16 bit PCM. Figure 2-23. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 931960A CyberData Corporation...

  • Page 62: Configure The Events Parameters

    The Events page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. 1. Click on the Events menu button to open the Events page (Figure 2-24). Figure 2-24. Events Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 63 ( ) appear next to some of the web page items. Move the mouse pointer to hover over a question mark to see a short description of a specific web page item. Operations Guide 931960A CyberData Corporation...
  • Page 64 Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 65 Installing the SIP IP66 Indoor/Outdoor Horn Configure the Events Parameters User-Agent: CyberData/1.0.0 Content-Length: 205 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>CALL_TERMINATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'>...
  • Page 66 Installing the SIP IP66 Indoor/Outdoor Horn Configure the Events Parameters User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'> <event>RELAY_DEACTIVATED</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData Device' MAC='0020f70015b6'>...

  • Page 67: Configure The Autoprovisioning Parameters

    By default, the device will try to set up its configuration with autoprovisioning. 1. Click the Autoprov menu button to open the Autoprovisioning page. See Figure 2-25. Figure 2-25. Autoprovisioning Page CyberData SIP Outdoor Horn Operations Guide 931960A CyberData Corporation...
  • Page 68 Enter up to 6 digits. A value of 0 will disable this option. Note: To use the auto update options, make sure that the Enable NTP setting on the Device Page page is selected (see Table 2-6). Operations Guide 931960A CyberData Corporation...
  • Page 69 1. Option 43 - a FQDN or an IP address to an http server 2. Option 72 - an IP address to an http server 3. Option 150 - an IP address to a tftp server Operations Guide 931960A CyberData Corporation...
  • Page 70 Autoprovisioning files can contain the whole configuration or a subset of this file. The first autoprovisioning file can also contain links to other autoprovisioning files. The <MiscSettings> section contains some examples of additional autoprovisioning files: <MiscSettings> <DeviceName>CyberData Device</DeviceName> <!-- <AutoprovFile>common.xml</AutoprovFile>--> <!-- <AutoprovFile>sip_reg[macaddress].xml</AutoprovFile>-->...
  • Page 71 When one of these options is set, the Files after Boot device will download its autoprovisioning files again, and if it finds any differences from the files it downloaded on boot, it will force a reboot and reconfigure. Operations Guide 931960A CyberData Corporation...
  • Page 72 The autoprovisioning filename is set to “cyberdata/” On boot, the device will try to download: https://www.example.com/cyberdata/0020f7123456.xml ...and if this fails: https://www.example.com/cyberdata/000000cd.xml Audio files and firmware files will also add “cyberdata” to the URL before downloading. Operations Guide 931960A CyberData Corporation...
  • Page 73 In this way, a generic autoprovisioning file can specify unique firmware for a range of products. The list of valid product strings: <ProductString>CallButton31</ProductString> <ProductString>EmergencyIntercom31</ProductString> <ProductString>EmergencyIntercom31SW</ProductString> <ProductString>IndoorIntercom31</ProductString> <ProductString>IndoorIntercom31SW</ProductString> <ProductString>IndoorKeypad31</ProductString> <ProductString>IndoorKeypad31SW</ProductString> <ProductString>OfficeRinger31</ProductString> <ProductString>OfficeRinger31SW</ProductString> <ProductString>OutdoorIntercom31</ProductString> <ProductString>OutdoorIntercom31SW</ProductString> <ProductString>OutdoorKeypad31</ProductString> <ProductString>OutdoorKeypad31SW</ProductString> <ProductString>Strobe31</ProductString> <ProductString>Strobe31SW</ProductString> Operations Guide 931960A CyberData Corporation...
  • Page 74 000000cd.xml. This file exists, and Device1 parses the three elements. 1. Device1 changes its device name to CyberData Autoprovisioned. 2. Device1 finds an AutoprovFile element containing the filename sip_common.xml. The device downloads sip_common.xml from “https://autoprovtest.server.net,”...
  • Page 75 TFTP server at 10.0.1.3. and imports these settings. The device name is set to CyberData Autoprovisioned, the SIP server is set to 10.0.0.253, and the port is set to 5060. Device2 does the same except it downloads 0020f7020002.xml on boot and imports these values instead.
  • Page 76 You can force a change to the audio files on the board by clicking Restore Default on the Audio page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 931960A CyberData Corporation...
  • Page 77 "https://test.cyberdata.net"; # OPTION 66 option option-150 10.0.0.252; # OPTION 150 # These two lines are needed for option 43 vendor-option-space VendorInfo; # OPTION 43 option VendorInfo.text "https://test.cyberdata.net"; # OPTION 43 range 10.10.0.1 10.10.2.1; } Operations Guide 931960A CyberData Corporation...
  • Page 78 4. At this point, you can open and edit the autoprovisioning template to change the configuration settings in the template for the unit. 5. You can then upload the autoprovisioning file to a TFTP or HTTP server where the file can be loaded onto other devices. Operations Guide 931960A CyberData Corporation...

  • Page 79: Upgrade The Firmware

    Configure the Autoprovisioning Parameters 2.4 Upgrade the Firmware Note CyberData strongly recommends that you do not upgrade the firmware when the device is likely to be in use. To upgrade the firmware of your device: 1. Download the latest firmware file from the Downloads tab at the following webpage: https://www.cyberdata.net/products/011457...
  • Page 80 10. When the process is complete, you will see the words SWUPDATE Successful under Status Messages. 11. The device will reboot automatically. 12. The Home page will display the version number of the firmware and indicate which boot partition is active. Operations Guide 931960A CyberData Corporation...
  • Page 81 Note: This button only appears after the user has selected a firmware file. Upload progress Status bar indicates the progress in uploading the file. Upload Post Processing Status bar indicates the progress of the software installation. Status Messages Messages relevant to the firmware update process appear here. Operations Guide 931960A CyberData Corporation...

  • Page 82: Reboot The Device

    Section 2.3.4, "Log in to the Home Page". 1. Click on the Reboot button on the Home page (Figure 2-29). A normal restart will occur. Figure 2-29. Home Page CyberData SIP Outdoor Horn 457000001 v20.5.0 v20.5.0 v20.5.0 Reboot Operations Guide...

  • Page 83: Command Interface Post Commands

    /dev/null --no-check-certificate "https://10.10.1.247/command" -- post-data "request=test_audio" Swap Boot partitions wget --user admin --password admin --auth-no-challenge --no- check-certificate --quiet -O /dev/null "https://10.10.1.81/command" -- post-data "request=swap_boot_partition" a.Type and enter all of each http POST command on one line. Operations Guide 931960A CyberData Corporation...

  • Page 84: Appendix A Mounting The Sip Ip66 Indoor/Outdoor Horn

    Appendix A: Mounting the SIP IP66 Indoor/Outdoor Horn A.1 Dimensions Figure A-1. Dimensions 14.404 [366] Dimensions are in Inches [Millimeters] 6.730 [171] Ø0.433 [Ø11] (3 Places) 10.630 [270] Status LED RTFM 2.008 [51] 4.016 [102] Operations Guide 931960A CyberData Corporation...

  • Page 85: Appendix B Troubleshooting/Technical Support

    To see a list of frequently asked questions for your product, click on the FAQs tab at the following webpage: https://www.cyberdata.net/products/011457 B.2 Documentation The documentation for this product is released in an English language version only. To download PDF copies of CyberData product documentation, click on the Downloads tab at the following webpage: https://www.cyberdata.net/products/011457 Operations Guide 931960A...

  • Page 86: Contact Information

    Support form at the following website: https://support.cyberdata.net/ The Support Form initiates a ticket which CyberData uses for tracking customer requests. Most importantly, the Support Form tells us which PBX system and software version that you are using, the make and model of the switch, and other important information. This information is essential for troubleshooting.
