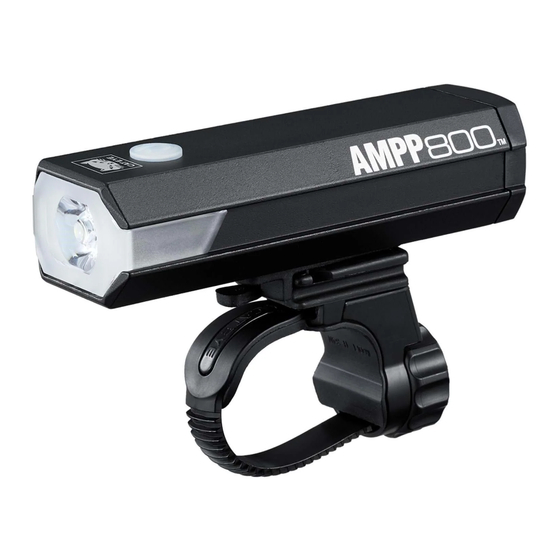

Cateye AMPP 800 Manual

RECHARGEABLE HEADLIGHT
HL-EL088RC HELMET MOUNT
Manual
Before using the light, read this manual
thoroughly and keep it for future
reference.
Design Pat. Pending
Copyright© 2020 CATEYE Co., Ltd.
2
HLEL088RC-200703
Light unit Helmet mount
GP bracket USB cable
( MICRO USB )
Before Initial Use
This unit is shipped with small charge to check the
light. Be sure to charge it before use, according to
the instructions "HOW TO CHARGE" and
"Cautions on recharging".
WARNING!!!
• Be sure to direct the light beam downward so
approaching car or pedestrian are not dazzled.
• Before your trip, please make sure the light is firmly
mounted to the bracket and it lights up.
• Always pay attention to the remaining battery power by
checking the indicator periodically while using the light.
CAUTION!
• Keep the light away from children.
• In preparation for unexpected shutoff, we recommend
you carry a spare light.
• This device is rated IPX4 based on JIS C0920. Do not
immerse the device in water. Doing so may cause a
malfunction. Wipe off any moisture after using the
device in rainy weather.
• If the light unit or parts become dirty with mud, etc.,
clean with a soft cloth which is moistened with mild
soap. Never apply paint thinner, benzine or alcohol;
damage will result.
LITHIUM-ION BATTERIES
Cautions on recharging
• Avoid charging in direct sunlight or in a vehicle parked
under direct sunlight, and make sure to charge only
when the ambient temperature is between 41°F and
104 °F (5 and 40°C).
• Before charging, be sure that no dust or other foreign
objects are attached to the USB plug.
• Do not subject the light to vibrations while charging.
• Once charging is complete, be sure to disconnect the
USB plug.
Cautions in use
• Charging, discharging, and storing in high
temperatures will cause the rechargeable battery to
deteriorate faster.
Do not place the light inside a vehicle or near a heater.
• If the illumination time is significantly reduced even
after proper charging, the rechargeable battery may
be nearing the end of its service life. Dispose of the
battery as described in "Cautions for disposal".
Cautions on storage
Cool and dry storage is recommended. For long period
storage, it is important to charge the battery 30 minutes
every 6 months.
Cautions for dispose
When disposing of the light unit, remove the internal
rechargeable battery and dispose of it according to
local regulations.
1
ENG
HOW TO CHARGE
1
Charge jack cover
1. Connect the light unit to your PC or a commercial USB battery charger using the USB cable. (Fig 1
The indicator turns on and charging starts.
* When your PC is in sleep state, the unit cannot be charged.
* Use a USB battery charger of 500 mAh (USB2.0) or more. The light can be fast-charged with a high
capacity USB battery charger.
2. Once charging is complete, be sure to disconnect the USB plug.
* Charging and lighting times are approximate values, and will vary by environmental and use conditions.
2
HOW TO MOUNT TO A HELMET
1
*1
1. Securely fasten the helmet mount to the front part of the helmet, wrapping the bracket strap through the air
vents on the helmet. (Fig 2
*1 The bracket strap can be attached either vertically or horizontally.
2. Mount the light unit onto the helmet mount. (
3. Wear the helmet and adjust the angle of the beam. (
4. To remove the light unit, pull out it forward while pressing down on the release button (
CAUTION!:
Check the screw on the bracket periodically,and use it without any loosing. (*2)
3
SWITCH OPERATION
OFF
Press
and hold
Click
High
*3 When turning the light on, it lights up in the mode that was used last time. (Mode memory function)
Remaining battery capacity:
When the switch is illuminated
in red, there is little remaining
battery power.
2
USB cable
To PC or USB battery charger
*2
Bracket strap
)
1
)
2
)
3
Switch (Indicator)
ON
Press and hold
*3
High
Double-click
Flashing
*3
Indicator
Remaining
battery power
Indicator
Steady
red light
Off
Standard charging time
3 - 7
h
Approx.
Light unit
2
Remove
3
).
4
Middle
Click
Daytime
HyperConstant
Constant
Constant
blue light yellow light
Approx. Approx.
50 − 30
50
or more
% %
Charging
Charging is
completed
3h (2A) -
7h (0.5A)
– ).
1 2
Release
button
4
Low
Constant
red light
Less than
30
Approx. %
