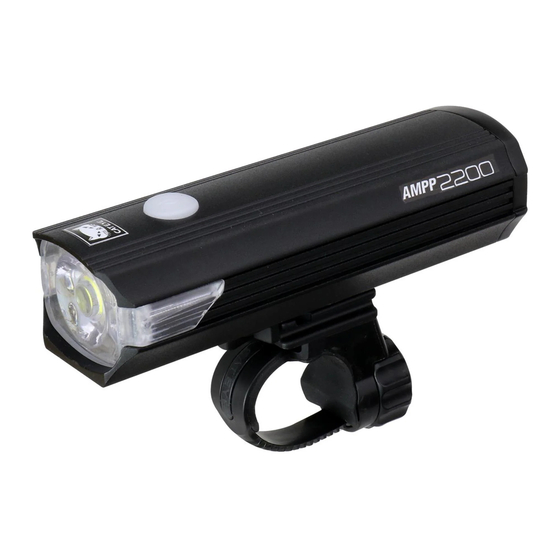

Cateye AMPP2200 Quick Start Manual

RECHARGEABLE HEADLIGHT
MODEL : HL-EL2200RC
Before using the product, be sure to read this manual thoroughly and keep it
available for future reference. If a child uses it, the child's guardian must
read the manual and explain the precautions for use to the
child. This product is developed assuming use by bicycle.
Do not use the product in any way other than as described
in this manual.
Design Pat. Pending
Copyright© 2024 CATEYE Co., Ltd.
1
HLEL2200RC-240228
Light unit
CATEYE will continue to contribute to society by creating
new values in "Safety, " "Health, " and "Environment".
CATEYE supports the Sustainable Development Goals
movement proposed by the United Nations.
ECO FRIENDLY
( www.cateye.com/intl/company/sdgs/ )
WARNING!!!
(Risk of death; Prevention of accidents)
• Do not look directly at the light source. In addition, when mounting
the light unit, ensure that the light would not dazzle other road users.
• To prevent accidents and to ensure safe riding, make sure the
light is securely attached to the bracket and it is functioning
properly without being unobstructed before the ride.
• Always pay attention to the remaining battery power by
checking the indicator periodically while using the light.
• Do not disassemble or modify the light or any of the included items.
CAUTION!
(Prevention of injury, damage, or property damage)
• Be sure to tighten the dial by hand. When you tighten it too
hard with a tool, the screw thread may be stripped.
• Check the dial and screw on the bracket periodically, and use
them without any loosening.
• Operating the light while riding is dangerous. Always ride safely.
• Do not use Ultra Boost or High mode on public roads.
• Note that the light becomes hot while illuminated. Do not
block the lens or cover the light.
• Due to the variability of LEDs, the color and brightness may
differ even between devices with the same model number.
• Keep device out of the reach of children.
• Carrying a spare headlight is recommended in case the battery runs out.
• When used with a cyclocomputer, attach the headlight as far away
from the cyclocomputer as possible, as it may affect measurement.
• This device is rated IPX4 based on JIS C0920. Do not immerse
the device in water. Doing so may cause a malfunction. Wipe off
any moisture after using the device in rainy weather.
• Do not subject the light to strong vibrations, impacts, or
excessive force. Discontinue use if any abnormality occurs.
• Do not charge or use the battery at any voltage or polarity
other than that specified. Do not short-circuit the battery.
• Do not drop the light into a fire or heat the light.
• If the light unit or parts become dirty with mud, etc., clean
with a soft cloth moistened with mild soap. Never apply paint
thinner, benzine or alcohol; damage will result.
LITHIUM-ION BATTERIES
Recharge the battery for first time use or after long period of storage :
The voltage of the battery may drop due to self-discharge
during long period of storage.
• Always fully charge the battery before use.
• If the device will not be used for a long period of time, store
it in a location that is not too hot or too humid.
• Charge the battery for about 30 minutes every 6 months.
Cautions for charging and usage :
• Charging, discharging, and storing in high temperatures will cause
the rechargeable battery to deteriorate faster. Do not place the light
inside a vehicle or near a heater. Make sure to charge only when the
ambient temperature is between 5 and 40°C.
• Please be sure that no dust or other foreign objects are
attached to the plug of the USB cable before charging.
• Do not apply a load to the connector port by hanging the
light unit during charging.
• Do not subject the light to vibrations while charging.
• Once charging is completed, be sure to disconnect the USB
cable from the charging port.
• After charging is complete, securely attach the charging port
cover to ensure waterproofing before riding.
• Charging and lighting times are approximate values, and will
vary by environmental and user conditions.
• If the illumination time is significantly reduced
even after proper charging, the rechargeable
battery may be nearing the end of its service life.
Cautions for dispose :
When disposing the light unit, please do so in
accordance with your local regulations.
Required Items
Please prepare a USB cable (Type-C) that can be used for charging (sold separately) before using this product.
Before using the product, refer to the "LITHIUM-ION BATTERIES" section
and charge the battery.
Switch (Indicator)
Bracket
FlexTight™
( H-34N : )
*2
Dial
The USB cable is not included in the
package because CATEYE is
committed to making environmentally
friendly and resource-saving products.
Press and hold
*1 The indicator will flash after lighting up red when Lock mode is released. After the indicator stops flashing
and Lock mode is disabled, Enduro mode will be enabled.
*2 While enabling Lock mode, the indicator will flash red and the light will flash temporarily. After the light
stops flashing, Lock mode will be enabled.
*3 When turning the light on, it lights up in the mode that was used last time. (Mode memory function)
*4 A protection circuit will be activated if the light unit becomes too hot, and the brightness of the light will be reduced.
This is not a malfunction. The light will return to the original brightness when the temperature cools to a safe level.
How to mount to a bicycle
Φ 22 -35 mm
Standard accessories
5338827N
Bracket
(
H-34N
FlexTight™)
:
Use only genuine components to prevent accidents and malfunctions.
* Use a 2 A or higher USB battery charger. The unit may not charge properly if less than 2 A.
* To ensure safety, do not charge the battery if the light unit is hot.
Be sure to release Lock mode before use.
LOCK LOCK
This device is equipped with a lock mode to prevent accidental operation. Lock mode is
MODE MODE
enabled by default. To release Lock mode, press and hold the switch for about 8 seconds.
Press and hold
8
s
If the indicator
lights up red when
the switch is
clicked, Lock mode
is enabled.
OFF
Press and hold
Double-click
8
s
*4
Double-click
Click
Ultra Boost Ultra Boost
2
1
To adjust the angle, loosen the dial
or the screw to the point that the
bracket moves slightly, make the
adjustment, and then tighten the
screw to fix the light unit in place.
Better
Optional accessories
5340910 5342550
Bracket Spacer USB cable
Type-A ↔ Type-C
( ) (
H-37AL
Charging time
Approx.
4h
2A
( )
If the indicator turns red, charge the product as soon as possible.
Constant blue
light
Remaining Approx.
battery power 50% or more
*3
ON
*1
Enduro Enduro
Click
Low Low
*3
Screw
(Horizontal adjustment)
Dial
(Vertical adjustment)
5341831N 5342440
Bracket Bracket
) (Helmet mount) (
CFB-100
:
Constant
Charging
red light
Charging is
Off
completed
Constant Constant red
orange light light
Approx. Less than
50 - 20% Approx. 20%
Daytime Daytime Flashing Flashing
HyperConstant HyperConstant
*4
Middle Middle High High
Mounting
Insert the
product until it
clicks into place.
Removing
Press the release
tab toward the
light unit and pull
to remove.
When mounting the light When mounting the light
unit, ensure that the light unit, ensure that the light
would not dazzle other would not dazzle other
road users. road users.
1604110
Bracket
(
OF-200
Center fork) Out-front 2)
:
